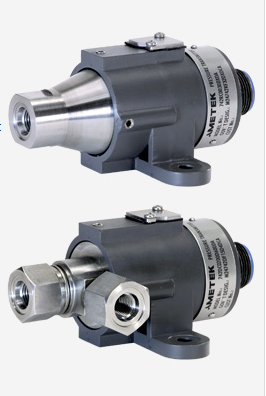

De Model 742R Gage Pressure Version: The 742R is available in gauge, compound, vacuum and absolute ranges from 30”Hg vacuum to 0-10,000 psi. Model 742D Differential Pressure Version: The 742D is available in differential ranges from 10 inches of water to 600 psi. Direct Replacement The 742D transducer is directly interchangeable with existing pressure transducers designed to MIL-T-24742. The mounting is designed to match the footprint of existing transducers for quick and easy installation. Minimal Maintenance Calibration is quick and easy with the non-interacting zero and span adjustments. |
Specifications
Functional Specifications
in accordance with MIL-T-24742 (SH)
Applications
steam, sea water, fl ue gas, ammonia, oxygen, other gases, fresh water, condensate, nitrogen, inert gases and liquid hydrocarbons
Output
4-20 mADC, 0-5 VDC
Power Supply
28 VDC ±4.5 VDC with reverse polarity protection
Loop Resistance
0 to 250 ohms
Zero/Span Adjustments
±5% full scale output
Temperature Limits
Compensated: 0°C to 65°C (32°F to 149°F)
Overpressure
200% of range or maximum rated line pressure (whichever is greater)
Humidity
0 to RH
Volumetric Displacement
less than 0.002 cc
Weight
18 oz. (0.51 kg)
