斜探头AM6S-3X4-45

发布时间：2016-03-28

上海如庆电子科技有限公司
电话：


传真：
张  华：   QQ:1329191368
吕女士：   QQ:953727603
网址：www.17world.cn
      www.rq17.cn
      www.17ndt.com
      www.rq1718.cn

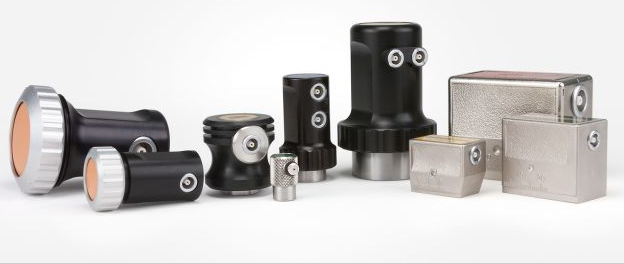

AM6S-3X4-45|AM6S-3X4-45斜探头|奥林巴斯AM6S-3X4-45斜探头|奥林巴斯OLYMPUS/AM6S-3X4-45斜探头|上海如庆电子科技有限公司现货供应，



Freq.
MHz 		Nominal Element Size mm Angle
(°) 		Near Field in steel mm Transducer Part # Typical Bandwidth Connector (%) Connector
Location 		Outline #
1 20 x 22 45 45 AM1R-20X22-45 55 LEMO® 01 Right Angle 9
20 x 22 60 45 AM1R-20X22-60 55 LEMO 01 Right Angle 9
20 x 22 70 45 AM1R-20X22-70 55 LEMO 01 Right Angle 9
2 8 x 9 45 15 AM2R-8X9-45 40 LEMO 00 Right Angle 6
8 x 9 45 15 AM2S-8X9-45 40 LEMO 00 Straight 7
8 x 9 60 15 AM2R-8X9-60 40 LEMO 00 Right Angle 6
8 x 9 60 15 AM2S-8X9-60 40 LEMO 00 Straight 7
8 x 9 70 15 AM2R-8X9-70 40 LEMO 00 Right Angle 6
8 x 9 70 15 AM2S-8X9-70 40 LEMO 00 Straight 7
14 x 14 45 39 AM2R-14X14-45 45 LEMO 00 Right Angle 8
14 x 14 60 39 AM2R-14X14-60 45 LEMO 00 Right Angle 8
14 x 14 70 39 AM2R-14X14-70 45 LEMO 00 Right Angle 8
20 x 22 38 90 AM2R-20X22-38 40 LEMO 01 Right Angle 9
20 x 22 45 90 AM2R-20X22-45 40 LEMO 01 Right Angle 9
20 x 22 60 90 AM2R-20X22-60 40 LEMO 01 Right Angle 9
20 x 22 70 90 AM2R-20X22-70 40 LEMO 01 Right Angle 9
4 8 x 9 38 30 AM4R-8X9-38 40 LEMO 00 Right Angle 6
8 x 9 45 30 AM4R-8X9-45 40 LEMO 00 Right Angle 6
8 x 9 45 30 AM4S-8X9-45 40 LEMO 00 Straight 7
8 x 9 60 30 AM4R-8X9-60 40 LEMO 00 Right Angle 6
8 x 9 60 30 AM4S-8X9-60 40 LEMO 00 Straight 7
8 x 9 70 30 AM4R-8X9-70 40 LEMO 00 Right Angle 6
8 x 9 70 30 AM4S-8X9-70 40 LEMO 00 Straight 7
20 x 22 45 180 AM4R-20X22-45 40 LEMO 01 Right Angle 9
20 x 22 60 180 AM4R-20X22-60 40 LEMO 01 Right Angle 9
20 x 22 70 180 AM4R-20X22-70 40 LEMO 01 Right Angle 9
5 14 x 14 45 88 AM5R-14X14-45 40 LEMO 00 Right Angle 7
14 x 14 60 88 AM5R-14X14-60 40 LEMO 00 Right Angle 7
14 x 14 70 88 AM5R-14X14-70 40 LEMO 00 Right Angle 7
6 3 x 4 45 N/A AM6S-3X4-45 38 Microdot® Straight 10
3 x 4 60 N/A AM6S-3X4-60 38 Microdot Straight 10
3 x 4 70 N/A AM6S-3X4-70 38 Microdot Straight 10
DGS diagrams are included with all Integral Angle Beam Transducers except AM6S-3x4-45, AM6S-3x4-60 and AM6S-3x4-45.

6

7

8

9

10

Dual Element Transducers

Freq
MHz 		Nominal Element Size
mm 		Transducer Part # Focus
in Steel
mm 		Typical Bandwidth
(%) 		Connector Connector
Location 		Outline #
2 7 x 18 DL2R-7X18 15 50 LEMO 00 (2) Right Angle 2
7 x 18 DL2R-7X18-0 30 50 LEMO 00 (2) Right Angle 2
11 DL2R-11 8 48 LEMO 00 (2) Right Angle 1
4 3.5 x 10 DL4R-3.5X10 10 45 LEMO 00 (2) Right Angle 1
6 x 20 DL4R-6X20 12 48 LEMO 00 (2) Right Angle 2
6 x 20 DL4R-6X20-0 25 48 LEMO 00 (2) Right Angle 2


DL2R-7X18 (left image), DL4R-3.5X10 (right image)



DGS diagrams are included with all Dual Element Transducers.

1

2

Protected Face Transducers

PF2R-10 (left image), PF4R-24 (right image)
Freq. MHz Nominal Element Size mm Transducer Part # Near Field mm Typical Bandwidth (%) Connector Connector
Location 		Outline #
1 24 PF1R-24 23 45 LEMO 1 Right Angle 12
24 PF1S-24 23 45 LEMO 1 Straight 11
2 10 PF2R-10 7.2 45 LEMO 00 Right Angle 13
24 PF2R-24 45 45 LEMO 1 Right Angle 12
24 PF2S-24 45 45 LEMO 1 Straight 11
4 10 PF4R-10 15.6 35 LEMO 00 Right Angle 13
24 PF4R-24 91 30 LEMO 1 Right Angle 12
24 PF4S-24 91 30 LEMO 1 Straight 11
DGS diagrams are included with all Protected Face Transducers.

11

12

Atlast Transducer 32 mm

13

Protective Membrane Accessories

PM-24-12 (left image), MRN-24 (right image)
Deion Fits With Nominal Element Size Part Number
mm
Set of 12 Membranes 10 PM-10-12
Set of 12 Membranes 24 PM-24-12
Retaining Ring 10 MRN-10
Retaining Ring 24 MRN-24

Contact Transducers

Freq.
MHz 		Nominal
Element
Size mm 		Transducer Part # Near
Field mm 		Typical
Bandwidth (%) 		Connector Connector
Location 		Outline #
2 10 CN2R-10 7.2 85 LEMO® 00 Right Angle 3
24 CN2R-24 45 85 LEMO 00 Right Angle 4
4 10 CN4R-10 15.6 85 LEMO 00 Right Angle 3
24 CN4R-24 91 85 LEMO 00 Right Angle 4
5 5 CN5R-5 5 60 Microdot Right Angle 5
10 5 CN10R-5 10 60 Microdot Right Angle 5


CN2R-24

DGS diagrams are currently not available for Contact Transducers.

3

4

5

Also available is the AVG/DGS Binder, which contains a DGS diagram and specification sheet for each 8x9 angle beam, all dual element, and all protective face transducers. These diagrams are printed on splash and tear proof er and housed in a six ring binder.

AM1R-20X22-45
English - 0.7 MB

AM1R-20X22-60
English - 0.7 MB

AM1R-20X22-70
English - 0.7 MB

AM2R-14X14-45
English - 0.2 MB

AM2R-14X14-60
English - 0.1 MB

AM2R-14X14-70
English - 0.2 MB

AM2R-20X22-38
English - 0.7 MB

AM2R-20X22-45
English - 0.7 MB

AM2R-20X22-60
English - 0.7 MB

AM2R-20X22-70
English - 0.7 MB

AM2R-8X9-45
English - 0.2 MB

AM2R-8X9-60
English - 0.2 MB

AM2R-8X9-70
English - 0.2 MB

AM4R-20X22-45
English - 0.7 MB

AM4R-20X22-60
English - 0.7 MB

AM4R-20X22-70
English - 0.7 MB

AM4R-8X9-38
English - 0.7 MB

AM4R-8X9-45
English - 0.2 MB

AM4R-8X9-60
English - 0.2 MB

AM4R-8X9-70
English - 0.2 MB

AM5R-14X14-45
English - 0.2 MB

AM5R-14X14-60
English - 0.1 MB

AM5R-14X14-70
English - 0.2 MB

DL10R-5
English - 0.7 MB

DL2R-11
English - 0.7 MB

DL2R-7X18
English - 0.1 MB

DL2R-7X18-0
English - 0.1 MB

DL4R-3.5X10
English - 0.1 MB

DL4R-6X20
English - 0.1 MB

DL4R-6X20-0
English - 0.1 MB

DL4R-8
English - 0.7 MB

PF1R-24
English - 0.1 MB

PF2R-10
English - 0.1 MB

PF2R-24
English - 0.1 MB

PF4R-10
English - 0.1 MB

PF4R-24
English - 0.1 MB

上海如庆电子科技有限公司
电话：


传真：
张  华：   QQ:1329191368
吕女士：   QQ:953727603
网址：www.17world.cn
      www.rq17.cn
      www.17ndt.com

      www.rq1718.cn

S12W1|S12W1直探头|S12W1单晶直探头|上海如庆电子科技有限公司现货供应！！！

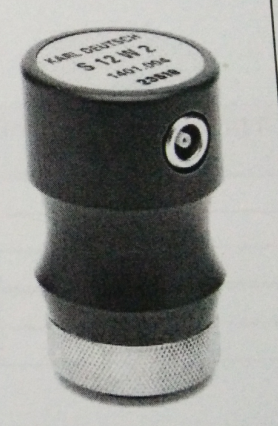

S12W2|S12W2直探头|S12W2单晶直探头|上海如庆电子科技有限公司现货供应！！！
