XUM2APCNL2-深圳市创丰仪器仪表有限公司

XUM2APCNL2现货销售,XUM2APCNL2报价,XUM2APCNL2的产品介绍：

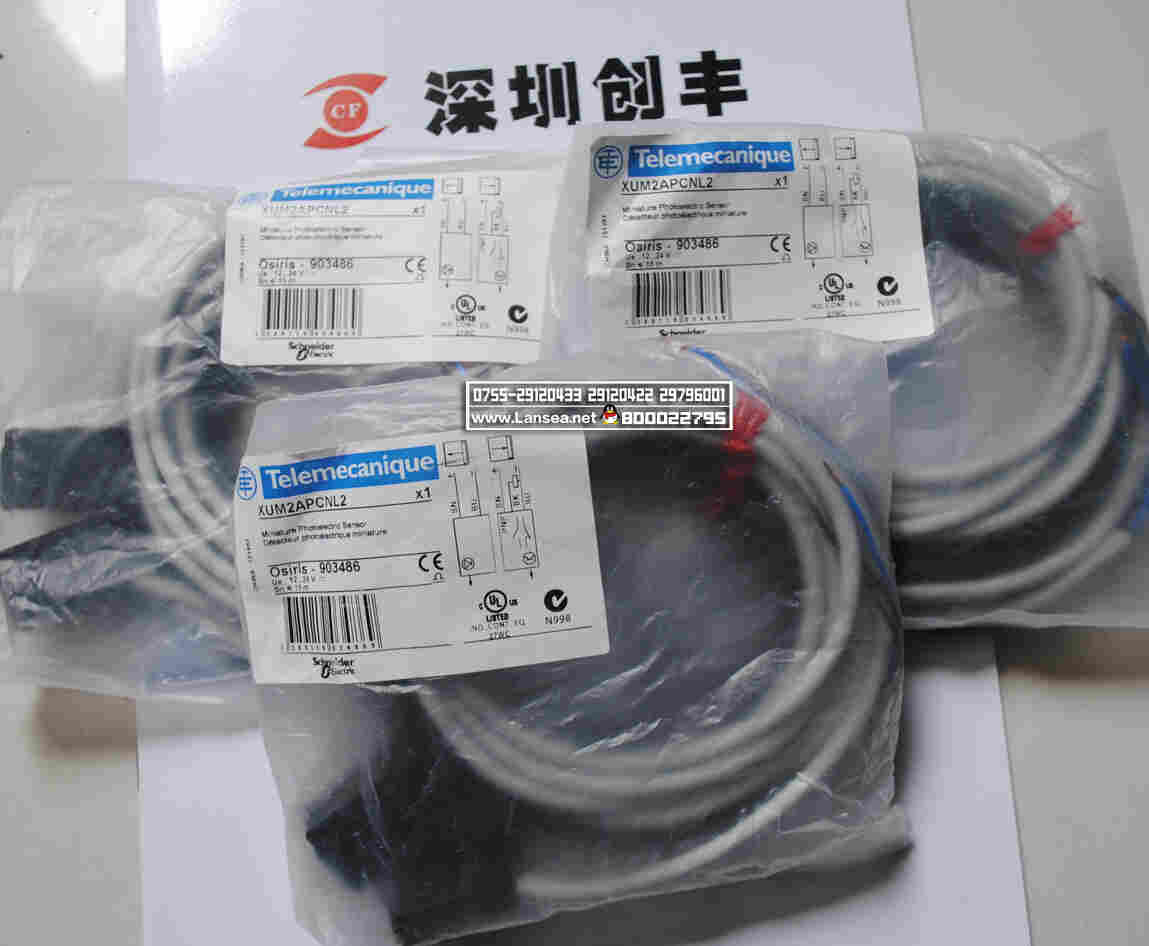

telemecanique法国施耐德光电开关XUM2APCNL2

主营:日本山武azbil日本基恩士keyence日本神视松下Panasonic日本竹中TAKEX，日本欧姆龙OMRON
日本奥普士OPTEX日本北阳HOKUYO，日本东邦T0HO，日本富士FUJI，日本三洋SANYO
美国霍尼韦尔honeywell美国邦纳Banner台湾阳明fotek台湾茂仁MOUJEN，台湾瑞科RIKO
台湾天得tend，台湾开放KFPS台湾士研ANV安良，KGN光纤，德国施克SICK，巴鲁夫BALLUFF
法国施耐德瑞士佳乐，科瑞CONTRINEX，韩国奥托尼克斯AUTONICS BKC温控器安全光幕热电偶

深圳市创丰仪器仪表有限公司
联系人:蔡小姐
电话:
传真:（企业QQ:800022795)（邮箱：2639457983@qq.com）

开票地址:深圳市宝安九区澎柏白金酒店商务大厦1001-1002室

全新原装施耐德光电开关XUM9APCNL2

Range of product OsiSense XU

Series name General purpose single mode

Electronic sensor type Photo-electric sensor

Sensor name XUM

Sensor design Miniature

Detection system Polarised reflex

Material Plastic

Type of output signal Discrete

Supply circuit type DC

Wiring technique 3-wire

Discrete output type NPN

Discrete output function 1 NO or 1 NC programmable

Electrical connection Cable

Cable length 2 m

Product specific application -

Emission Red polarised reflex

[Sn] nominal sensing distance 5 m polarised reflex need reflector XUZC50

Enclosure material PBT

Lens material PMMA

Output type Solid state

Wire insulation material PVC

Status LED 1 LED (orange) for output state
1 LED (green) for instability

[Us] rated supply voltage 12...24 V DC

Switching capacity in mA <= 100 mA (overload and short-circuit protection)

Switching frequency <= 1000 Hz

Voltage drop <= 3 V (closed state)

Current consumption 13 mA (no-load)

Delay first up < 100 ms

Delay response 0.5 ms

Delay recovery 0.5 ms

Setting-up Sensitivity adjustment by potentiometer

Depth 20 mm

Height 34 mm

Width 11 mm

Product weight 0.063 kg

Product certifications CE
CTick
CULus

Ambient air temperature for operation -30...60 °C

Ambient air temperature for storage -40...70 °C

Vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

IP degree of protection IP65 conforming to IEC 60529
IP67 conforming to IEC 60529

Range of product	OsiSense XU
Series name	General purpose single mode
Electronic sensor type	Photo-electric sensor
Sensor name	XUM
Sensor design	Miniature
Detection system	Polarised reflex
Material	Plastic
Type of output signal	Discrete
Supply circuit type	DC
Wiring technique	3-wire
Discrete output type	NPN
Discrete output function	1 NO or 1 NC programmable
Electrical connection	Cable
Cable length	2 m
Product specific application	-
Emission	Red polarised reflex
[Sn] nominal sensing distance	5 m polarised reflex need reflector XUZC50

Enclosure material	PBT
Lens material	PMMA
Output type	Solid state
Wire insulation material	PVC
Status LED	1 LED (orange) for output state 1 LED (green) for instability
[Us] rated supply voltage	12...24 V DC
Switching capacity in mA	<= 100 mA (overload and short-circuit protection)
Switching frequency	<= 1000 Hz
Voltage drop	<= 3 V (closed state)
Current consumption	13 mA (no-load)
Delay first up	< 100 ms
Delay response	0.5 ms
Delay recovery	0.5 ms
Setting-up	Sensitivity adjustment by potentiometer
Depth	20 mm
Height	34 mm
Width	11 mm
Product weight	0.063 kg

Product certifications	CE CTick CULus
Ambient air temperature for operation	-30...60 °C
Ambient air temperature for storage	-40...70 °C
Vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 conforming to IEC 60529 IP67 conforming to IEC 60529

XUM2APCNL2

发布时间：2016-06-16
