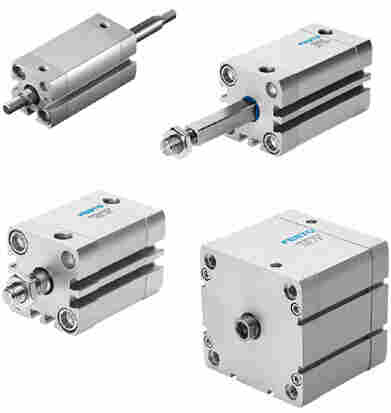

FESTO气缸安装方式指导,ADN-100-50-I-P-A-S2
设计符合现代标准，和标准气缸气缸相比，体积缩小50%。
采用模块化结构，因此派生型号多，无论何种应用必能找到一款合适的产品。
在终端位置增设有缓冲环，可在速度和频率较高情况下吸收多余能量。
通过磁场进行位置感测，无需接触
前后端盖都采用内螺纹，方便气缸的安装，可以直接安装，也可通过安装附件进行安装。
安装附件品种丰富，能满足各种安装要求。
气缸的三个侧面具有双槽，可用于固定接近式传感器。
接近式传感器被埋设在缸筒槽中，借助于安装附件可在不改变位置的情况下进行更换。
具有精密活塞杆螺纹的气缸在供货时还包括了一个配套的活塞杆螺母。
缸径为32 mm以上的气缸可以进行修理，并对易损件进行更换。
缸径32 到 125 mm的气缸其气孔样式符合 ISO 15552。
ADN-100-50-I-P-A-S2
ADN-100-10-I-P-A
ADN-100-125-A-P-A
ADN-100-80-A-P-A
ADN-100-100-A-P-A
DFSP-20-15-PS-PA
DFSP-50-30-PS-PA
