US GaugeSta-Kool Cooling Element
Deion
Extreme process temperature reduces the accuracy, reliability, durability, and the overall life of a pressure gauge. The US GaugeSta-Kool Cooling Element was designed for pressure measurements with this extremely high temperature environment in mind. Under actual laboratory testing condition, in still room air, the 316L stainless steel Sta-Kool™ cooling element was able to reduce 400°F (204°C) liquid process temperature
down to 100°F (38°C) at the active portion of the Bourdon tube (see chart 1 on next page).
US GaugeSta-Kool Cooling Element, capillary or diaphragm seal to protect pressure gauges, pressure transmitters or pressure switches (not supplied by USG) from process temperatures exceeding 190ºF. Anything exceeding 190ºF will start to degrade weld joints and electronics. The Sta-Kool™ can be either threaded or welded (to eliminate a potential leak path) to any pressure gauge with 1/2" NPT male connection made out of
compatible material.
Furthermore, the Sta-Kool™ cooling element can be attached in between a pressure gauge and diaphragm seal for the most comprehensive process measurement protection possible, protecting the instrument from pulsation and temperature extremes.
US GaugeSta-Kool Cooling Element

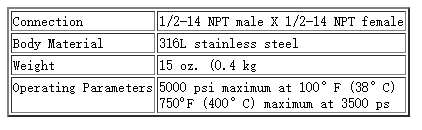

Specifications
US GaugeSta-Kool Cooling Element
US GaugeSta-Kool Cooling Element
