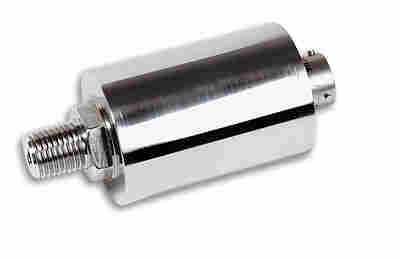

PX931-500SV
高精度全桥输出压力传感器
PX931
高精度全桥输出压力传感器
坚固的不锈钢外壳保护工业环境 组件
对于大多数媒体 兼容性焊接不锈钢膜片
连接方便现场连接一pt06f-10-6s连接器
使用一个标准的10V直流稳压电源的大的多功能性
1 / 4 NPT过程拟合的快速，容易和安全的安装
良好的温度稳定性
单位100磅及以下高精度
NIST可追踪校准证书
规格
Excitation: 10 Vdc (15 Vdc max.)
@30 mA
Output: 30 mV ±0.25% @10 Vdc
Sensitivity: 3 mV/V
Input Impedance: 360 ? min
Output Resistance: 350 ? ±5?
Insulation Resistance: > 5 M?
@ 75 Vdc
Accuracy: 0.15%
Hysteresis: ±0.10%
Repeatability: ±0.05%
Zero Balance: ±1.0%
Shunt Cal: 59 K?
Operable Temperature Range:
-100 to 325°F (-73 to 163°C)
Compensated Temperature Range:
60 to 160°F (16 to 71°C)
Thermal Zero Effect:
± 0.005% full scale/°F
Thermal Sensitivity Effect:
±0.005% Reading/°F
Proof Pressure: 150% range
Burst Pressure: 300% range
Body Material: 17-4 PH Stainless Steel,
hermetically sealed
Diaphragm Material: 17-4 PH Stainless
Steel
Pressure Port: 1/4 -18 NPT
Male Thread 10 to 1,000 psi,
Female Thread 3,000 to 7500 psi)
Mating Connector PT06F-10-6S
(not included)
Pressure Cavity Volume: 0.171 in3
Weight: 10 oz (29 g)
注释: Models with ranges 1000 psi and less have 1/4-18 NPT male fitting. Ranges 3000 psi and up have 1/4-18 NPT female fitting.
产品型号/产品描述
PX931-010GV 0-10 psi Gage pressure transducer
PX931-025GV 0-25 psi Gage pressure transducer
PX931-050GV 0-50 psi Gage pressure transducer
PX931-100SV 0-100 psi Sealed Gage pressure transducer
PX931-200SV 0-200 psi Sealed Gage pressure transducer
PX931-500SV 0-500 psi Sealed Gage pressure transducer
PX931-1KSV 0-1,000 psi Sealed Gage pressure transducer
PX931-3KSV 0-3,000 psi Sealed Gage pressure transducer
PX931-5KSV 0-5,000 psi Sealed Gage pressure transducer
PX931-7.5KSV 0-7,500 psi Sealed Gage pressure transducer
PT06F10-6S Mating connector (sold separately)
PX931-500SV
