197064全氟烷氧基树脂气管,PFAN-10X1,5-NT
Plastic tubing PFAN-10X1,5-NT (197064)
Plastic tubing PFAN-12X1,75-NT (197065)
Plastic tubing PFAN-3X0,5-NT (8061167)
Plastic tubing PFAN-4X0,75-NT (197061)
Plastic tubing PFAN-6X1-NT (197062)
Plastic tubing PFAN-8X1,25-NT (197063)

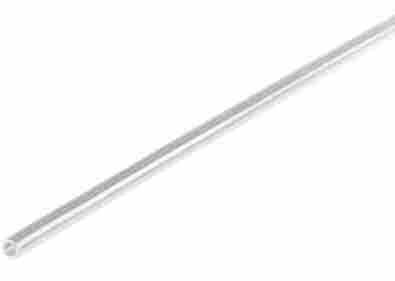

塑料气管PFAN-10X1,5-NT
产品代号: 197064
可耐150°..高温， 并可用于食品加工行业
外径 10 mm
与流量相关的弯曲半径 140 mm
内径 7 mm
小弯曲半径 22 mm
和温度相关的工作压力 -0.95 ... 16 bar
材料的防火测试 UL94 V-0
食品安全 见一致性声明
环境温度 -20 ... 150 °C
产品质量视长度而定 0.087 kg/m
气动连接 用于快插接头外径 10 mm
颜色 中性
肖氏硬度 D 60 +5
材料备注 符合 RoHS
材料信息，气管 PFA
