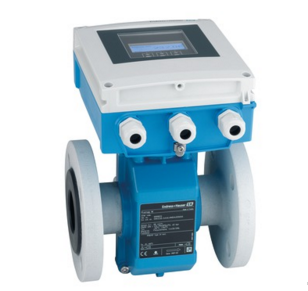

Proline Promag W400电磁流量计
：Endress+Hauser（E+H） 恩德斯豪斯
产地：德国
供应商：深圳市银飞电子科技有限公司
该流量计采用集成网络服务器和EN ISO 12944防腐的传感器
Promag W 是适合水行业所有用途的传感器。Promag W 400结合Promag 400型变送器优化水和污水测量，是满足水产业所有应用的理想解决方案。Promag D 400采用集成网络服务器和Heartbeat Technology™集成校验，无需增加硬件和软件即可提供本地化操作，节约时间。
Fluke1664FC多功能安装测试仪 Fluke4322自动压力校准系统 Fluke754EL多功能校验仪
优势
适于地下直埋或长期水下使用-经过的传感器
长时间操作安全可靠-全焊接式传感器牢固耐用
节能型流量测量-横截面与管道一致，无压损
免维护-无活动件
操作安全-背光显示、触摸控制，无需开启设备
无需增加硬件和软件即可提供本地化操作，节约时间-集成网络服务器
集成验证 - Heartbeat Technology™
测量原理的选择时不需要考虑测量工况，包括压力、密度、温度和粘度等
在水和污水行业中苛刻应用的
设备特点
国际饮用水
防护等级IP68（6P型外壳）
符合MI-001/OIML R49 标准，取得计量交接
变送器外壳采用耐用的聚碳酸酯或铝材
一体型/分体型两种规格均采用同样外壳
集成数据记录器：监测测量值
应用领域
特征和规格
测量原理
电磁
主要特点
The flowmeter with integrated web server and a sensor with certified corrosion protection (EN ISO 12944). For direct underground installation or permanent underwater use. The specialist in the water and wastewater industry for the most demanding applications.
特点
Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure).
Transmitter features
Safe operation – no need to open the device due to display with touch control, background lighting. Timesaving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Transmitter housing made of durable polycarbonate or aluminium. Same housing concept for compact/remote version.
直径
DN 25 to 2000 (1 to 78")
Wetted materials
Liner: Polyurethane; Hard rubber
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
Measured variables
Volume flow, conductivity, mass flow
测量误差
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec
量程
9 dm³/min to 110 000 m³/h (2.5 gal/min to 700 Mgal/d)
压力范围
PN 40, Class 300, 20K
过程温度
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
环境温度
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Sensor housing material
DN 25 to 300 (1 to 12"): AlSi10Mg, coated
DN 25 to 2000 (1 to 78"): Carbon steel with protective varnish
Sensor connection housing (standard): AlSi10Mg, coated
Sensor connection housing (option): Polycarbonate
Transmitter housing material
Polycarbonat; AlSi10Mg, coated
电子插件的防护
Compact version: IP66/67, type 4X enclosure
Sensor remote version (standard): IP66/67, type 4X enclosure
Sensor remote version (option): IP68, type 6P enclosure, with protective varnish
according to EN ISO 12944 C5‐M/Im1/Im2/Im3
Transmitter remote version: IP66/67, Type 4X enclosure
显示/操作
4‐line backlit display with touch control (operation from outside)
Configuration via local display, web browser and operating tools possible
输出
3 ouputs:
0‐20 mA/4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Pulse/frequency output (passive)
Switch output (passive)
输入
Status input
通信
HART, PROFIBUS DP, EtherNet/IP, Modbus RS485
Power supply
AC 100…240 V / AC/DC 24 V
防爆
cCSAus
Metrological approvals and certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
custody transfer according to MI‐001 or OIML R49
Pressure approvals and certificates
CRN
Material certificates
3.1 material
Hygienic approvals and certificates
Drinking water approval: ACS, KTW/W270, NSF 61, WRAS BS 6920
