：Endress+Hauser（E+H） 恩德斯豪斯
产地：德国
供应商：深圳市银飞电子科技有限公司

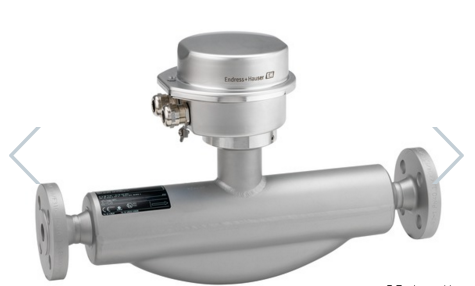

该质量流量计测量精度高、结构坚固，带紧凑型变送器。
Promass F流量计在变化的过程条件下仍能测量，与现有的小型变送器配套使用，Promass F 100流量计用于测量小流量，是系统集成商、撬装设备制造商以及其他设备制造商的。Promass F 100流量计采用紧凑型不锈钢的卫生型外壳，可安装在空间狭小的测量场合。
高过程安全性 - 抗扰动，可用于苛刻的测量场合
减少过程测量点 - 多变量测量（流速、密度、温度）
节省安装空间 - 无需进出口直管段
精小型变送器 - 可测量小流量
省时的现场操作，无需额外的软件与硬件 - 内置网络服务器
综合验证 - Heartbeat 技术
科氏力测量原理不受流体本身的物理性质（例如粘度或密度）影响。
在多变、苛求的过程条件下，高精度测量液体和气体流量。
设备特性
质量流量测量误差： ±0.05% (PremiumCal)
第二腔室可承受额定压力： 40 bar (580 psi)
公称直径：DN 8 to 250 (3/8 to 10")
坚固的紧凑型变送器外壳
高防护等级：IP69K
带现场显示
优势
应用领域
特征和规格
测量原理
科氏力
主要特点
The flowmeter with premium accuracy, robustness and an ultracompact transmitter. Highest measurement performance for liquids and gases under varying, demanding process conditions.
特点
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. Mass flow: measured error ±0.05 % (PremiumCal). Medium temperature up to 350 °C (662 °F).
Transmitter features
Space‐saving transmitter – full functionality on smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra‐compact transmitter housing. High ingress protection: IP69K.
直径
DN 8 to 250 (⅜ to 10")
Wetted materials
Measuring tube: 1.4539 (904L); L); Alloy C22, 2.4602 (UNS N06022)
Connection: L); Alloy C22, 2.4602 (UNS N06022)
Measured variables
Mass flow, density, temperature, volume flow, corrected volume, flow, reference density, concentration
测量误差
Mass flow (liquid): ±0.1 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 %
Density (liquid): ±0.0005 g/cm³
量程
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
压力范围
PN 100, Class 600, 63K
过程温度
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +240 °C (–58…+464 °F)
High temperatur option: –50 to +350 °C (–58…+662 °F)
环境温度
Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)
Sensor housing material
04L), corrosion resistant
Transmitter housing material
Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304), 1.4404 (316L)
电子插件的防护
Standard: IP66/67, type 4X enclosure
Option: IP69K
显示/操作
4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
输出
4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
输入
None
通信
HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power supply
DC 20 to 30 V
防爆
ATEX, IECEx, cCSAus, NEPSI, TIIS, INMETRO
Product safety
CE, C-Tick, EAC marking
Metrological approvals and certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)
Marine approvals and certificates
ABS (American Bureau of Shipping)
BV (Bureau Veritas)
LR (Lloyds Register)
Pressure approvals and certificates
PED, CRN, AD 2000
Material certificates
3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
Hygienic approvals and certificates
3-A, EHEDG
