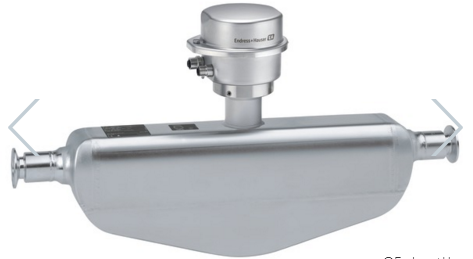

E+H P100科氏力质量流量计
：Endress+Hauser（E+H） 恩德斯豪斯
产地：德国
供应商：深圳市银飞电子科技有限公司
该质量流量计带紧凑型变送器，适用于生命科学领域。
Promass P 100流量计可提供比弯管流量计更的性能，以及比直管流量计更佳的排水能力。与现有的小型变送器配套使用，Promass P 100流量计可用于测量小流量，尤其适用于空间狭小的无菌环境，是系统集成商、撬装设备制造商以及其他设备制造商的。
高过程质量 - 完全符合工业要求
减少过程测量点 - 多变量测量（流速、密度、温度）
节省安装空间 - 无需进出口直管段
精小型变送器 - 可测量小流量
省时的现场操作，无需额外的软件与硬件 - 内置网络服务器
综合验证 - Heartbeat 技术
科氏力测量原理不受介质物理特性（例如粘度或密度）影响
适用于生命科学领域中的无菌环境测量。
设备特性
ASME BPE、3-A和EHEDG，以及低铁素体
抛光测量管采用1.4435(316L)
可用CIP/SIP快速清洗
坚固的紧凑型变送器外壳
高防护等级：IP69K
带现场显示
| 测量原理 | 科氏力 | |
| 主要特点 |
The specialist for life sciences with an ultra‐compact transmitter. Dedicated for applications under sterile conditions in the life sciences industry. |
|
| 特点 |
Highest process quality – fully compliant to industry requirements. Fewer process measuring points – multivariable measurement (flow, density, temperature). Spacesaving installation – no in/outlet run needs. ASME BPE, 3-A and EHEDG conform & low delta ferrite. Electropolished measuring tube in 1.4435 (316L). |
|
| Transmitter features |
Space‐saving transmitter – full functionality on smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultracompact transmitter housing. High ingress protection: IP69K. |
|
| 直径 |
DN 8 to 50 (⅜ to 2") |
|
| Wetted materials |
Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); L) |
|
| Measured variables |
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration |
|
| 测量误差 |
Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.5 % Density (liquid): ±0.0005 g/cm³ |
|
| 量程 |
0 to 70 000 kg/h (0 to 2570 lb/min) |
|
| 压力范围 |
PN 63, Class 300, 40K |
|
| 过程温度 |
Standard: –50 to +150 °C (–58 to +302 °F) Option: –50 to +205 °C (–58 to +401 °F) |
|
| 环境温度 |
Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F) |
|
| Sensor housing material |
1.4301 (304), corrosion resistant |
|
| Transmitter housing material |
Compact: AlSi10Mg, coated Compact/ultra‐compact: 1.4301 (304), 1.4404 (316L) |
|
| 电子插件的防护 |
Standard: IP66/67, type 4X enclosure Option: IP69K |
|
| 显示/操作 |
4‐line backlit display available (no local operation) Configuration via web browser and operating tools possible |
|
| 输出 |
4‐20 mA HART (active) Pulse/frequency/switch output (passive) |
|
| 输入 |
None |
|
| 通信 |
HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET |
|
| Power supply |
DC 20 to 30 V |
|
| 防爆 |
ATEX, IECEx, cCSAus, INMETRO, NEPSI, TIIS |
|
| Product safety |
CE, C-Tick, EAC marking |
|
| Metrological approvals and certificates |
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Verification: Heartbeat Technology complies with requirements for traceable verification according to ISO 9001:2008, chapter 7.6. a (TUV attestation) |
|
| Pressure approvals and certificates |
PED, CRN |
|
| Material certificates |
3.1 material |
|
|
Hygienic approvals and certificates
|
3-A, EHEDG, ASME BPE, ISPE | |
