PX309-1KA5V
压力、应力和重力 » » PX309 4 to 20 mA Output Series
高性能压力变送器，4 ～ 20 mA输出
CERoHS
5-Point NIST Traceable Calibration Included
NEW! Vacuum and Compound Gage Ranges
Low Pressure Ranges, 1,2 and 5 psi
Engineered Ranges from 1 to 10,000 psi
Gage and Absolute Pressure Ranges
Rugged All Stainless Steel Construction
State-of-the-art Silicon Technology
High Stability, Low Drift
High Accuracy --- 0.25% FS (BSL)
Premium Temperature Compensation
IP 65 Environmental Protection
Now Available with M12 Connector, Order Model PX459
(See Part Number Builder at bottom of page)

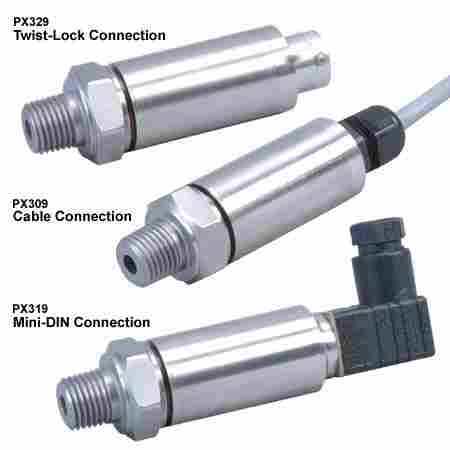

Four styles to choose from
PX309 Cable Connection
PX319 DIN Connection Style (mating connector included)
PX329 Twist Lock Connection (mating connector sold separately)
PX359 with M12 Connector (mating cables sold separately)
产品描述
STATE-OF-THE-ART TECHNOLOGY
OMEGA’s PX309 Series high performance general purpose pressure transducers use two state-of-the-art silicon technologies. Pressure ranges below 100 psi use a high-accuracy silicon sensor protected by a fluid filled stainless steel diaphragm. Ranges 100 psi and above use high-accuracy silicon strain gages molecularly bonded to the stainless steel diaphragm. Both systems provide a rugged sensor with high accuracy and excellent long term stability.
FAST DELIVERY ON MOST MODELS! Typical Lead time is 4-weeks or less if not in stock.
SPECIFICATIONS
Excitation: 9 to 30 Vdc (reverse polarity and overvoltage protected)
Output: 4 to 20 mA
Accuracy: ±0.25% (includes linearity, hysteresis and repeatability)
Zero Offset: ±2% FSO, (±4% 1 and 2 psi)
Span Setting: ±2% FSO, (±4% 1 and 2 psi)
Total Error Band: ±2% (except 1 psi =±4.5% and 2 psi = ±3%) FSO, includes linearity, hysteresis, repeatability, thermal hysteresis and thermal errors
Long-Term Stability (1 Year): ±0.25% typical
Typical Life: 10 million cycles
Operating Temperature: -40 to 85°C (-40 to 185°F)
Compensated Temperature:
>5 psi Range: -20 to 85°C (-4 to 185°F)
≤5 psi Range: 0 to 50°C (-18 to 122°F)
Proof Pressure:
psia and ≤50 psig: 3x capacity or 20 psi, whichever is greater
≥100 psi: 2x capacity
Burst Pressure: 500% capacity or 25 psi, whichever is greater
Response Time: <1 ms
Shock: 50 g, 11 ms half-sine shock
Vibration: ±20 g
Wetted Parts: 316 SS for all psia ranges and 1 to 50 psig; 17-4 PH SS for ranges 100 to 10,000 psig
Pressure Port: 1/4 -18 MNPT
Electrical Connections:
PX309: 1.5 m (5 ft) 2-conductor cable
PX319: mini DIN connector with mating connector included
PX329: Twist-lock connector, mating connector sold separately (PT06V
