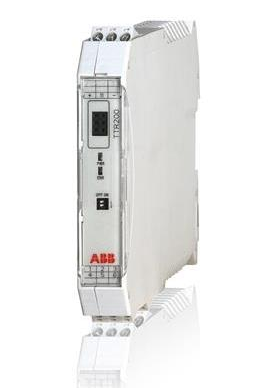

TTR200温度变送器
：ABB
供应商：深圳市银飞电子科技有限公司
The TTR200 is a universal rail-mount HART temperature transmitter in a compact 17.5 mm housing. The transmitter provides increased device safety in compliance with NE89 and NE107 and hardware write protection.
The TTR200 is a rail-mount version of the TTH200 transmitter with the addition of two indicator LEDs. A green LED indicates that the transmitter is powered. A red LED would indicate a fault in either the unit or the sensor. TTR200 units can be placed in cabinet racks and can be configured via FDT / DTM in DAT200 (Asset Vision Basic) or any standard FTD tool via EDD
-
Universal sensor input
– RTD, thermocouple, Ω, mV
-
Various sensor error-calibration possibilities
– One point, two point
-
Output signal
– 4 to 20 mA, HART
-
Accuracy 0.1 %, long-term stability 0.05 % per year
-
Wire break / corrosion monitoring (NE89)
-
Extended diagnostics (NE107)
-
Approvals for explosion protection
– ATEX, IECEx, zone 0
– FM / CSA
– GOST
Fieldbus & HART – TTx200
ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices.
The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device.
