A2F250R2S1

A2F250R2S1定量柱塞泵,A2F250R2S1定量柱塞泵价格,A2F250R2S1定量柱塞泵生产厂家

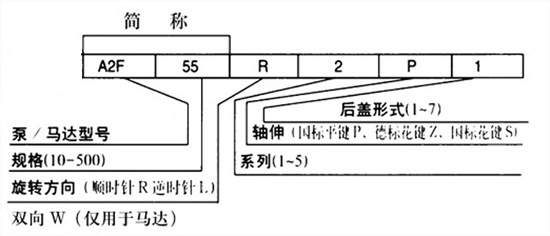

型号示意

泵/马达的工作压力：

泵出口或马达进口(油口A或B)的压力

额定压力——PN=35MPa

高压力——Pmax=40MPa

泵吸油S或A、B的低压力

Pabsmin——0.08MPa()

泵/马达壳体(油口T)允许的高压力

Pabsmax——0.2MPa()



规格（排量）与驱动转速(在吸油口S有0.1MPa压力时)

规格	10	12	23	28	45	55	63	80	107	125	160	200	250	355	500
排量Vg(ml/r)	9.4	11.6	22.7	28.1	44.3	54.8	63	80	107	125	160	200	250	355	500
高转速nmax(r/min)	5000	4000	4000	3000	3000	2500	2700	2240	2000	2240	1750	1800			0

A2F12W6.1P2,A2F12R6.1Z2,,A2F12R6.1P2,A2F12L6.1Z2,
A2F23L6.1Z2,A2F12W6.1Z2,A2F12L6.1P2,A2F16L6.1P2,
A2F16L6.1Z2,A2F16W6.1P2,A2F16R6.1P2,A2F23W6.1Z2,
A2F16R6.1Z2,A2F16W6.1Z2,A2F23R6.1P2,A2F32R6.1P2,
A2F23W6.1P2,A2F23R6.1Z2,A2F32R6.1Z2,A2F63W6.1Z2,
A2F23L6.1P2,A2F32L6.1Z2,A2F32W6.1Z2,A2F45W6.1Z2,
A2F32L6.1P2,A2F32W6.1P2,A2F28W6.1P2,A2F56W6.1P2,
A2F28W6.1Z2,A2F56W6.1Z2,A2F28L6.1P2,A2F56L6.1P2,
A2F28L6.1Z2,A2F56L6.1Z2,A2F28R6.1P2,A2F56R6.1P2,
A2F28R6.1Z2,A2F56R6.1Z2,A2F45R6.1P2,A2F63R6.1P2,
A2F45W6.1P2,A2F63W6.1P2,A2F45L6.1P2,A2F63L6.1P2,
A2F45L6.1Z2,A2F63L6.1Z2,A2F45R6.1Z2,A2F63R6.1Z2,
A2F56W6.1Z2,A2F80W6.1P2,A2F107W6.1P2,
A2F80L6.1Z2,A2F107L6.1Z2,A2F80R6.1P2,A2F107R6.1P2,
A2F80L6.1P2,A2F107L6.1P2,A2F80R6.1Z2,A2F107R6.1Z2,
A2F80W6.1Z2,A2F107W6.1Z2,A2F90W6.1P2,A2F125W6.1P2,
A2F90R6.1P2,A2F125R6.1P2,A2F90L6.1P2,A2F125L6.1P2,
A2F90W6.1Z2,A2F125W6.1Z2,A2F90R6.1Z2,A2F125R6.1Z2,
A2F90L6.1Z2,A2F125L6.1Z2,A2F90R6.1P2,A2F125R6.1P2,
A2F180L6.1P2,A2F160L6.1P2,A2F180W6.1P2,A2F160W6.1P2,
A2F180L6.1Z2,A2F160L6.1Z2,A2F180R6.1P2,A2F160R6.1P2,

A2F180R6.1Z2,A2F160R6.1Z2,A2F180W6.1Z2,A2F160W6.1Z2,
