TQM301-45扭矩传感器

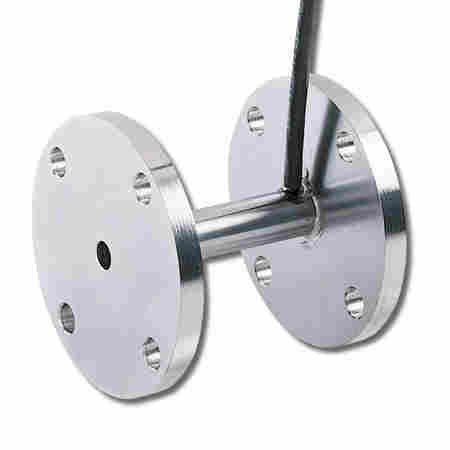

反作用扭矩传感器，法兰至法兰安装
TQ301
CE
反作用扭矩传感器，法兰至法兰安装
All Stainless Steel Case for Long Term Reliability in Industrial Environments
High Accuracy
Shielded Cable for Precise Low Noise Measurements
Heavy Duty Mounting for Positive, Non-Slip Connection
SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
AccuracyClass: ±0.2% FSO
Linearity, Hysteresis, and Repeatability: ±0.2% FSO Combined
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 4 ft (1.2 m) 4-conductor shielded PVC cable, color coded
产品型号/产品描述
TQ301-400 Flange mounted reaction torque sensor with 400 in-lb range
TQM301-45 Flange mounted reaction torque sensor with 45 N-m range
