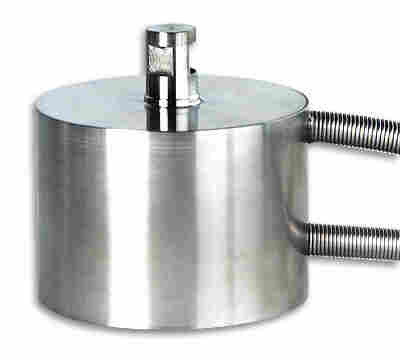

TQ601-100/50扭矩传感器

组合式扭矩和推力传感器
坚固耐用型构造
TQ601
CE
组合式扭矩和推力传感器
坚固耐用型构造
为单独的输出扭矩和推力
在工业环境 长期可靠的全不锈钢
IP65保护
高精度
双屏蔽电缆的的低噪声测量

规格：

TORQUE CELL
Output: 2.0 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ω min.
Output Resistance: 350 ±5 Ω
Linearity: ±0.2% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity

THRUST CELL
Output: 2.0 mV/V
Excitation: 10 Vac/dc, 15 V max
Input Resistance: 360 Ω min.
Output Resistance: 350 ±5 Ω
Linearity: ±0.15% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Thermal Effects:
Zero: 0.0025% FSO/°F
Span: 0.005% Rdg/°F
Safe Overload: 200% of Capacity
Ultimate Overload: 300% of Capacity

COMMON SPECIFICATIONS
Operating Temperature: -46 to 107°C (-50 to 225°F)
Compensated Temperature: 16 to 71°C (60 to 160°F)
Construction: Stainless Steel
Electrical: Two (2) 10 ft (3 m) 4-conductor shielded PVC Cables

PLEASE NOTE THAT THIS IS A "BUILT TO ORDER" PRODUCT AND IS NOT TYPCIALLY STOCKED.
PLEASE CONTACT OUR ENGINEERING DEPARTMENT TO DISCUSS DELIVERY NEEDS.

产品型号/产品描述

TQ601-15/15 0 to 15 in-lb torque and 0 to 15 lb force ranges

TQ601-100/50 0 to 100 in-lb torque and 0 to 50 lb force ranges
