ABB TB25电导率传感器

：ABB    产地：美国

供应商：深圳市银飞电子科技有限公司

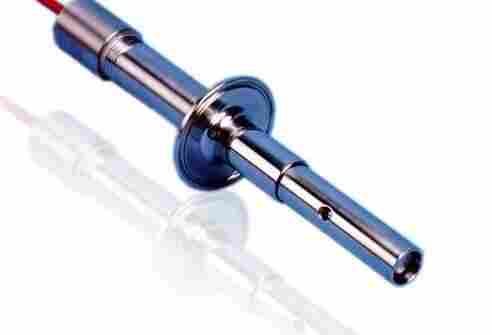

Tri-clamp type, stainless steel electrodes TB25

Overview

The TB25 conductivity cell with integral tri-clamp fitting is designed for for use in sanitary applications. A Food and Drug Administration (FDA) approved silicone potting material around the body of the sensor seals the measurement electrode tip. The first style available has an extended face that places the measurement electrodes into the process past the fitting. The extended face style is narrow enough to allow cleaning chemicals or steam to surround the body of the measurement electrodes. This assures crevice-free cleaning. The second style has a tri-clamp fitting that is flush with the sensor body.

ABB TB25电导率传感器

Data

• Integral tri-clamp flange
• FDA-approved wetted materials.
• ABB TB25电导率传感器
• Measurement ranges from 0 to 1.999 µS/cm to 0 to 19.99 mS/cm
• Corrosion resistant 316 stainless steel measurement electrodes
• Pt100 or Pt1000 integral temperature compensation elements
• Maximum temperature 175 °C (347 °F)
• ABB TB25电导率传感器
• Maximum pressure 862 kPa (8.62 bar / 125 psi)

_{如果您想试用该产品，请到下方网址联系我们：}

_{网址：http://www.1001718.com/}

银飞电子主要销售仪器仪表 电力设备 热工仪表 航空器材 校准设备 工具配件。
