NWHJRG-01-02P5-E1/240
加热器 » 循环式加热器 » 水循环加热器 » NWHJR Series

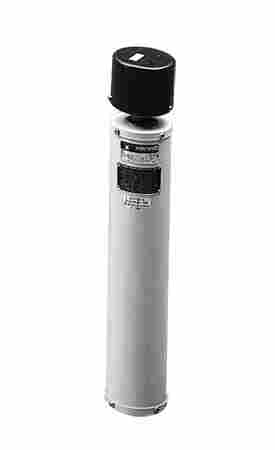

热水系统辅助加热器
NWHJR Series
Heavy Wall Carbon Steel or Brass Pipe Body
1.5 - 3 kW
120 and 240V, Single Phase
0.315" Dia. Copper Sheath Elements (80 W/In2 )
General Purpose or Moisture Resistant Terminal Enclosure
Integral Thermostat (60 - 180°F)
产品描述
FEATURES
Terminal Enclosure:
E1 General Purpose is standard. E4 Moisture Resistant available.
Elements:
Seamless 0.315" diameter copper sheath heating element brazed to a 1" brass screw plug.
Vessel:
Available with galvanized steel or solid brass pipe body.
Thermostat:
Integral thermostat with 60 to 180°temperature range located inside the terminal enclosure.
Mounting:
Easy to install; minimal size and weight, no supporting brackets are required.
Third Party:
UL Listed - CSA Certification available (except NWHJRG-01-003P-E1 120V). APPLICATIONS Type NWHJR (Junior) can be used to supply hot water or boost water temperature anywhere in a water distribution system.
kW Volts Ckt &
Phase Dimensions (In.) Model No. Wt.
(Lbs.)
A B
150 lb carbon steel pipe body — 1 copper element (80 W/In2)
3/8 NWHJRG-01-01P5-E1/120 14
3/8 NWHJRG-01-01P5-E1/240 14
2 120 1-1 18 12 3/8 NWHJRG-01-002P-E1/120 14
2 240 1-1 18 12 3/8 NWHJRG-01-002P-E1/240 14
2.5 120 1-1 22 16 3/8 NWHJRG-01-02P5-E1/120 16
2.5 240 1-1 22 16 3/8 NWHJRG-01-02P5-E1/240 16
3 120 1-1 22 16 3/8 NWHJRG-01-003P-E1/120 16
3 240 1-1 22 16 3/8 NWHJRG-01-003P-E1/240 16
150 lb brass pipe body — 1 copper element (80 W/In2)
3/8 NWHJRB-01-01P5-E1/120 14
3/8 NWHJRB-01-01P5-E1/240 14
2 120 1-1 18 12 3/8 NWHJRB-01-002P-E1/120 14
2 240 1-1 18 12 3/8 NWHJRB-01-002P-E1/240 14
2.5 240 1-1 22 16 3/8 NWHJRB-01-02P5-E1/240 16
3 240 1-1 22 16 3/8 NWHJRB-01-003P-E1/240 16
产品编号 产品描述
NWHJRG-01-01P5-E1/120 Heater, 1.5 kW, 120 V, 1 phase, 1 element
NWHJRG-01-01P5-E1/240 Heater, 1.5 kW, 240 V, 1 phase, 1 element
NWHJRG-01-002P-E1/120 Heater, 2 kW, 120 V, 1 phase, 1 element
NWHJRG-01-002P-E1/240 Heater, 2 kW, 240 V, 1 phase, 1 element
NWHJRG-01-02P5-E1/240 Heater, 2.5 kW, 240 V, 1 phase, 1 element
NWHJRG-01-003P-E1/240 Heater, 3 kW, 240 V, 1 phase, 1 element
NWHJRB-01-01P5-E1/120 Heater, 1.5 kW, 120 V, 1 phase, 1 element
NWHJRB-01-002P-E1/120 Heater, 2 kW, 120 V, 1 phase, 1 element
NWHJRB-01-002P-E1/240 Heater, 2 kW, 240 V, 1 phase, 1 element
NWHJRB-01-02P5-E1/240 Heater, 2.5 kW, 240 V, 1 phase, 1 element
NWHJRB-01-003P-E1/240 Heater, 3 kW, 240 V, 1 phase, 1 element
