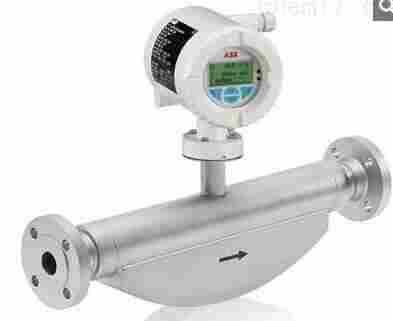

Coriolis mass flowmeter CoriolisMaster FCB330 and FCB350



CoriolisMaster FCB300 series of compact general purpose Coriolis flowmeters feature low pressure drop, high flow capacity, intuitive display, various analog and digital outputs and HART communication.

Overview ABB FCB330科氏力质量流量计

With no up or downstream piping requirements the compact Coriolis flowmeters can be installed in the tightest spaces, enabling applications not possible before.
The FCB300 series delivers:ABB FCB330科氏力质量流量计

• Unmatched measuring accuracy for liquids and gases
• Measurement of mass and volume flow, density, temperature and concentration in one device
• Low pressure drop save 25 % on pump energy costs compared to other brands
• Wide measurement span in a single meter

The FCB350 adds:

• DensiMass software for direct concentration measurement

Data

General specifications:

• Nominal sizes / measuring ranges
  – DN 15 (1/2 in.) / 0 to 8,000 kg/h (17,637 lb/h)
  – DN 25 (1 in.) / 0 to 35,000 kg/h (77,162 lb/h)
  – DN 50 (2 in.) / 0 to 90,000 kg/h (198,416 lb/h)
  – DN 80 (3 in.) / 0 to 250,000 kg/h (551,156 lb/h)
  – DN 100 (4 in.) / 0 to 520,000 kg/h (1,146,404 lb/h)
  – DN 150 (6 in.) / 0 to 860,000 kg/h (1,895,975 lb/h)
• Ex approvals
  – ATEX zone 0/1/2, cFMus Div 1/2 and zone 0/1/2, NEPSI 0/1/2
• Marine approval ABB FCB330科氏力质量流量计
  – DNV - GL
• Wetted materials
  – 16L) or Hasteloy C
• Accuracy for liquids
  FCB330
  – Mass and volume: 0.4 % o. r. / 0.25 % o. r.
  – Density: 10 g/l
  FCB350
  – Mass: 0.15 % o. r. / 0.1 % o. r., volume: 0.15 % o. r.
  – Density: 2 g/l or 1 g/l
• Measuring medium temperature
  FCB330
  –  -50 to 160 °C (-58 to 320 °F)
  FCB350
  –  -50 to 205 °C (-58 to 400 °F)
• Outputs
  – 2 current outputs, 1 pulse, 1 contact out/in
  – HART
• Power supply
  – 24 V AC/DC, 110/230 V AC

Tools

For selecting the most suitable product for your application.

Fieldbus & HART

ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices.
The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device.
