EHR00016
加热器 » 外壳加热器，风扇和配件 » 机柜加热器 » EHR_Series

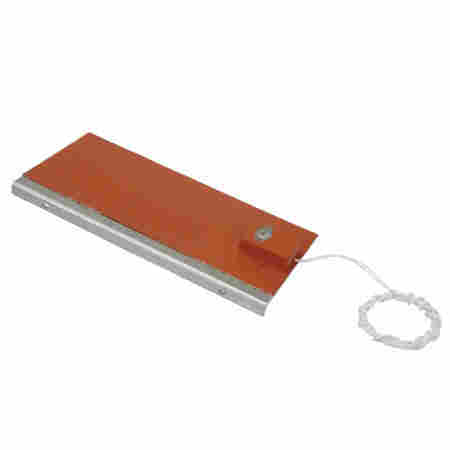

硅橡胶外壳加热器
EHR_Series
Available with or without an Integrated Thermostat (See EHA below for Remote Thermostats)
Custom Design and Alternate Thermostat Settings Available
Heater Vulcanized to an Aluminum Mounting Plate for Easy Installation
120V Standard; Custom Voltages Available upon Request
1.2 m (48") PTFE Leads Standard
Safe to Operate, No Exposed Electrical Connections
13 mm (1/2") Mounting Flange
产品描述
EHR Series silicone rubber heaters are designed for easy installation and safe operation. These rectangular shaped wire-wound silicone rubber heaters are vulcanized to an aluminum mounting plate with mounting holes. They provide superior protection for enclosures of all types against condensation, humidity and freezing.
It is recommended that the enclosure heater be used with a thermostat either built in or mounted remotely to limit the maximum temperature reached and conserve energy. The suggested mounting method is at the bottom of the enclosure, mounted vertically. If a remote mounted thermostat is preferred, mount the heater on the bottom of the enclosure and the thermostat in the middle of the enclosure.
Model No. Width mm (inch) Length mm (inch) Mounting Center Watts Volts Lead Length m (inch) Thermostat °C (°F)
Opens Closes
EHR00001 64 (2½) 127 (5) 3 25 120 1.2 (48) — —
EHR00002 64 (2½) 127 (5) 3 25 120 1.2 (48) 16 (60) 4 (40)
EHR00003 64 (2½) 127 (5) 3 35 120 1.2 (48) — —
EHR00037 64 (2½) 127 (5) 3 50 12 1.2 (48) 16 (60) 4 (40)
EHR00039 64 (2½) 127 (5) 3 50 24 1.2 (48) — —
EHR00004 64 (2½) 127 (5) 3 50 120 1.2 (48) — —
EHR00005 64 (2½) 127 (5) 3 50 120 1.2 (48) 16 (60) 4 (40)
EHR00048 64 (2½) (48) 60 (140) 43 (110)
EHR00006 64 (2½) .2 (48) — —
EHR00007 64 (2½)
) 4 60 120 1.2 (48) 60 (140) 43 (110)
EHR00009 64 (2½) .2 (48) 82 (180) 66 (150)
EHR00010 64 (2½) 254 (10) 7 70 120 1.2 (48) — —
EHR00047 64 (2½) 254 (10) 7 100 12 1.2 (48) 16 (60) 4 (40)
EHR00049 64 (2½) 254 (10) 7 100 12 1.2 (48) — —
EHR00035 64 (2½) 254 (10) 7 100 24 1.2 (48) 16 (60) 4 (40)
EHR00011 64 (2½) 254 (10) 7 100 120 1.2 (48) — —
EHR00012 64 (2½) 254 (10) 7 100 120 1.2 (48) 16 (60) 4 (40)
EHR00028 64 (2½) 254 (10) 7 100 230 1.2 (48) 16 (60) 4 (40)
EHR00032 64 (2½) 305 (12) 9 80 240 1.2 (48) 16 (60) 4 (40)
EHR00013 64 (2½) 305 (12) 9 120 120 1.2 (48) — —
EHR00014 64 (2½) 305 (12) 9 120 120 1.2 (48) 16 (60) 4 (40)
EHR00015 64 (2½) 305 (12) 9 120 120 1.2 (48) 60 (140) 43 (110)
EHR00016 64 (2½) 305 (12) 9 120 120 1.2 (48) 82 (180) 66 (150)
EHR00034 64 (2½) 305 (12) 9 120 240 1.2 (48) 16 (60) 4 (40)
EHR00017 114 (4½) 254 (10) 7 140 120 1.2 (48) — —
EHR00018 114 (4½) 254 (10) 7 250 120 1.2 (48) — —
EHR00019 114 (4½) 254 (10) 7 250 120 1.2 (48) 16 (60) 4 (40)
EHR00044 114 (4½) 254 (10) 7 250 240 1.2 (48) 60 (140) 43 (110)
Note: Dimensions listed are for heater and bracket; actual heater width is 12.7 mm (½") less.
Note: Mounting slot size is 6 x 4 mm (1⁄4 x 5⁄32").
Model Number Opens °F Closes °F
PSA D-ring and Strap
EHA00001 EHA00005 60±5 40±7
EHA00002 — 140±5 110±10
EHA00003 — 180±5 150±10
注: Note: Dimensions listed are for heater and bracket; actual heater width is 12.7 mm (1/2") less. Note: Mounting slot size is 6 x 4 mm (1/4 x 5/32").
产品编号 产品描述
EHR00001 Length: 5", Width: 2.5", 25 Watts, 120 Volt
EHR00002 Length: 5", Width: 2.5", 25 Watts, 120 Volt
EHR00003 Length: 5", Width: 2.5", 35 Watts, 120 Volt
EHR00004 Length: 5", Width: 2.5", 50 Watts, 120 Volt
EHR00005 Length: 5", Width: 2.5",, 50 Watts, 120 Volt
EHR00006 Length: 6", Width: 2.5", 60 Watts, 120 Volt
EHR00007 Length: 6", Width: 2.5", 60 Watts, 120 Volt
EHR00008 Length: 6", Width: 2.5", 60 Watts, 120 Volt
EHR00009 Length: 6", Width: 2.5",, 60 Watts, 120 Volt
EHR00010 Length: 10", Width: 2.5", 70 Watts, 120 Volt
EHR00011 Length: 10", Width: 2.5", 100 Watts, 120 Volt
EHR00012 Length: 10", Width 2.5", 100 Watts, 120 Volt
EHR00013 Length: 12", Width: 2.5", 120 Watts, 120 Volt
EHR00014 Length: 12", Width: 2.5", 120 Watts, 120 Volt
EHR00015 Length: 12", Width: 2.5", 120 Watts, 120 Volt
EHR00016 Length: 12"' Width: 2.5", 120 Watts, 120 Volt
EHR00017 Length: 10", Width: 4.5", 140 Watts, 120 Volt
EHR00018 Length: 10", Width:4.5", 250 Watts, 120 Volt
EHR00019 Length: 10", Width: 4.5", 250 Watts, 120 Volt
EHR00028 Length 10", Width: 2.5", 100 Watts, 230 Volt
EHR00032 Length: 12", Width: 2.5", 80 Watts, 240 Volt
EHR00034 Length: 12", Width: 2.5", 120 Watts, 240 Volt
EHR00035 Length: 10", Width: 2.5", 100 Watts, 24 Volt
EHR00037 Length: 5", Width: 2.5", 50 Watts, 12 Volt
EHR00039 Length: 5", Width: 2.5", 50 Watts, 24 Volt
EHR00044 Length: 10", Width: 4.5", 250 Watts, 240 Volt
EHR00047 Length: 10", Width: 2.5", 100 Watts, 12 Volt
EHR00048 Length: 6", Width: 2.5", 60 Watts, 24 Volt
EHR00049 Length: 10", Width: 2.5", 100 Watts, 12 Volt
