FGR-080
加热器 » 柔形加热器 » 带式和绳式加热器 » FGR Series
OMEGALUX® Rope Heaters
FGR Series
Operating Temperature Rating to 482°C (900°F)
Wraps Around Small Diameter Pipes and Tubes
产品描述

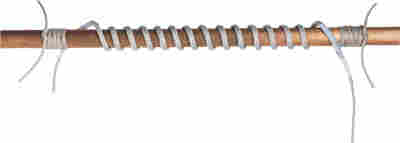

OMEGALUX® rope heaters apply heat to tubing with diameters as small as 1/8" (3.2 mm). Featuring a maximum allowable operating temperature of 482°C (900°F), the FGR series rope heaters can be wrapped around either conductive or non-conductive surfaces. Each end terminates with 24" (610 mm) long fiberglass insulated lead wire. These rope heaters are very similar to our heater tapes. Please review our tape heaters for your application needs.
SPECIFICATIONS
Maximum Allowable Temperature: 482°C (900°F)
Suitable for Use on Conductive Surface: Yes
Resists Moisture, Vapor, Or Chemicals: No
Standard Diameter: 5 mm (3/16 inch)
Voltage: 120 Volt ac or dc, 240V optional
Linear Wattage: 4 Watts/in. approx.
Heater Length: 3, 6, 8, or 10 feet (0.9, 1.8, 2.4 or 3.0 m)
Lead Length: 24 inches (609 mm)
Termination: Stripped leads
注: 240 Vac models and other wattages also available.
产品编号 产品描述
FGR-030 3-Foot Length, 125 W, 120 V
FGR-030/240V 3-Foot Length, 125W. 240V
FGR-060 6-Foot Length, 250 W, 120 V
FGR-060/240V 6-Foot Lenght, 250W, 240V
FGR-080 8-Foot Length, 400 W, 120 V
FGR-080/240V 8-Foot length, 400W, 240V
FGR-100 10-Foot Length, 500 W, 120 V
FGR-100-240V 10-Foot Length, 500W, 240V
