NWHO-03-009P-E1/480
加热器 » 循环式加热器 » 油循环式加热器 » NWHO and NWHOB Series
轻和中质油应用

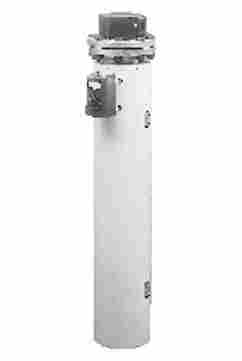

NWHO and NWHOB Series
3 - 10" ANSI Blind Flange Design
3 - 10" Carbon Steel Pipe Body, 150 Lb Construction
3 - 120 kW
240 and 480V, 1 & 3 Phase
General Purpose, Moisture Resistant/Explosion Resistant, Explosion Resistant or Moisture Resistant Terminal Enclosure
0.475" Dia. Steel Sheath Elements (20 - 23 W/In 2 )
With & Without Side Mounted AR Thermostat (200 - 550°F)
UL, CSA and Other Third Party Approval, Listing or Certification Available
产品描述
APPLICATIONS
Light and Medium Weight Oil:
Temperature maintenance and heating of heat transfer oils. Improve flow ability of medium weight oils.
FEATURES
Terminal Enclosure:
E1 General Purpose is standard. E2 Moisture Resistant/Explosion Resistant, E3 Explosion Resistant or E4 Moisture Resistant Enclosures available.
Elements:
0.475" diameter steel sheath elements.
Flange:
3 - 10" ANSI B-16.5 Blind flange with 1 /2 " thermowell for thermostat bulb and a 1 /8 " NPT threaded opening for a thermocouple or RTD.
Vessel:
Pipe body and nozzles are ASTM A53B carbon steel pipe. The end disk is ASTM A516 Grade 70 carbon steel plate. Provided with thermal insulation and painted sheet
Wiring:
Convenient field wiring terminals are provided for easy installation.
Controls:
Series 3 and 6 stock and assembly stock heaters come equipped with side mounted thermostat. Series 18 and 27 are furnished without thermostat..
kW Volts Ckt &
Phase Dimensions (In.) Model No. Wt.
(Lbs.)
A B C
Series 3 — 3 inch, 150 lb carbon steel vessel — 3 steel elements (23 W/In2) with side
mounted thermostat — 1" NPT pipe inlet and outlet
3 240 1-1 32
1/2 16 1/2 NWHO-03-003P-E1/240/3P 70
3 480 1-1 32 /2 NWHO-03-003P-E1/480 70
3 480 1-3 32
22 1/2 16 1/2 NWHO-03-04P5-E1/240 70
4.5 240 1-3 32 /2 NWHO-03-04P5-E1/240/3P 70
4.5 480 1-1 32 /2 NWHO-03-04P5-E1/480 70
4.5 480 1-3 32 /2 NWHO-03-04P5-E1/480/3P 70
6 240 1-1 42 /2 NWHO-03-006P-E1/240 80
6 240 1-3 42 /2 NWHO-03-006P-E1/240/3P 80
6 480 1-1 42 /2 NWHO-03-006P-E1/480 80
6 480 1-3 42 /2 NWHO-03-006P-E1/480/3P 80
7.5 480 1-1 55 7/16 45 39 NWHO-03-07P5-E1/480 94
7.5 480 NWHO-03-07P5-E1/480/3P 94
9 240 1-1 55 7/16 45 39 NWHO-03-009P-E1/240 94
9 240 NWHO-03-009P-E1/240/3P 94
9 480 1-1 55 7/16 45 39 NWHO-03-009P-E1/480 94
9 480 NWHO-03-009P-E1/480/3P 94
Series 06 — 5 inch, 150 lb carbon steel vessel — 6 steel elements (23 W/In2)
with side mounted thermostat — 2" NPT pipe inlet and outlet
12 240
1 3/4 30 11 3/8 NWHO-06-012P-E1/480 140
37 14 1/8 NWHO-06-015P-E1/240 155
37 14 1/8 NWHO-06-015P-E1/480 155
20 240 2-3 60 1/4 48 1/2 20 5/8 NWHO-06-020P-E1/240/2C 176
20 480 1-3 60 1/4 48 1/2 20 5/8 NWHO-06-020P-E1/480 176
25 480 2-3 73 5/8 61 7/8 27 5/16 NWHO-06-025P-E1/480/2C 212
25 480 1-3 73 5/8 61 7/8 27 5/16 NWHO-06-025P-E1/480 212
30 480 2-3 86 5/8 74 7/8 33 7/8 NWHO-06-030P-E1/480/2C 240
30 480 1-3 86 5/8 74 7/8 33 7/8 NWHO-06-030P-E1/480 240
Series 18 — 8 inch, 150 lb carbon steel vessel — 18 steel elements (20 W/In2) —
2-1/2" NPT - pipe inlet and outlet
30 240 3-3 53 /16 NWHO-18-030P-E1/240 360
30 480 3-3 53 /16 NWHO-18-030P-E1/480 360
40 240 3-3 60 /16 NWHO-18-040P-E1/240 436
40 480 3-3 60 /16 NWHO-18-040P-E1/480 436
50 240 3-3 67 7/8 47 5/16 43 13/16 NWHO-18-050P-E1/240 500
50 480 3-3 67 7/8 47 5/16 43 13/16 NWHO-18-050P-E1/480 500
60 240 3-3 77 3/8 56 13/16 53 5/16 NWHO-18-060P-E1/240 600
60 480 3-3 77 3/8 56 13/16 53 5/16 NWHO-18-060P-E1/480 600
70 240 3-3 86 3/8 65 13/16 62 5/16 NWHO-18-070P-E1/240 660
70 480 3-3 86 3/8 65 13/16 62 5/16 NWHO-18-070P-E1/480 660
80 240 3-3 96 3/8 75 13/16 72 5/16 NWHO-18-080P-E1/240 750
80 480 3-3 96 3/8 75 13/16 72 5/16 NWHO-18-080P-E1/480 750
Series 27 — 10 inch, 150 lb carbon steel vessel — 27 steel elements (20 W/In2) —
3" NPT pipe inlet and outlet
80 240 3-3 77 9/16 52 48 1/2 NWHO-27-080P-E1/240 720
80 480 3-3 77 9/16 52 48 1/2 NWHO-27-080P-E1/480 720
90 240 3-3 81 9/16 56 52 1/2 NWHO-27-090P-E1/240 735
90 480 3-3 81 9/16 56 52 1/2 NWHO-27-090P-E1/480 735
100 480 3-3 87 9/16 62 58 1/2 NWHO-27-100P-E1/480 750
120 480 3-3 97 9/16 72 68 1/2 NWHO-27-120P-E1/480 765
Series 18 - 8 inch, 150 lb carbon steel vessel — 18 baffled steel elements (20 W/In2)
— 21/2" NPT pipe inlet and outlet
30 240 3-3 53 1/4 32 11/16 29 13/16 NWHOB-18-030P-E1/240 366
30 480 3-3 53 1/4 32 11/16 29 13/16 NWHOB-18-030P-E1/480 368
40 240 3-3 60 1/4 39 11/16 36 13/16 NWHOB-18-040P-E1/240 442
40 480 3-3 60 1/4 39 11/16 36 13/16 NWHOB-18-040P-E1/480 442
50 240 3-3 67 7/8 47 5/16 43 13/16 NWHOB-18-050P-E1/240 506
50 480 3-3 67 7/8 47 5/16 43 13/16 NWHOB-18-050P-E1/480 506
60 240 3-3 77 3/8 56 13/16 53 5/16 NWHOB-18-060P-E1/240 606
60 480 3-3 77 3/8 56 13/16 53 5/16 NWHOB-18-060P-E1/480 606
70 240 3-3 86 3/8 65 13/16 62 5/16 NWHOB-18-070P-E1/240 666
70 480 3-3 86 3/8 65 13/16 62 5/16 NWHOB-18-070P-E1/480 666
80 240 3-3 96 3/8 75 13/16 72 5/16 NWHOB-18-080P-E1/240 756
80 480 3-3 96 3/8 75 13/16 72 5/16 NWHOB-18-080P-E1/480 756
Series 27 - 10 inch, 150 lb carbon steel vessel — 27 baffled steel elements (20 W/In2)
— 3" NPT pipe inlet and outlet
80 240 3-3 77 9/16 52 48 1/2 NWHOB-27-080P-E1/240 726
80 480 3-3 77 9/16 52 48 1/2 NWHOB-27-080P-E1/480 726
90 240 3-3 81 9/16 56 52 1/2 NWHOB-27-090P-E1/240 741
90 480 3-3 81 9/16 56 52 1/2 NWHOB-27-090P-E1/480 741
100 480 3-3 87 9/16 62 58 1/2 NWHOB-27-100P-E1/480 756
120 480 3-3 97 9/16 72 68 1/2 NWHOB-27-120P-E1/480 771
Review the product spec sheet and table to determine valid part numbers. Use the "Part Number Builder" below to determine pricing and availability.
产品编号 产品描述
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
NWHO-03-04P5-E1/480/3P Heater, 4.5kW. 480V, 3 phase
NWHO-03-006P-E1/480/3P Heater, 6kW, 480V, 3 phase
NWHO-03-006P-E1/240/3P Heater, 6kW, 240V, 3 phase
产品编号 产品描述
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
NWHO-03-04P5-E1/480/3P
NWHO-03-006P-E1/480/3P
NWHO-03-006P-E1/240/3P
NWHO-03-003P-E1/240
NWHO-03-003P-E1/240/3P
NWHO-03-003P-E1/480
NWHO-03-003P-E1/480/3P
NWHO-03-006P-E1/240
NWHO-03-006P-E1/240/3P
NWHO-03-006P-E1/480/3P
NWHO-03-009P-E1/240/1P
NWHO-03-009P-E1/240/3P
NWHO-03-009P-E1/480
NWHO-03-009P-E1/480/3P
NWHO-03-04P5-E1/240
NWHO-03-04P5-E1/240/3P
NWHO-03-04P5-E1/480
NWHO-03-04P5-E1/480/3P
NWHO-03-07P5-E1/480
NWHO-03-07P5-E1/480/3P
