TLC-210A-048/480V
加热器 » 浸没式加热器 » 槽边式浸入式加热器 » TLC and KTLC Series
适用于纯净水溶液的槽边浸入式加热器
RoHS
Copper Sheath Heating Elements
Monel Riser and Junction Box
120, 240, 480 V, 1 & 3 Phase
2 to 18 kW
Optional Thermostat Kits are Available to Fit into Terminal Box
产品描述
FEATURES

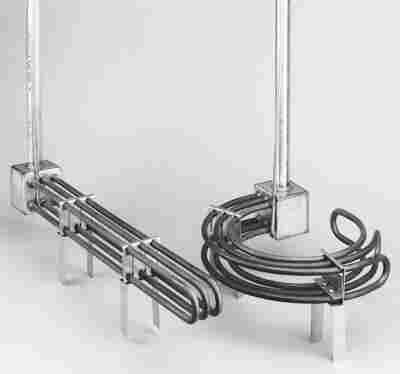

These heaters are lightweight and portable and provide convenient solutions to many heating applications. TLC Series heaters have two or three straight heating elements, while KTLC Series heaters have two or three curved heating elements.
APPLICATIONS
For clean water heating applications (pH 6 to 8).
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.
kW Riser (A)
in (cm) Straight Elements Curved Elements Wt.
Ib (kg)
Min. Tank
Clearance (B)--in (cm) Model No. Min. Tank
Clearance (B)--in (cm) Model No.
Two Elements — Copper, 40 W/in.2
2 36 (91) 12 1/4 (31) TLC-220A-036/120V 10 5/8 (27) KTLC-220A-036/120V 7 (3)
2 36 (91) 12 1/4 (31) TLC-220A-036/* 10 5/8 (27) KTLC-220A-036/* 7 (3)
4 36 (91) 22 1/4 (57) TLC-240A-036/120V 13 3/4 (35) KTLC-240A-036/120V 9 (4)
4 36 (91) 22 1/4 (57) TLC-240A-036/* 13 3/4 (35) KTLC-240A-036/* 9 (4)
6 36 (91) 29 1/2 (75) TLC-260A-036/* 16 1/8 (41) KTLC-260A-036/* 9 (4)
6 48 (121) 29 1/2 (75) TLC-260TI-048/240V – – 11 (5)
8 36 (91) 37 3/8 (95) TLC-280A-036/* 18 5/8 (47) KTLC-280A-036/* 11 (5)
10 48 (121) 45 (103) TLC-210A-048/* 21 1/4 (54) KTLC-210A-048/* 14 (6)
12 48 (121) 52 1/2 (133) TLC-212A-048/* 23 1/2 (59) KTLC-212A-048/* 16 (7)
Three Elements — Copper, 40 W/in2
3 36 (91) 12 1/4 (31) TLC-330A-036/120V 10 5/8 (27) KTLC-330A-036/120V 12 (5)
3 36 (91) 12 1/4 (31) TLC-330A-036/240V/** 10 5/8 (27) KTLC-330A-036/240V/** 12 (5)
3 36 (91) 12 1/4 (31) TLC-330A-036/480V/** 10 5/8 (27) KTLC-330A-036/480V/** 12 (5)
6 36 (91) 22 1/4 (57) TLC-360A-036/120V 13 3/4 (35) KTLC-360A-036/120V 12 (5)
6 36 (91) 22 1/4 (57) TLC-360A-036/240V/** 13 3/4 (35) KTLC-360A-036/240V/** 12 (5)
6 36 (91) 22 1/4 (57) TLC-360A-036/480V/** 13 3/4 (35) KTLC-360A-036/480V/** 12 (5)
9 36 (91) 29 1/2 (75) TLC-390A-036/240V/** 16 1/8 (41) KTLC-390A-036/240V/** 13 (6)
9 36 (91) 29 1/2 (75) TLC-390A-036/480V/** 16 1/8 (41) KTLC-390A-036/480V/** 13 (6)
12 48 (121) 37 3/8 (95) TLC-312A-048/240V/** 18 5/8 (47) KTLC-312A-048/240V/** 16 (8)
12 48 (121) 37 3/8 (95) TLC-312A-048/480V/** 18 5/8 (47) KTLC-312A-048/480V/** 16 (8)
48 (121) 45 (103) TLC-315A-048/480V/** 21 1/4 (54) KTLC-315A-048/480V/** 17 (8)
(133) TLC-318A-048/240V/** 23 1/2 (60) KTLC-318A-048/240V/** 18 (8)
(133) TLC-318A-048/480V/** 23 1/2 (60) KTLC-318A-048/480V/** 18 (8)
* Designate voltage, i.e. insert 240 for 240 for 480 for 480 V.
** Add the suffix “3P” to the model number for 3 phase power.
Optional thermostat kits are available to fit into heater terminal box. See page F-73
产品编号 产品描述
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
TLC-210A-048/240V Heater, 10 kW, 240 V, 1 phase power
TLC-220A-036/120V Heater, 2 kW, 120 V, 1 phase power
KTLC-315A-048/240V Heater, 15kW, 240V, 1 phase power
KTLC-360A-036/240V/3P Heater, 6kW, 240V, 3 phase power
产品编号
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
TLC-210A-048/240V
TLC-220A-036/120V
KTLC-315A-048/240V
KTLC-360A-036/240V/3P
产品型号
TLC-210A-048/240V
TLC-210A-048/480V
TLC-212A-048/240V
TLC-212A-048/480V
TLC-220A-036/120V
TLC-220A-036/240V
TLC-220A-036/480V
TLC-240A-036/120V
TLC-240A-036/240V
TLC-240A-036/480V
TLC-260A-036/120V
TLC-260A-036/240V
TLC-260A-036/480V
TLC-260T1-048/240V
TLC-280A-036/240V
TLC-280A-036/480V
TLC-312A-048/240V
TLC-312A-048/240V/3P
TLC-312A-048/480V
TLC-312A-048/480V/3P
TLC-315A-048/240V
TLC-315A-048/240V/3P
TLC-315A-048/480V
TLC-315A-048/480V/3P
TLC-318A-048/240V
TLC-318A-048/240V/3P
TLC-318A-048/480V
TLC-318A-048/480V/3P
TLC-330A-036/120V
TLC-330A-036/240V
TLC-330A-036/240V/3P
TLC-330A-036/480V
TLC-330A-036/480V/3P
TLC-360A-036/120V
TLC-360A-036/240V
TLC-360A-036/240V/3P
TLC-360A-036/480V
KTLC-318A-048/480V
KTLC-318A-048/480V/3P
KTLC-330A-036/120V
KTLC-330A-036/240V
KTLC-330A-036/240V/3P
KTLC-330A-036/480V
KTLC-330A-036/480V/3P
KTLC-360A-036/120V
KTLC-360A-036/240V
KTLC-360A-036/240V/3P
TLC-360A-036/480V/3P
TLC-390A-036/120V
TLC-390A-036/240V
TLC-390A-036/240V/3P
TLC-390A-036/480V
TLC-390A-036/480V/3P
KTLC-312A-048/240V
KTLC-312A-048/240V/3P
KTLC-312A-048/480V
KTLC-312A-048/480V/3P
KTLC-315A-048/240V
KTLC-315A-048/240V/3P
KTLC-315A-048/480V
KTLC-315A-048/480V/3P
KTLC-318A-048/240V
KTLC-318A-048/240V/3P
KTLC-360A-036/480V
KTLC-360A-036/480V/3P
KTLC-390A-036/120V
KTLC-390A-036/240V
KTLC-390A-036/240V/3P
KTLC-390A-036/480V
KTLC-390A-036/480V/3P
KTLC-210A-048/240V
KTLC-210A-048/480V
KTLC-212A-048/240V
KTLC-212A-048/480V
KTLC-220A-036/120V
KTLC-220A-036/240V
KTLC-220A-036/480V
KTLC-240A-036/120V
KTLC-240A-036/240V
KTLC-240A-036/480V
KTLC-260A-036/120V
KTLC-260A-036/240V
KTLC-260A-036/480V
KTLC-280A-036/240V
KTLC-280A-036/480V
