CHF01164
加热器 » 循环式加热器 » 油循环式加热器 » CHF1_Series

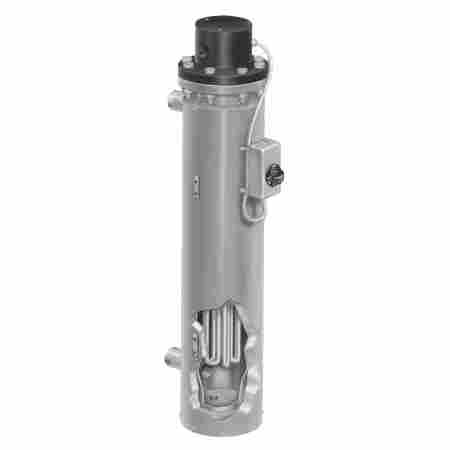

燃料油循环加热器
CHF1_Series
Standard Element Sheath Materials
Incoloy® 800 — A Nickel (30 to 35%), Chromium (19 to 23%), Iron alloy. The high nickel content of this alloy contributes to its resistance to scaling and corrosion. Used in air heating (also see Incoloy® 840) and immersion heating of potable water and other liquids that are not corrosive to an Incoloy® 800 sheath.
Low Carbon Steel — Applications include fluid heat transfer media, tar, high to low viscosity petroleum oils, asphalt, wax, molten salt, and other solutions not corrosive to a steel sheath.
316 Stainless Steel — A Chromium (16 to 18%), Nickel (11 to 14%), Iron Alloy with Molybdenum (2 to 3%) added to improve corrosion resistance in certain environments, especially those that would tend to cause pitting due to the presence of chlorides. Applications include deionized water.
Copper — Mainly used in clean water heating for washrooms, showers, rinse tanks and freeze protection of storage tanks.
产品描述
Surface Treatments for Stainless Steel and Incoloy® Elements and Other Wetted Parts to Improve Corrosion Resistance Flanged immersion heater surfaces in contact with the material being heated can be passivated or electro-polished to improve their resistance to corrosion. Passivation removes surface contamination, usually iron, so that the optimum corrosion resistance of the stainless steel is maintained. Surface contamination would come from the small amount of steel that may be worn off a tool during the manufacturing process. Passivating is accomplished by dipping the heater in a warm solution of nitric acid. Electro-Polishing is an electrochemical process that removes surface imperfections and contaminants, enhancing the corrosion resisting ability of the stainless steels. The resultant surface is clean, smooth and bright. Many medical and food applications require this finish.
8 watts/in2 (1.3 watts/cm2) — Typical Applications: Fuel Oils (Bunker C and Number 6)
Note: 3-Phase only. Cannot be rewired for single phase.
Nominal Pipe Size Dimensional Drawing Number KW Model Number Approx Weight
120V 240V-1Ph (C*) 240V-3Ph (C*) 480V-1Ph (C*) 480V-3Ph (C*) lb kg
21⁄2 NPT 3 elements 2.2 2 — — CHF01100(1) — CHF01101(1) 37 17
2.3 3 — — CHF01102(1) — CHF01101(1) 46 21
3"—150 lb 3 elements 3.2 2 — — CHF01104(1) — CHF01105(1) 62 28
3.3 3 — — CHF01106(1) — CHF01107(1) 76 34
(C*) = Number of Branch Circuits per heater
Circulation Heaters
Nominal Pipe Size Model No. Dimensional Drawing No. KW Approximate Weight
240V-3Ph (C*) 480V-3Ph (C*) lb kg
4"—150 lb 6 elements CHF01108(1) CHF01109(1) 4.3 5 117 53
CHF01110(1) CHF01111(1) 4.3 6 120 54
CHF01112(1) CHF011
CHF01114(1) CHF0118
5"—150 lb 6 elements CHF01116(1) CHF011
CHF01118(1) CHF01119(1) 5.3 6 146 66
CHF01120(1) CHF01121(1) 5.4 8 172 78
CHF01122(1) CHF01123(1) 5.5 10 192 87
5"—150 lb 9 elements CHF01124(1) CHF01125(1) 5.2 7.5 135 61
CHF01126(1) CHF01127(1) 5.3 9 154 70
CHF01128(1) CHF01129(1) 5.4 12 183 83
CHF01130(1) CHF01 93
6"—150 lb 12 elements CHF01132(1) CHF011
CHF01134(1) CHF01 80
CHF01136(1) CHF01 92
CHF01138(1) CHF01139(3
CHF01140(1) CHF01141(
6"—150 lb 15 elements CHF01142(1) CHF01 74
CHF01144(1) CHF01145(
CHF01146(1) CHF01 96
CHF01148(5) CHF01149(
CHF01150(5) CHF01151(
8"—150 lb 18 elements CHF01152(1) CHF01153(3
CHF01154(1) CHF01155(6
CHF01156(1) CHF01157(
CHF01158(2) CHF01159(
CHF01160(2) CHF01161(
8"—150 lb 24 elements CHF01162(1) CHF01163(
CHF01164(2) CHF01165(
CHF01166(2) CHF01167(
CHF01168(2) CHF01169(
CHF01170(2) CHF01171(
10"—150 lb 27 elements CHF01172(3) CHF01173(1) 10.3 30 537 244
CHF01174(3) CHF01175(1) 10.4 35 580 263
CHF01176(3) CHF01177(1) 10.5 40 623 283
12"—150 lb 36 elements CHF01178(3) CHF01179(2) 12.4 47 751 341
CHF01180(3) CHF01181(2) 12.5 54 793 360
14"—150 lb 45 elements CHF01182(3) CHF01183(3)
CHF01184(5) CHF01185(3)
Ordering Examples: CHF01106, 3 KW, 240 Vac, 3 phase circulation heater. CHF01141, 20 KW, 480 Vac, 3 phase circulation heater.
(C*) = Number of Branch Circuits per heater
Note: Nominal pipe size 203 mm (8") and larger are 7 watts/in2 (1.1 watts/cm2)
产品编号 产品描述
Nominal Pipe Size; 4 inch-150 lb 6 elements
CHF01112 240-3Ph, 8 KW, 147 lbs.
Nominal Pipe Size; 5 inch-150 lb 6 elements
CHF01116 240-3Ph, 5 KW, 128 lbs.
Nominal Pipe Size; 8 inch-150 lb 18 elements
CHF01152 240-3Ph, 12.5 KW, 272 lbs.
Nominal Pipe Size; 10 inch-150 lb 27 elements
CHF01172 240-3Ph, 30 KW, 537 lbs.
