QF-121225

加热器 » 辐射式加热器 » QF SERIES
QF SERIES INFRARED PANEL HEATERS

1年保修RoHS
870°C (1600°F) Maximum Operating Temperature
Black Quartz Ceramic Cloth Face
Output Wavelength Between 2.5 and 6 Microns
No External Reflectors Required

产品描述

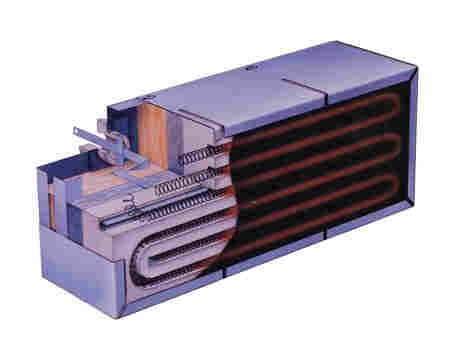

OMEGALUX® QF Series heaters are very popular infrared panel heaters used in a wide variety of applications. The QF series panel heaters’ radiant surface is constructed through a patented process using bonded high temperature cloth quartz. A black coating is applied to the face of the heater for greater emissivity. A 2.5 cm (1") thick ceramic fiber refractory board is grooved out to support the precision resistance coils.

The resistance coil is then housed into the grooved-out refractory board. A of durable, high temperature, cement is used to bond the quartz face to the resistance coils as well as to the refractory coil support. The resistance coils used are an iron/chromium/aluminum alloy which can operate up to 1315°C (2400°F). These are then welded to stainless terminals which are routed to the back of the heater for external electrical connections. The welding insures the best possible electrical path. By changing to stainless buss bars and terminals, the conductivity is increased, insuring less heat buildup in the terminals. The heater board is then backed up by a high temperature insulation to prevent back heat loss. Finally, this is all packaged in a sturdy aluminized steel .

Note: QF series heaters are intended for “radiant” heat. Never let material to be heated come into direct contact with the face of the heater. It is recommended that overtemperature control be used to prevent overheating.

CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel.

Width
cm (in.) Length
cm (in.) Wattage Voltage Phase Without Thermowell
Model No. With Thermowell
Model No. Weight
kg (lb)
10 W/in2
20 1 QF-061210 QF-061210-T 1.4 (3)
120/240 1 QF-061810 QF-061810-T 2.0 (4.5)
120/240 1 QF-062410 QF-062410-T 2.7 (6)
120/240 1 QF-063010 QF-063010-T 3.4 (7.5)
240/480 1 QF-063610 QF-063610-T 4.1(9)
0 240/480 1 QF-064810 QF-064810-T 5.0 (11)
30 (12) 30 (12) 1440 240 1 QF-121210 QF-121210-T 2.7 (6)
30 (12) 46 (0 1 QF-121810 QF-121810-T 3.9 (8.5)
30 (12) 61 (24) 2880 240/480 1 QF-122410 QF-122410-T 5.0 (11)
30 (12) 76 (30) 3600 240/480 1 QF-123010 QF-123010-T 6.1 (13.5)
30 (12) 91 (36) 4320 240/480 1 QF-123610 QF-123610-T 6.8 (15)
30 (12) 122 (48) 5760 240/480 1 QF-124810 QF-124810-T 9.1 (20)
30 (12) 0 or 480 3 QF-126010/* QF-126010/*-T 11.8 (26)
30 (12) 0 or 480 3 QF-127210/* QF-127210/*-T 14.5 (32)
41 (16) 41 (0 1 QF-161610 QF-161610-T 4.5 (10)
61 (24) 61 (24) 5760 240 or 480 Dual QF-242410/* QF-242410/*-T 9.1 (20)
15 W/in2
120/240 1 QF-061215 QF-061215-T 1.4 (3)
120/240 1 QF-061815 QF-061815-T 2.0 (4.5)
240/480 1 QF-062415 QF-062415-T 2.7 (6)
240/480 1 QF-063015 QF-063015-T 3.4 (7.5)
240/480 1 QF-063615 QF-063615-T 4.1(9)
0 240/480 1 QF-064815 QF-064815-T 5.0 (11)
30 (12) 30 (12) 2160 240/480 1 QF-121215 QF-121215-T 2.7 (6)
30 (12) 46 (0 1 QF-121815 QF-121815-T 3.9 (8.5)
30 (12) 61 (24) 4320 240/480 1 QF-122415 QF-122415-T 5.0 (11)
30 (12) 76 (30) 5 QF-123015 QF-123015-T 6.1 (13.5)
30 (12) 9 QF-123615/ QF-123615/-T 6.8 (15)
30 (12) 122 (48) 8640 240 or 480 3 QF-124815/* QF-124815/*-T 9.1 (20)
30 (12) 152 (60) 10800 240 or 480 3 QF-126015/* QF-126015/*-T 11.8 (26)
30 (12) 183 (72) 12960 240 or 480 3 QF-127215/* QF-127215/*-T 14.5 (32)
41 (16) 41 (0 1 QF-161615 QF-161615-T 4.5 (10)
41 (16) 61 (24) 5760 240 or 480 Dual QF-162415/* QF-162415/*-T 6.6 (14.5)
61 (24) 61 (24) 8640 480 Dual QF-242415/480 QF-242415/480-T 9.1 (20)
20 W/in2
120/240 1 QF-061220 QF-061220-T 1.4 (3)
240/480 1 QF-061820 QF-061820-T 2.0 (4.5)
240/480 1 QF-062420 QF-062420-T 2.7 (6)
240/480 1 QF-063020 QF-063020-T 3.4 (7.5)
240/480 1 QF-063620 QF-063620-T 4.1(9)
0 240/480 1 QF-064820 QF-064820-T 5.0 (11)
30 (12) 30 (12) 2880 240/480 1 QF-121220 QF-121220-T 2.7 (6)
30 (12) 46 (0 1 QF-121820 QF-121820-T 3.9 (8.5)
30 (12) 61 (24) 5760 240/480 1 QF-122420 QF-122420-T 5.0 (11)
30 (12) 76 (30) 7200 240 or 480 3 QF-123020/* QF-123020/*-T 6.1 (13.5)
30 (12) 9r 480 3 QF-123620/* QF-123620/*-T 6.8 (15)
30 (12) 122 (48) 11520 240 or 480 3 QF-124820/* QF-124820/*-T 9.1 (20)
30 (12) 152 (60) 14400 240 or 480 3 QF-126020/* QF-126020/*-T 11.8 (26)
30 (12) 183 (72) 17280 240 or 480 3 QF-127220/* QF-127220/*-T 14.5 (32)
41 (16) 41 (16) 5120 240 or 480 Dual QF-161620/* QF-161620/*-T 4.5 (10)
41 (80 Dual QF-162420/480 QF-162420/480-T 6.6 (14.5)
61 (24) 61 (24) 11520 480 Dual QF-242420/480 QF-242420/480-T 9.1 (20)
25 W/in2
120/240 1 QF-061225 QF-061225-T 1.4 (3)
240/480 1 QF-061825 QF-061825-T 2.0 (4.5)
240/480 1 QF-062425 QF-062425-T 2.7 (6)
240/480 1 QF-063025 QF-063025-T 3.4 (7.5)
15 (6) 91 (36) 5 QF-063625 QF-063625-T 4.1(9)
0 240/480 1 QF-064825 QF-064825-T 5.0 (11)
30 (12) 30 (12) 3600 240/480 1 QF-121225 QF-121225-T 2.7 (6)
30 (12) 46 (18) 5 QF-121825 QF-121825-T 3.9 (8.5)
30 (12) 61 (24) 7200 240 or 480 3 QF-122425/* QF-122425/*-T 5.0 (11)
30 (12) 76 (30) 9000 240 or 480 3 QF-123025/* QF-123025/*-T 6.1 (13.5)
30 (12) 9 or 480 3 QF-123625/* QF-123625/*-T 6.8 (15)
30 (12) 122 (48) 14400 240 or 480 3 QF-124825/* QF-124825/*-T 9.1 (20)
30 (12) 152 (60) 18000 240 or 480 3 QF-126025/* QF-126025/*-T 11.8 (26)
30 (12) 183 (72) 21600 240 or 480 3 QF-127225/*† QF-127225/*-T 14.5 (32)
41 (16) 41 (16) 6400 240 or 480 Dual QF-161625/* QF-161625/*-T 4.5 (10)
41 (80 Dual QF-162425/480 QF-162425/480-T 6.6 (14.5)
61 (24) 61 (24) 14400 480 Dual QF-242425/480 QF-242425/480-T 9.1 (20)
*Specify voltage, i.e. insert 240 for 240 V or 480 for 480 V †This heater has two junction boxes at opposite ends of the panel

产品编号  产品描述

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

QF-121210-T  Radiant heaters with thermowell, 12' width, 12' length, 10 W/in2
QF-061210  Radiant heaters without thermowell, 6' width, 12' length, 10 W/in2
QF-064810-T  Radiant heaters with thermowell, 6' width, 48' length, 10W/in2, 2880 Watts Total
QF-061815  Radiant heaters without thermowell, 6' width, 18' length, 15 W/in2
QF-121815-T  Radiant heaters with thermowell, 12' width, 18' length, 15W/in2
QF-063610-T  Radiant heaters with thermowell, 6' width, 36' length, 10 W/in2, 2160 Watts Total
QF-123610-T  Radiant heaters with thermowell, 12' width, 36' length, 10 W/in2, 4320 Watts Total
QF-124825/240  Radiant heaters without thermowell, 12' width, 48' length, 25W/in2
QF-124825/480  Radiant heaters without thermowell 12' width 48' length, 25W/in2
QF-126020/240-T  Radiant heaters with thermowell 12' width 60' length, 20W/in2
QF-126025/480-T  Radiant heater with thermowell 12' width 60' length, 25W/in2
QF-127210/240-T  Radiant heater with thermowell 12' width 72' length, 10W/in2
