DRUCK液压手动泵_PV212压力泵
GE's PV 212 hydraulic hand pump is lightweight, easy to use and generates pressure up to 1000 bar (15,000 psi). It is an ideal tool for calibrating pressure transmitters, pressure transducers, pressure switches and pressure gauges.
PV 212 can be used as a portable pressure comparator in conjunction with various pressure indicating devices. It offers adjustable overpressure protection, fine control and a unique priming/high pressure selector switch.
The features of the PV212 - Hydraulic Hand Pump include:
Features
• Pressures to 10,000 (690 bar) or 15,000 psi (1000 bar)
• Compatible with distilled water or mineral oil
• Quick priming function
• Optional adjustable pressure relief valve

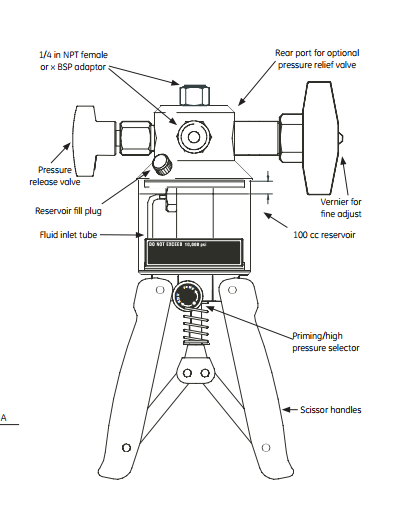

The PV212 is a high quality hand pump designed to quickly and easily generate hydraulic pressures. The materials of construction make it compatible with most fl uid media and an optional seal kit can be supplied for many aggressive applications. The built-in vernier provides excellent control and is easy to adjust even at high pressures.
The dual stage pump includes a selector valve which increases the priming speed and greatly reduces the eff ort required to generate high pressures. An optional pressure relief valve can be supplied to provide protection to connected instruments.
• Hydraulic pressure sources for pressures up to 15,000 psi (1000 bar)• Large volume Pyrex™ reservoir which can be fi lled during operation
• Vernier adjust for fi ne control
• Quick priming and pressure generation
• Optional pressure relief valves
• Pressure release valve off ers outstanding control for decreasing pressures
• “Skydrol”, “Fyrquel”, brake fl uid option available
