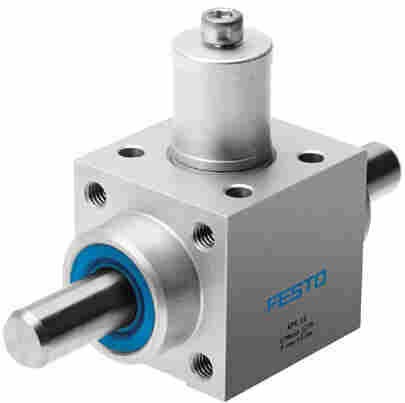

FESTO夹紧装置主要特性,178467型号代码KPE-16
装配位置 任意
夹紧的类型以及动作的方向 位于两端
由弹簧夹紧，由压缩空气释放
设计结构 倾斜的碟片
派生型 单端活塞杆
工作压力 <= 10 bar
小释放压力 3 bar
需要被夹取的圆形材料 16 mm
耐腐蚀等级 CRC 2 – 中等腐蚀影响
Valve terminal VTOM-D-E3-P-L-L-Q4-16-M1-K (575820)
Valve terminal VTOM-D-E3-P-L-L-Q4-24-M1-K (575821)
Valve terminal VTOM-D-E3-P-L-L-Q4-32-M1-K (575822)
Valve terminal VTOM-D-E3-P-L-L-Q4-40-M1-K (575823)
Valve terminal VTOM-D-E3-P-L-L-Q4-48-M1-K (575824)
Valve terminal VTOM-D-E3-P-L-L-Q4-56-M1-K (575825)
环境温度 -10 ... 80 °C
静态保持力 1,000 N
产品重量 410 g
密封件的材料信息 NBR
TPE-U(PU)
弹簧的材料信息 弹簧钢
外壳的材料信息 铝
阳极氧化处理
夹头的材料信息 黄铜
活塞的材料信息 POM
FESTO夹紧装置主要特性,178467型号代码KPE-16
Valve terminal 10P-14-4C-AE-N-Y-CLLM+V (526042)
Valve terminal CPA14-VI (174001)
Valve terminal CPV10-VI (18200)
Valve terminal CPV14-VI (18210)
Valve terminal CPV18-VI (18220)
Valve terminal MPA-ASI-VI (546279)
Valve terminal MPA-CPI-VI (546280)
Valve terminal MPA-FB-VI (530411)
Valve terminal MPAF-FB-VI (544397)
Valve terminal MPAF-MPM-VI (544398)
Valve terminal MPAL-VI (569926)
Valve terminal MPA-MPM-VI (539105)
Valve terminal VIFB-03-B (18980)
Valve terminal VMPAL-MP-DL-001 (574006)
Valve terminal VTOM-D-E3-P-L-L-16-K (564234)
Valve terminal VTOM-D-E3-P-L-L-24-K (564235)
Valve terminal VTOM-D-E3-P-L-L-32-K (564236)
Valve terminal VTOM-D-E3-P-L-L-40-K (564237)
Valve terminal VTOM-D-E3-P-L-L-48-K (564238)
Valve terminal VTOM-D-E3-P-L-L-56-K (564239)
Valve terminal VTOM-D-E3-P-L-L-64-K (564240)
Valve terminal VTOM-D-E3-P-L-L-80-K (564242)
Valve terminal VTOM-D-E3-P-L-L-88-K (564243)
Valve terminal VTOM-D-E3-P-L-L-8-K (564233)
Valve terminal VTOM-D-E3-P-L-L-96-K (564244)
Valve terminal VTOM-D-E3-P-L-L-Q4-8-K (574634)
Valve terminal VTOM-D-E3-P-L-L-Q4-8-M1-K (575819)
Valve terminal VTSA-ASI (555564)
Valve terminal VTSA-ASI-NPT (555565)
Valve terminal VTSA-F-ASI (555566)
Valve terminal VTSA-F-ASI-NPT (555567)
Valve terminal VTSA-FB (539217)
Valve terminal VTSA-FB-NPT (539218)
Valve terminal VTSA-F-FB (547965)
Valve terminal VTSA-F-FB-NPT (547966)
Valve terminal VTSA-F-MP (547963)
Valve terminal VTSA-F-MP-NPT (547964)
Valve terminal VTSA-MP (539215)
Valve terminal VTSA-MP-NPT (539216)
Valve terminal VTUB (537662)
Valve VOFC-L- (3344863)
