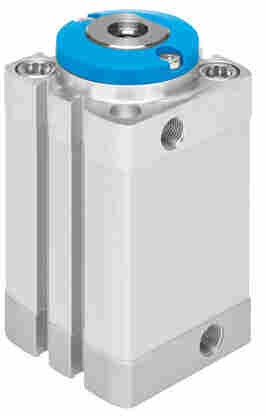

FESTO柱销带抗扭转型气缸,DFSP-Q-40-25-DF-PA
缸径16 20 32 40 50
工作介质压缩空气，符合ISO 8573-1:2010 [7:4:4]
工作/先导介质注意事项可采用润滑介质（必须以后始终采用润滑介质）
小工作压力
不带弹簧[bar] 1
带弹簧[bar] 2.8 1.6 1.2 1.2 1.2
大工作压力[bar] 10
环境温度1) [°C] –10 … +80
耐腐蚀等级CRC2)
行程 25 mm 活塞直径 40 mm
活塞杆螺纹 M8
缓冲 P: 两端带弹性缓冲环/板
装配位置 任意
工作模式 双作用
设计结构 活塞活塞杆型材缸筒抗旋转
位置检测 用于接近式传感器
活塞杆末端 阴螺纹
派生型 抗旋转活塞杆
防止扭转/导向 扁平活塞杆
工作压力 1 ... 10 bar
耐腐蚀等级 CRC 2 – 中等腐蚀影响
环境温度 -10 ... 80 °C
冲击力 5,540 N
在切换操作时的许用侧向力 1,108 N
大循环频率 5 Hz
安装类型 可选带通孔
具有内（阴）螺纹带附件
气动连接 G1/8
柱(头)螺栓的材料信息 钢, 镀锌
盖子的材料信息 锻造铝合金阳极氧化处理
密封件的材料信息 TPE-U(PU)
活塞杆的材料信息 高合金钢, 耐腐蚀
滚轴的材料说明 钢, 镀锌
气缸缸筒的材料信息 锻造铝合金光滑处理
FESTO柱销带抗扭转型气缸,DFSP-Q-40-25-DF-PA
Soft start valve MS4-DE (527713)
Soft start valve MS4-DE-1/4-10V24 (542558)
Soft start valve MS4-DE-1/4-10V24-Z (542559)
Soft start valve MS4-DE-1/4-V110 (529519)
Soft start valve MS4-DE-1/4-V110-Z (529520)
Soft start valve MS4-DE-1/4-V230 (529521)
Soft start valve MS4-DE-1/4-V230-Z (529522)
Soft start valve MS4-DE-1/4-V24 (529523)
Soft start valve MS4-DE-1/4-V24-EX2:D (541547)
Soft start valve MS4-DE-1/4-V24-EX2-Z:D (541548)
Soft start valve MS4-DE-1/4-V24-Z (529524)
Soft start valve MS4-DE-1/8-10V24 (542560)
Soft start valve MS4-DE-1/8-10V24-Z (542561)
Soft start valve MS4-DE-1/8-V110 (529525)
Soft start valve MS4-DE-1/8-V110-Z (529526)
Soft start valve MS4-DE-1/8-V230 (529527)
Soft start valve MS4-DE-1/8-V230-Z (529528)
Soft start valve MS4-DE-1/8-V24 (529529)
Soft start valve MS4-DE-1/8-V24-Z (529530)
Soft start valve MS4-DL (527711)
Soft start valve MS4-DL-1/4 (529531)
Soft start valve MS4-DL-1/4-Z (529532)
Soft start valve MS4-DL-1/8 (529533)
Soft start valve MS4-DL-1/8-Z (529534)
Soft start valve MS6-DE (527686)
Soft start valve MS6-DE-1/2-10V24 (542562)
Soft start valve MS6-DE-1/2-10V24-Z (542563)
Soft start valve MS6-DE-1/2-V110 (529799)
Soft start valve MS6-DE-1/2-V110-Z (529800)
Soft start valve MS6-DE-1/2-V230 (529801)
Soft start valve MS6-DE-1/2-V230-Z (529802)
Soft start valve MS6-DE-1/2-V24 (529803)
Soft start valve MS6-DE-1/2-V24-EX2:D (541536)
Soft start valve MS6-DE-1/2-V24-EX2-Z:D (541537)
Soft start valve MS6-DE-1/2-V24-Z (529804)
Soft start valve MS6-DE-1/4-10V24 (542564)
Soft start valve MS6-DE-1/4-10V24-Z (542565)
Soft start valve MS6-DE-1/4-V110 (529805)
Soft start valve MS6-DE-1/4-V110-Z (529806)
Soft start valve MS6-DE-1/4-V230 (529807)
Soft start valve MS6-DE-1/4-V230-Z (529808)
Soft start valve MS6-DE-1/4-V24 (529809)
Soft start valve MS6-DE-1/4-V24-Z (529810)
Soft start valve MS6-DE-3/8-10V24 (542566)
Soft start valve MS6-DE-3/8-10V24-Z (542567)
Soft start valve MS6-DE-3/8-V110 (529811)
Soft start valve MS6-DE-3/8-V110-Z (529812)
Soft start valve MS6-DE-3/8-V230 (529813)
Soft start valve MS6-DE-3/8-V230-Z (529814)
Soft start valve MS6-DE-3/8-V24 (529815)
Soft start valve MS6-DE-3/8-V24-Z (529816)
Soft start valve MS6-DL (527684)
Soft start valve MS6-DL-1/2 (529817)
Soft start valve MS6-DL-1/2-Z (529818)
Soft start valve MS6-DL-1/4 (529819)
Soft start valve MS6-DL-1/4-Z (529820)
Soft start valve MS6-DL-3/8 (529821)
Soft start valve MS6-DL-3/8-Z (529822)
Soft start valve-SET MS4-DE-1/4-V110 (529563)
Soft start valve-SET MS4-DE-1/4-V110-Z (529564)
Soft start valve-SET MS4-DE-1/4-V230 (529565)
Soft start valve-SET MS4-DE-1/4-V230-Z (529566)
Soft start valve-SET MS4-DE-1/4-V24-Z (529568)
Soft start valve-SET MS4-DE-1/8-V110 (529569)
Soft start valve-SET MS4-DE-1/8-V110-Z (529570)
Soft start valve-SET MS4-DE-1/8-V230 (529571)
Soft start valve-SET MS4-DE-1/8-V230-Z (529572)
Soft start valve-SET MS4-DE-1/8-V24 (529573)
Soft start valve-SET MS4-DE-1/8-V24-Z (529574)
Soft start valve-SET MS4-DL-1/4 (529575)
Soft start valve-SET MS4-DL-1/4-Z (529576)
Soft start valve-SET MS4-DL-1/8 (529577)
Soft start valve-SET MS4-DL-1/8-Z (529578)
Soft start valve-SET MS6-DE-1/2-V110 (529865)
Soft start valve-SET MS6-DE-1/2-V110-Z (529866)
Soft start valve-SET MS6-DE-1/2-V230 (529867)
Soft start valve-SET MS6-DE-1/2-V230-Z (529868)
Soft start valve-SET MS6-DE-1/2-V24-Z (529870)
Soft start valve-SET MS6-DE-1/4-V110 (529871)
Soft start valve-SET MS6-DE-1/4-V110-Z (529872)
Soft start valve-SET MS6-DE-1/4-V230 (529873)
Soft start valve-SET MS6-DE-1/4-V230-Z (529874)
Soft start valve-SET MS6-DE-1/4-V24 (529875)
Soft start valve-SET MS6-DE-1/4-V24-Z (529876)
Soft start valve-SET MS6-DE-3/8-V110 (529877)
Soft start valve-SET MS6-DE-3/8-V110-Z (529878)
Soft start valve-SET MS6-DE-3/8-V230 (529879)
Soft start valve-SET MS6-DE-3/8-V230-Z (529880)
Soft start valve-SET MS6-DE-3/8-V24 (529881)
Soft start valve-SET MS6-DE-3/8-V24-Z (529882)
Soft start valve-SET MS6-DL-1/2 (529883)
Soft start valve-SET MS6-DL-1/2-Z (529884)
Soft start valve-SET MS6-DL-1/4 (529885)
Soft start valve-SET MS6-DL-1/4-Z (529886)
Soft start valve-SET MS6-DL-3/8 (529887)
Soft start valve-SET MS6-DL-3/8-Z (529888)

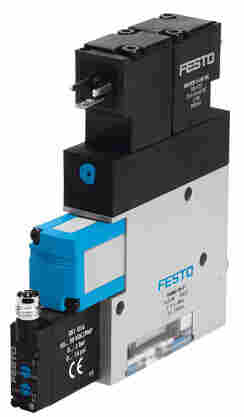

Soft start/quick exhaust valve MS6-SV (548713)
