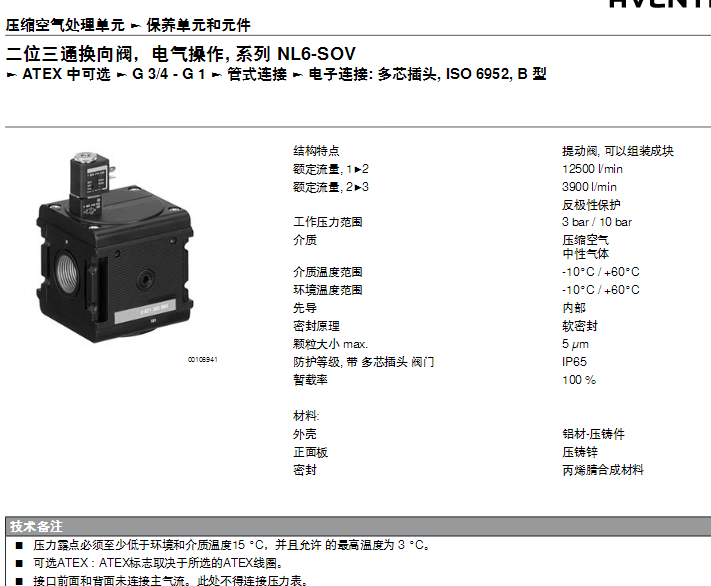

安沃驰二位三通换向阀技术参数
二位三通换向阀，电气操作, 系列 NL6-SOV
► ATEX 中可选
► G 3/4 - G 1
► 管式连接
► 电子连接: 多芯插头, ISO 6952, B 型
公司地址：上海黄浦区北京东路668号科技京城东楼27-C1室
联 系 人：张小姐
电话：【直线】
手 机：
公司传真：
Q Q： 1482435966
邮 箱：1482435966@qq.com
调压阀, 系列 NL6-RGS
G 3/4 - G 1→Qn= 15000 l/min→操作：机械式→适合ATEX
安装位置 任意
工作压力范围 0,5 bar / 20 bar
介质 压缩空气 中性气体
介质温度范围 -10°C / +60°C
环境温度范围 -10°C / +60°C
调节器型号 隔膜式调压阀, 可以组装成块
调整功能 带二次排气
调节范围 小/大 0,5 bar / 10 bar
压力输送 单的
大值. 自通风耗用量 0,5 l/min
材料:
外壳 铝材-压铸件
正面板 压铸锌
密封 丙烯树胶
压力露点必须至少低于环境和介质温度15°C，并且允许 的高温度为3°C。
操作方式：安装角（固定角）1821336017/封锁件 1827009593。
用密封塞关闭调压阀后部的压力表接口，前部敞开。可根据客户应用另行配备密封塞。请单独订购。
建议的初级过滤：5μm。
工作原理
力士乐六通换向阀主要由阀体、密封组件、凸轮、阀杆、手柄和阀盖等零部件组成(图1)。阀门由手柄驱动，通过手柄带动阀杆与凸轮旋转，凸轮具有定位驱动与锁定密封组件的开启与关闭功能。手柄逆时针旋转，两组密封组件分别在凸轮的作用下关闭下端的两个通道，上端的两个通道分别与管道装置的进口相通。反之，上端的两个通道关闭，下端两个通道与管道装置的进口相通，实现了不停车换向。
力士乐六通换向阀
1上阀盖 2手柄 3阀杆 4凸轮 5密封组件 6阀盖 7阀体
(1)力士乐六通阀的阀体由隔板分成两腔，每腔都有3个通道，中间为进油口，两端为出油口。阀体为碳钢板焊结构，体积小，质量轻，结构紧凑，提高了材料的利用率，缩短了生产周期，降低了成本。密封面堆焊不锈钢，防锈耐腐蚀，密封面经过精加工后抛光研磨，表面粗糙度Ra≤0.8μm。
(2)六通阀有两组密封组件。每组密封组件(图2)由阀瓣、密封圈、调整块、调节螺钉、夹板和螺栓组成。阀瓣为碳钢板焊件，设有加强筋，即增加阀瓣强度又起导向作用，保证每组阀瓣间的同轴度。阀瓣上镶嵌聚氨脂橡胶圈，该材料具有耐油、耐磨损、性能稳定、密封良好和使用寿命长的特点。在凸轮的作用下，密封圈的球面与阀体密封面相接触产生挤压弹性变形，达到密封效果。调整块和调节螺钉在两组密封组件不能同步到位时可起调整作用，确保各通道密封性能同步到位。
在气动技术中，空气过滤器、减压阀和油雾器称为气动三大件。为得到多种功能往往将这三种气源处理元件按顺序组装在一起，称为气动三联件。用于气源净化过滤、减压和提供润滑。
三大件的安装顺序按进气方向依次为空气过滤器、减压阀、油雾器。三大件是多数气动系统中不可缺少的气源装置，安装在用气设备近处，是压缩空气质量的后保证，其设计和安装，除确保三大件自身质量外，还要考虑节省空间、操作安装方便、可任意组合等因素。
分类
(1)力士乐机动换向阀，机动换向阀又称行程阀。
(2)力士乐电磁换向阀，电磁换向阀是利用电磁吸引力操纵阀芯换位的方向控制阀。
(3)力士乐电液换向阀，电液换向阀是由电磁换向阀和液动换向阀组成的复合阀。
(4)力士乐手动换向阀，手动换向阀是用手推杠杆操纵阀芯换位的方向控制阀。
