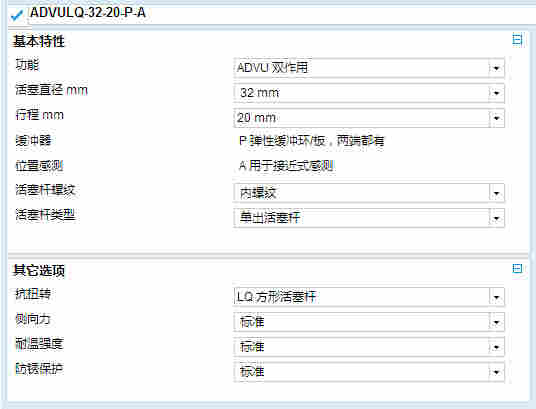

气缸两端带弹性缓冲环/板安装,ADVULQ-32-20-P-A
CPE18-M1H-5J-1/4
CPE18-M1H-5J-QS-8
CPE18-M3H-5L-1/4
CPE18-M3H-5J-1/4
CPE18-M1H-3OL-1/4
CPE18-M1H-3GL-1/4
现场总线模块CTEU/安装系统CTEL
技术参数– I-Port 接口/IO-Link，用于阀岛VTUG
Festo 特有标准化接口，安装总线节点CTEU 后直接连接现场总线或通过电缆直接连接IO-Link 主站（IO-Link 模式）。
主要技术参数
通信方式IO-Link电接口M12 插头, 5针
A编码金属螺纹，用于屏蔽
波特率COM3 [kbps] 230.4
COM2 [kbps] 38.4
固有电流消耗, 逻辑电源PS [mA] 30
固有电流消耗, 阀电源PL [mA] 30
电磁线圈大数量VAEM-L1-S-8-PT 16
VAEM-L1-S-16-PT 32
VAEM-L1-S-24-PT 48
阀位大数量VAEM-L1-S-8-PT 8
VAEM-L1-S-16-PT 16
VAEM-L1-S-24-PT 24
气缸两端带弹性缓冲环/板安装,ADVULQ-32-20-P-A
环境温度[°C] –5 … +50
防护等级，符合EN 60529 IP67
LED 显示颜色状态功能
状态LED X1 红/绿熄灭无24 V 逻辑电压
2 绿灯常亮一切正常
3 绿灯闪烁通信错误(I-Port 或IO-Link 协议)
4 红/绿等交替闪烁负载电压错误（欠压或无负载电源）
5 红灯常亮负载电压错误和通信错误
针脚分配I-Port 接口/IO-Link
针脚分配说明
1 24VEL/SEN 工作电压(电子元件、传感器/输入)
2 24VVAL/OUT 负载电源(阀/输出)
3 0VEL/SEN 工作电压(电子元件、传感器/输入)
4 C/Q 数据通信
5 0VVAL/OUT 负载电源(阀/输出)
