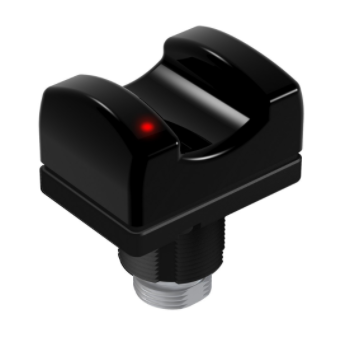

优惠价格BANNER邦纳光学触摸按钮OTBVP6QD
产品特性：
技术规格
增强型外壳设计，越NEMA 6P和IEC IP67标准，可承受 1200 psi 水冲刷
电源，信号强度和输出信号采用高亮度LED指示灯显示
标准型提供信号输出延时或7段LED信号强度显示功能
有对射式，偏振和非偏振反射板式，直反式，聚焦式，激光，玻璃光纤和塑料光纤可选择
有DC，AC,AC/DC两用型可选择，也可连接现场总线
提供雷射反射板式和NAMUR型
Housing Style Base
Primary Housing Material Thermoplastic Polysulfone
Product Type Actuator
Function Optical
Mounting Thread 30 mm
Connection Type Integral QD
QD Type/Cable Length 7/8 in. (Mini)
Number of Pins/Conductors 4
Operation Normally Open/Normally Closed
Supply Voltage 10-30 V dc
Output Type PNP
Base Diameter (mm) 30
Width/Diameter (mm) 59.9
Environmental Rating IP66
NEMA Rating NEMA 1, 3, 4, 4X, 12, 13
Max Op. Temperature (°C) 50
Min Op. Temperature (°C) -20
Field Cover Color Black
Button Operation Momentary
Feature: Chemical Resistant No
Feature: Non-Illuminated Yes
