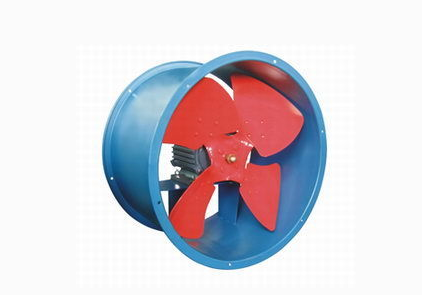

EG节能型管道通风机
所属类别：轴流式通风机
技术参数
EG系列具有噪声低、风量大、耗电少、结构合理等特点。是目前化工、轻工、民用建筑、高级宾馆、工矿企业、车间仓库等场所作防暑降温，通风换气使用或于用一般工业管道加压、送风、排风、屋顶通风使用。
The EG series has the characteristics of low noise, large wind volume, low power consumption, and reasonable structure. It is currently used in chemical, light industry, civilian buildings, senior hotels, industrial and mining enterprises, workshop warehouses and other places for heat prevention and cooling, ventilation and air use or use of general industrial pipelines to pressurize, send wind, exhaust wind, and ventilation on the roof.
|
机 号 |
功 率 |
电 压 |
转 速 |
流 量 |
全 压 |
|
(NO) |
(KW) |
(V) |
r/min |
m³/h |
Pa |
|
EG-2A-2 |
0.18 |
220/380 |
2800 |
600-940 |
80-60 |
|
EG-2.5A-4 |
0.18 |
220/380 |
1400 |
790-1460 |
45-24 |
|
EG-2.5A-2 |
0.25 |
220/380 |
2800 |
1200-1740 |
168-126 |
|
EG-3A-4 |
0.205 |
220/380 |
1400 |
980-1988 |
54-27 |
|
EG-3A-2 |
0.3 |
220/380 |
2800 |
2025-3552 |
208-144 |
|
EG-3.5A-4 |
0.3 |
220/380 |
1400 |
1989-2980 |
92-25 |
|
EG-3.5A-2 |
0.38 |
220/380 |
2800 |
3740-5029 |
271-175 |
|
EG-4A-4 |
0.46 |
220 |
1400 |
2675-4970 |
150-98 |
|
EG-4A-4 |
0.46 |
380 |
1400 |
2675-4970 |
150-98 |
|
EG-4A-2 |
0.58 |
220/380 |
2800 |
5000-8000 |
352-131 |
|
EG-5A-4 |
0.66 |
220 |
1400 |
3238-6198 |
159-95 |
|
EG-5A-4 |
0.66 |
380 |
1400 |
3238-6198 |
159-95 |
|
EG-5A-2 |
1.5 |
380 |
2800 |
7103-9552 |
347-158 |
|
EG-5A-2 |
2.2 |
380 |
2800 |
5219-9552 |
452-158 |
|
EG-5.6A-4 |
1.1 |
380 |
1400 |
6990-10950 |
284-129 |
|
EG-6A-4 |
1.8 |
380 |
1420 |
11500-16780 |
288-171 |
