GN 1130
吊环销
|
标准件 |

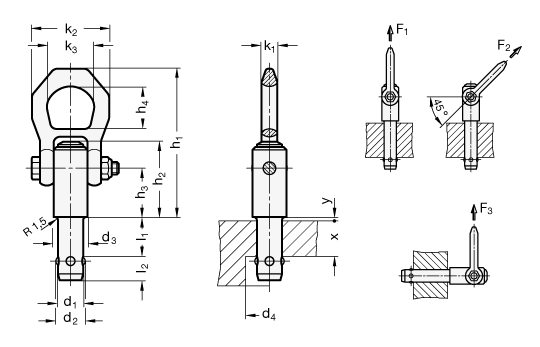

主尺寸 |
额定载荷 kN* |
重量 |
|||||||||||||||||
|
物料号 |
说明 |
d1 |
l1 +1 |
d2 |
d3 |
d4 min |
h1 |
h2 |
h3 |
h4 |
k1 |
k2 |
k3 |
l2 |
xmin. |
y |
F1 |
F2 |
F3 |
g |
|
800424 |
GN 1130-8-10-ST |
8 |
10 |
9.35 |
21.5 |
9.9 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
8.75 |
5 |
1.5 |
1.5 |
1.2 |
0.5 |
220 |
|
800426 |
GN 1130-8-15-ST |
8 |
15 |
9.35 |
21.5 |
9.9 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
8.75 |
5 |
1.5 |
1.5 |
1.2 |
0.5 |
226 |
|
800428 |
GN 1130-8-25-ST |
8 |
25 |
9.35 |
21.5 |
9.9 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
8.75 |
10 |
1.5 |
1.5 |
1.2 |
0.5 |
229 |
|
800430 |
GN 1130-8-35-ST |
8 |
35 |
9.35 |
21.5 |
9.9 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
8.75 |
20 |
1.5 |
1.5 |
1.2 |
0.5 |
232 |
|
800398 |
GN 1130-10-15-ST |
10 |
15 |
11.7 |
21.5 |
12.2 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
10.2 |
5 |
1.5 |
2.7 |
2.4 |
2.1 |
227 |
|
800400 |
GN 1130-10-25-ST |
10 |
25 |
11.7 |
21.5 |
12.2 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
10.2 |
15 |
1.5 |
2.7 |
2.4 |
2.1 |
236 |
|
800402 |
GN 1130-10-35-ST |
10 |
35 |
11.7 |
21.5 |
12.2 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
10.2 |
25 |
1.5 |
2.7 |
2.4 |
2.1 |
243 |
|
800404 |
GN 1130-10-50-ST |
10 |
50 |
11.7 |
21.5 |
12.2 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
10.2 |
40 |
1.5 |
2.7 |
2.4 |
2.1 |
252 |
|
800406 |
GN 1130-12-15-ST |
12 |
15 |
14.2 |
21.5 |
14.7 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
11 |
5 |
1.5 |
3.5 |
3.2 |
2.8 |
243 |
|
800408 |
GN 1130-12-25-ST |
12 |
25 |
14.2 |
21.5 |
14.7 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
11 |
10 |
1.5 |
3.5 |
3.2 |
2.8 |
247 |
|
800410 |
GN 1130-12-35-ST |
12 |
35 |
14.2 |
21.5 |
14.7 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
11 |
20 |
1.5 |
3.5 |
3.2 |
3.8 |
258 |
|
800412 |
GN 1130-12-50-ST |
12 |
50 |
14.2 |
21.5 |
14.7 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
11 |
35 |
1.5 |
3.5 |
3.2 |
2.8 |
267 |
|
800414 |
GN 1130-16-25-ST |
16 |
25 |
18.6 |
25 |
19.2 |
92.8 |
47.5 |
31 |
27 |
9.5 |
49 |
30 |
15.1 |
10 |
1.5 |
4.8 |
4.5 |
4.1 |
318 |
|
800416 |
GN 1130-16-50-ST |
16 |
50 |
18.6 |
25 |
19.2 |
92.8 |
47.5 |
31 |
27 |
9.5 |
49 |
30 |
15.1 |
15 |
1.5 |
4.8 |
4.5 |
4.1 |
350 |
|
800418 |
GN 1130-16-75-ST |
16 |
75 |
18.6 |
25 |
19.2 |
92.8 |
47.5 |
31 |
27 |
9.5 |
49 |
30 |
15.1 |
35 |
1.5 |
4.8 |
4.5 |
4.1 |
392 |
|
800420 |
GN 1130-20-50-ST |
20 |
50 |
24.5 |
30 |
25 |
114 |
55.9 |
36.5 |
32.6 |
11 |
56 |
36 |
19.7 |
25 |
1.5 |
10 |
8.5 |
6.5 |
440 |
|
800422 |
GN 1130-20-75-ST |
20 |
70 |
24.5 |
30 |
25 |
114 |
55.9 |
36.5 |
32.6 |
11 |
56 |
36 |
19.7 |
45 |
1.5 |
10 |
8.5 |
6.5 |
480 |
|
800423 |
GN 1130-8-10-NI |
8 |
10 |
9.35 |
21.5 |
9.9 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
8.75 |
5 |
1.5 |
1.5 |
1.2 |
0.5 |
228 |
|
800425 |
GN 1130-8-15-NI |
8 |
15 |
9.35 |
21.5 |
9.9 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
8.75 |
5 |
1.5 |
1.5 |
1.2 |
0.5 |
229 |
|
800427 |
GN 1130-8-25-NI |
8 |
25 |
9.35 |
21.5 |
9.9 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
8.75 |
10 |
1.5 |
1.5 |
1.2 |
0.5 |
233 |
|
800429 |
GN 1130-8-35-NI |
8 |
35 |
9.35 |
21.5 |
9.9 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
8.75 |
20 |
1.5 |
1.5 |
1.2 |
0.5 |
236 |
|
800397 |
GN 1130-10-15-NI |
10 |
15 |
11.7 |
21.5 |
12.2 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
10.2 |
5 |
1.5 |
2.7 |
2.4 |
2.1 |
233 |
|
800399 |
GN 1130-10-25-NI |
10 |
25 |
11.7 |
21.5 |
12.2 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
10.2 |
15 |
1.5 |
2.7 |
2.4 |
2.1 |
238 |
|
800401 |
GN 1130-10-35-NI |
10 |
35 |
11.7 |
21.5 |
12.2 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
10.2 |
25 |
1.5 |
2.7 |
2.4 |
2.1 |
260 |
|
800403 |
GN 1130-10-50-NI |
10 |
50 |
11.7 |
21.5 |
12.2 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
10.2 |
40 |
1.5 |
2.7 |
2.4 |
2.1 |
255 |
|
800405 |
GN 1130-12-15-NI |
12 |
15 |
14.2 |
21.5 |
14.7 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
11 |
5 |
1.5 |
3.5 |
3.2 |
2.8 |
242 |
|
800407 |
GN 1130-12-25-NI |
12 |
25 |
14.2 |
21.5 |
14.7 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
11 |
10 |
1.5 |
3.5 |
3.2 |
2.8 |
253 |
|
800409 |
GN 1130-12-35-NI |
12 |
35 |
14.2 |
21.5 |
14.7 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
11 |
20 |
1.5 |
3.5 |
3.2 |
3.8 |
260 |
|
800411 |
GN 1130-12-50-NI |
12 |
50 |
14.2 |
21.5 |
14.7 |
87.5 |
38.5 |
25.7 |
27 |
9.5 |
49 |
30 |
11 |
35 |
1.5 |
3.5 |
3.2 |
2.8 |
268 |
|
800413 |
GN 1130-16-25-NI |
16 |
25 |
18.6 |
25 |
19.2 |
92.8 |
47.5 |
31 |
27 |
9.5 |
49 |
30 |
15.1 |
10 |
1.5 |
4.8 |
4.5 |
4.1 |
316 |
|
800415 |
GN 1130-16-50-NI |
16 |
50 |
18.6 |
25 |
19.2 |
92.8 |
47.5 |
31 |
27 |
9.5 |
49 |
30 |
15.1 |
15 |
1.5 |
4.8 |
4.5 |
4.1 |
355 |
|
800417 |
GN 1130-16-75-NI |
16 |
75 |
18.6 |
25 |
19.2 |
92.8 |
47.5 |
31 |
27 |
9.5 |
49 |
30 |
15.1 |
35 |
1.5 |
4.8 |
4.5 |
4.1 |
398 |
|
800419 |
GN 1130-20-50-NI |
20 |
50 |
24.5 |
30 |
25 |
114 |
55.9 |
36.5 |
32.6 |
11 |
56 |
36 |
19.7 |
25 |
1.5 |
10 |
8.5 |
6.5 |
398 |
|
800421 |
GN 1130-20-75-NI |
20 |
70 |
24.5 |
30 |
25 |
114 |
55.9 |
36.5 |
32.6 |
11 |
56 |
36 |
19.7 |
45 |
1.5 |
10 |
8.5 |
6.5 |
438 |
按钮
铝制，红色阳极氧化处理。
弹簧
不锈钢。
可供应以下标准型号
- ST：钢制螺杆、锁扣，磷酸锰热处理。
- NI：AISI 630 螺杆，耐久硬化处理。AISI 316Ti 支架。
特征及应用

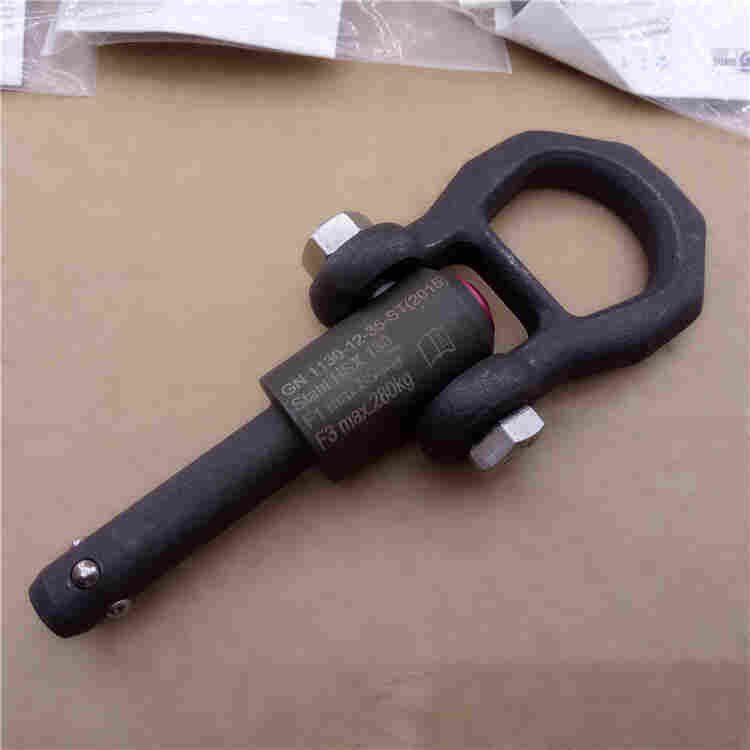

GN 1130 吊环销是采用快捷拆装设计的吊装元件。按下红色铝制按钮即可解除锁珠的锁定状态，使得承重销头插入销孔或从销孔拔出。带有安全法兰的吊环至少可旋转180°，法兰作为防止意外误操作的安全装置。根据拉伸方向的变化，球头承重螺栓可在固定孔内360°自由旋转。
采用该产品，就不必在工件上保留吊装和起重装置（如：承重环）。固定孔的公差只需符合d1 H11，便足堪使用。
附件
夹紧衬套 GN 1132（另外购买）
| 800431 | 1132-10-15-M20X1,5-A |
| 800432 | 1132-10-35-M20-A |
| 800433 | 1132-12-15-M24X1,5-A |
| 800434 | 1132-12-35-M24-A |
| 800435 | 1132-16-25-M30X2-A |
| 800436 | 1132-16-50-M30-A |
| 800437 | 1132-20-50-M36X2-A |
| 800438 | 1132-8-10-M16X1,5-A |
| 800439 | 1132-8-25-M16-A |
