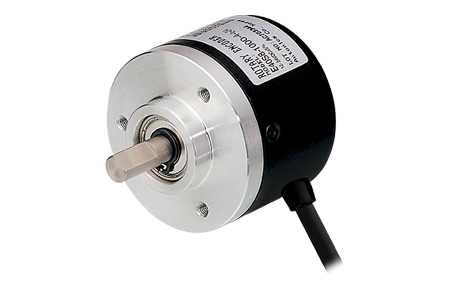

E40S6-10-3-N-24旋转编码器
轴外径 : Ø6mm
蕞大响应频率 : 300kHz
蕞大允许转速 : 5000rpm
启动力矩 : Max.40gf.cm(Max.0.00392N.m)
分辨率 : 10(P/R)
控制输出 : NPN集电极开路
电源电压 : 12-24VDC ±5%(纹波 P-P: Max.5%)
连接线缆类型 : 径向配线引出型
防护等级 : IP50
E40S6-10-3-N-24旋转编码器的数据表：
|
轴外径 |
Ø6mm |
|
蕞大响应频率 |
300kHz |
|
蕞大允许转速 |
5000rpm |
|
启动力矩 |
Max.40gf.cm(Max.0.00392N.m) |
|
分辨率 |
10(P/R) |
|
输出相 |
A, B, Z |
|
控制输出 |
NPN集电极开路 |
|
电源电压 |
12-24VDC ±5%(纹波 P-P: Max.5%) |
|
连接线缆类型 |
径向配线引出型 |
|
防护等级 |
IP50 |
|
|
CE |
|
环境温度 |
-10~70℃, 存储时: -25~85℃ |
|
环境湿度 |
35~85%RH, 存储时: 35~90%RH |
|
附件 |
Ø6mm联轴器标配, Ø8mm联轴器(另售) |
|
重量 |
约120g |
※脉冲仅适用于A，B相(线性驱动输出 A,A(-), B,B(-) 相).
