GA01 GA02 GA05
重力式位置指示器
ELESA 原创设计
|
标准件 |
转动比 |

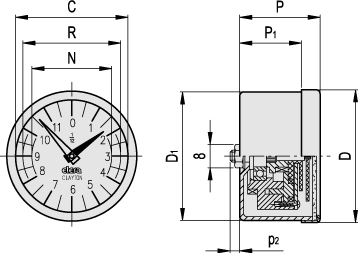

主尺寸 |
刻度盘 |
重量 |
|||||||||
|
顺时针 |
逆时针 |
||||||||||||
|
代码 |
说明 |
代码 |
说明 |
D |
P |
D1 |
P1 |
p2 |
C |
R |
N |
g |
|
|
CE.20001 |
GA01-0002-D |
CE.20002 |
GA01-0002-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20021 |
GA01-0004-D |
CE.20022 |
GA01-0004-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20031 |
GA01-0005-D |
CE.20032 |
GA01-0005-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20041 |
GA01-0006-D |
CE.20042 |
GA01-0006-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20061 |
GA01-0008-D |
CE.20062 |
GA01-0008-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20081 |
GA01-0010-D |
CE.20082 |
GA01-0010-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
GA01-0012-D |
GA01-0012-S |
12 |
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
||
|
CE.20141 |
GA01-0015-D |
CE.20142 |
GA01-0015-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20151 |
GA01-0016-D |
CE.20152 |
GA01-0016-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
GA01-0020-D |
GA01-0020-S |
20 |
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
||
|
CE.20211 |
GA01-0024-D |
CE.20212 |
GA01-0024-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20217 |
GA01-0030-D |
CE.20218 |
GA01-0030-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20224 |
GA01-0036-D |
CE.20225 |
GA01-0036-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20231 |
GA01-0040-D |
CE.20232 |
GA01-0040-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20234 |
GA01-0048-D |
CE.20235 |
GA01-0048-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20237 |
GA01-0050-D |
CE.20238 |
GA01-0050-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20244 |
GA01-0060-D |
CE.20245 |
GA01-0060-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20251 |
GA01-0072-D |
CE.20252 |
GA01-0072-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20257 |
GA01-0100-D |
CE.20258 |
GA01-0100-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20261 |
GA01-0120-D |
CE.20262 |
GA01-0120-S |
|
49.6 |
30 |
48.3 |
20.5 |
1.6 |
42 |
37 |
30 |
140 |
|
CE.20287 |
GA02-0002-D |
CE.20288 |
GA02-0002-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20294 |
GA02-0004-D |
CE.20295 |
GA02-0004-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20297 |
GA02-0005-D |
CE.20298 |
GA02-0005-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
GA02-0006-D |
GA02-0006-S |
6 |
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
||
|
CE.20351 |
GA02-0008-D |
CE.20352 |
GA02-0008-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
GA02-0010-D |
GA02-0010-S |
10 |
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
||
|
GA02-0012-D |
GA02-0012-S |
12 |
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
||
|
CE.20541 |
GA02-0015-D |
CE.20542 |
GA02-0015-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20551 |
GA02-0016-D |
CE.20552 |
GA02-0016-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
GA02-0020-D |
GA02-0020-S |
20 |
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
||
|
GA02-0024-D |
GA02-0024-S |
24 |
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
||
|
GA02-0030-D |
GA02-0030-S |
30 |
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
||
|
GA02-0036-D |
GA02-0036-S |
36 |
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
||
|
CE.20911 |
GA02-0040-D |
CE.20912 |
GA02-0040-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20917 |
GA02-0048-D |
CE.20918 |
GA02-0048-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20921 |
GA02-0050-D |
CE.20922 |
GA02-0050-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20931 |
GA02-0060-D |
CE.20932 |
GA02-0060-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20941 |
GA02-0072-D |
CE.20942 |
GA02-0072-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20951 |
GA02-0100-D |
CE.20952 |
GA02-0100-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20956 |
GA02-0120-D |
CE.20957 |
GA02-0120-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20961 |
GA02-0150-D |
CE.20962 |
GA02-0150-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20973 |
GA02-0200-D |
CE.20974 |
GA02-0200-S |
|
68.4 |
32 |
67.0 |
19.3 |
1.0 |
60 |
51 |
44 |
210 |
|
CE.20987 |
GA05-0002-D |
CE.20988 |
GA05-0002-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.20994 |
GA05-0004-D |
CE.20995 |
GA05-0004-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.20997 |
GA05-0005-D |
CE.20998 |
GA05-0005-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.21101 |
GA05-0006-D |
CE.21102 |
GA05-0006-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.21151 |
GA05-0008-D |
CE.21152 |
GA05-0008-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.21201 |
GA05-0010-D |
CE.21202 |
GA05-0010-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
GA05-0012-D |
GA05-0012-S |
12 |
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
||
|
CE.21341 |
GA05-0015-D |
CE.21342 |
GA05-0015-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.21351 |
GA05-0016-D |
CE.21352 |
GA05-0016-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
GA05-0020-D |
GA05-0020-S |
20 |
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
||
|
GA05-0024-D |
GA05-0024-S |
24 |
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
||
|
GA05-0030-D |
GA05-0030-S |
30 |
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
||
|
GA05-0036-D |
GA05-0036-S |
36 |
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
||
|
CE.21751 |
GA05-0040-D |
CE.21752 |
GA05-0040-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.21801 |
GA05-0048-D |
CE.21802 |
GA05-0048-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.21851 |
GA05-0050-D |
CE.21852 |
GA05-0050-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
GA05-0060-D |
GA05-0060-S |
60 |
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
||
|
CE.21951 |
GA05-0072-D |
CE.21952 |
GA05-0072-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
GA05-0100-D |
GA05-0100-S |
100 |
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
||
|
CE.22111 |
GA05-0120-D |
CE.22112 |
GA05-0120-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.22151 |
GA05-0150-D |
CE.22152 |
GA05-0150-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
CE.22173 |
GA05-0200-D |
CE.22174 |
GA05-0200-S |
|
112.7 |
32 |
111.0 |
18.8 |
1.0 |
102 |
89 |
76 |
420 |
|
其他可供转动比（*少订货量为5件） |
应要求可提供以下特殊型号 |
|
|
GA01 |
2,4,5,6,8,10,15,16,24,30,36,40,48,50,60,72,100,120 |
特殊刻度盘-特殊转动比-充液-单指针-表面 |
|
GA02 |
2,4,5,8,15,16,40,48,50,60,72,100,120,150,200 |
|
|
GA05 |
2,4,5,6,8,10,15,16,40,48,50,72,100,120,150,200 |
|
|
|
|
|
Technical information
重力式位置指示器适用于装在水平或*倾斜角度为60°的主轴上的手轮或旋钮(参见 重力式位置指示器说明)（参见第464页）。
欲选择手轮，参见 "手轮/旋钮与指示器的合理装配"表（参见第464页）。
