西门子6AU1435-2AD00-0AA0产品介绍
西门子6AU1435-2AD00-0AA0由上海帝工业控制设备有限公司提供西门子

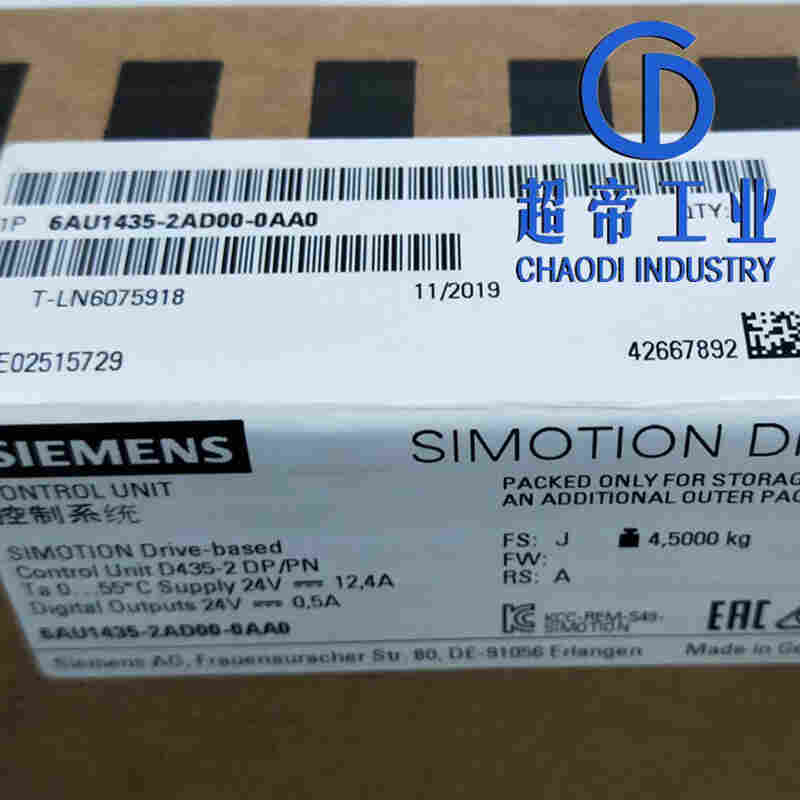

6AU1435-2AD00-0AA0
SIMOTION D435-2 DP/PN
· 产品信息细节
· 技术数据
技术数据
SIMOTION Drive- | |
Article number | 6AU1435-2AD00-0AA0 |
Product brand name | SIMOTION |
Product type designation | D435-2 DP/PN |
Performance class for motion control system | STANDARD Performance |
Version of the motion control system | Multiple-axis system |
PLC and motion control performance | |
Number of axes / maximum | 32 |
Minimum PROFIBUS cycle clock | 1 ms |
Minimum PROFINET send cycle clock | 0.25 ms |
Minimum interpolator cycle clock | 0.25 ms |
Minimum servo cycle clock | 0.25 ms |
note | 0.25 ms for SERVO or SERVO-FAST |
Integrated drive control | |
Maximum number of axes for integrated drive control | |
servo | 6 |
vector | 6 |
V/f | 12 |
note | Alternative control modes; drive control |
Memory | |
RAM (work memory) | 105 Mbyte |
Additional RAM work memory for Java applications | 20 Mbyte |
RAM disk (load memory) | 50 Mbyte |
Retentive memory | 364 kbyte |
Persistent memory (user data on CF) | 300 Mbyte |
Communication | |
Interfaces | |
DRIVE-CLiQ | 6 |
USB | 2 |
Industrial Ethernet | 2 |
PROFIBUS | 2 |
— note | Equidistant and isochronous; Can be configured as master or slave |
PROFINET | 1 |
— note | 1 interface with 3 ports onboard 1 interface with 4 ports optional via CBE30-2 functionality: - supports PROFINET / EtherNet/IP IO with IRT and RT - configurable as PROFINET / EtherNet/IP IO Control and/or device - supports media redundancy (MRP and MRPD) |
General technical data | |
Fan | Double fan/battery module included in scope of delivery |
DC supply voltage | |
rated value | 24 V |
minimum | 20.4 V |
maximum | 28.8 V |
Consumed current / typical | 1 000 mA |
Note | with no load on inputs/outputs, no 24 V supply via DRIVE-CLiQ and PROFIBUS interface |
Making current, typ. | 5 A |
Power loss, typ. | 24 W |
Ambient temperature, during | |
long-term storage | -25 ... +55 °C |
transport | -40 ... +70 °C |
operation | 0 ... 55 °C |
— note | Maximum installation altitude 4000 m (13124 ft) above sea level. Above an altitude of 2000 m (6562 ft), the maximum ambient temperature decreases by 7 °C (12.6 °F) per 1000 m (3281 ft). |
Relative humidity | |
during operation | 5 ... 95 % |
without condensation, tested acc. to IEC 60068-2-38 | Wert fehlt |
Product property / Conformal coating | No |
Resistance | |
to biologically active substances, / conformity acc. to EN 60721-3-3 | No |
to chemically active substances, / conformity acc. to EN 60721-3-3 | No |
Air pressure | 620 ... 1 060 hPa |
Degree of protection | IP20 / UL open type |
Height | 380 mm |
Width | 50 mm |
Depth | 270 mm |
Note | When the spacer is removed 230 mm (9.05 in) deep |
Net weight | 3 700 g |
