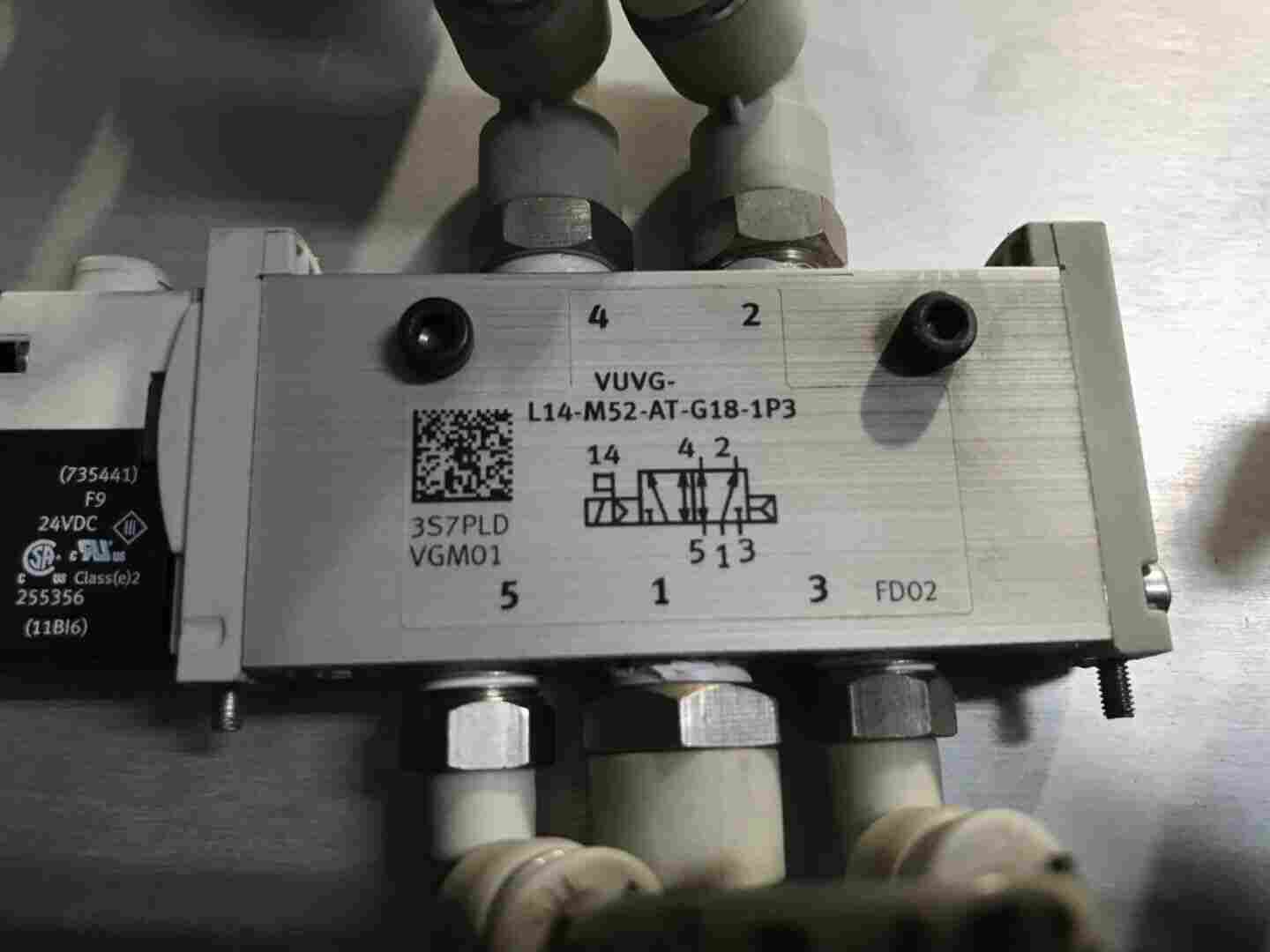

气源控制换向阀,VUVG-L14-M52-AT-G18-1P3
系列VUVG 用于标准应用的方向控制阀
版本Extended features
结构原理Piston spool with sealing cartridge
换向阀的类型L 管式阀
规格14 规格14
气动接口G18 G1/8
阀功能M52 5/2-way valve, monostable
单电控阀的复位方式A 气弹簧
电接口P3 不带电连接板
先导气源内部先导气
额定工作电压1 24 V DC
手控装置T Manual override push-in/detenting
排气不带接头
电路不具有保持状态电流下降功能
先导类型 由先导控制
先导气源 内置的
先导压力 2.5 ... 8 bar
适合真空 否
切换时间，关闭 22 ms
切换时间，打开 14 ms
持续通电率
逻辑为0的大正向测试脉冲 700 µs
逻辑为1的大负向测试脉冲 900 µs
线圈的特性参数 24 V DC: 1 W
24 V DC: 低电流相位 0.3 W, 高电流相位1.0 W
