FESTO活塞杆采用外螺纹气缸,ADN-32-15-I-P-A 536280
上海乾拓贸易有限公司，网址：www.qtgyp.com

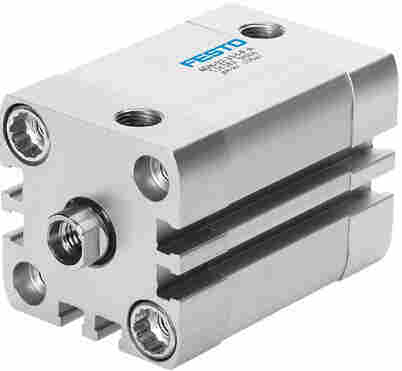

FESTO 气缸 ADN-32-15-I-P-A 536280
FESTO 气缸 ADN-25-20-I-P-A 536262
FESTO 气缸 ADN-25-25-I-P-A 536263
FESTO 气缸 ADN-20-50-I-P-A 536249
紧凑型气缸ADN-12-5-A-P-A产品代号:536204
具有位置感测以及活塞杆外螺纹
AND/AEN系列紧凑型气缸符合ISO21287标准。AND/AEN的特点就是外形小巧、派生型号多、应用广泛。由于采用的是模块化结构，因此可根据个别需要进行配置。
双作用:ADN缸径:12到125mm
行程:标准行程从5到80mmX行程:1到500mm
活塞杆螺纹：内或外螺纹，视需要而定
单作用:AEN缸径:12到100mm行程:X行程，从1到25mm
活塞杆螺纹：内或外螺纹，视需要而定
通过在气缸侧槽中安装接近开关进行位置感测，可选的开关有:
电气方式:SM*-8(接触或非接触式)气动方式:SMPO*
带活塞杆的气缸:有紧凑型气缸,短行程气缸,扁平气缸,圆形气缸,小型气缸,螺纹形气缸或不锈钢气缸等
耐腐蚀等级 CRC 2 – 中等腐蚀影响
环境温度 -20 ... 80 °C
在终端位置的冲击能量 0.4 J
6 bar时的理论作用力，回复行程 415 N
6 bar时的理论作用力，进程 483 N
0 mm行程时的移动质量 60 g
每10 mm 行程所增加的重量 30 g
0 mm行程时的基本重量 265 g
每 10 mm 行程的附加质量系数 9 g
FESTO活塞杆采用外螺纹气缸,ADN-32-15-I-P-A 536280
