德国海隆HERION液压阀产品示意图
海隆阀技术24010
阀要求:
1)动作灵活，作用可靠，工作时冲击和振动小，噪声小，使用寿命长。
2)流体通过液压阀时，压力损失小;阀口关闭时，密封性能好，内泄漏小，无外泄漏。
3)所控制的参量(压力或流量)稳定，受外部干扰时变化量小。
4)结构紧凑，安装、调试、使用、维护方便，通用性好 。
Design
The pressure relief valves of Type D B S and the
sequence valves of Type D Z S are indirectly-controlled
seat valves.
Actuation

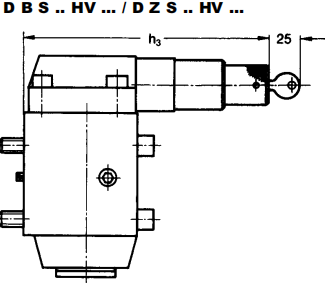

The pressure is set manually by means of a rotary
knob. The setting can, if desired, be safeguarded by
means of locking (E-10-closure) or by means of a lead
seal.
Mounting
The units are bolted on subplates and sealed by
O-rings.
Line connection
Subplate, interface to DIN 24 340 and ISO 6264
