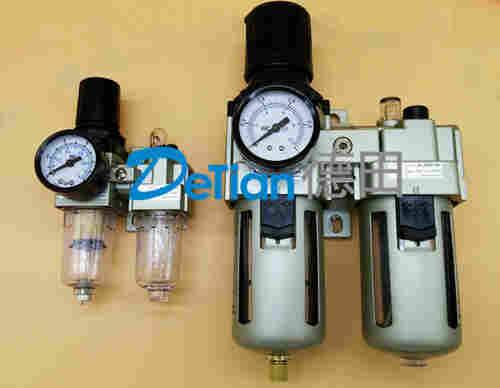

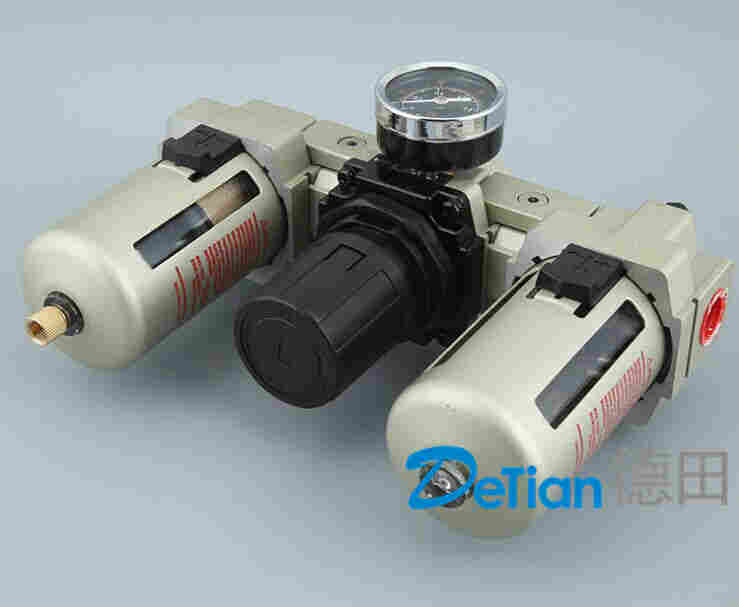

WAC2000--5000系列气源处理三联件
| 型号 | 规格 | 配件 | ||||||||
| 组件 | 额定流量 | 接管口径 | 压力表口径 | 重量 | 托架 | 压力表 | ||||
| 过滤器 | 减压阀 | 油雾器 | (l/min) | G | G | (kg) | (2个) | |||
| WAC2000-01 | WAF2000 | WAR2000 | WAL2000 | 500 | 1/8" | 1/8" | 0.74 | Y20L | G36-10-01 | |
| WAC2000-02 | WAF2000 | WAR2000 | WAL2000 | 500 | 1/4" | 1/8" | 0.74 | Y20L | ||
| WAC3000-02 | WAF3000 | WAR3000 | WAL3000 | 2000 | 1/4" | 1/8" | 1.18 | Y30L | ||
| WAC3000-03 | WAF3000 | WAR3000 | WAL3000 | 2000 | 3/8" | 1/8" | 1.18 | Y30L | ||
| WAC4000-03 | WAF4000 | WAR4000 | WAL | " | 1/4" | 2.14 | Y30L | |||
| WAC4000-04 | WAF4000 | WAR4000 | WAL | " | 1/4" | 2.14 | Y30L | |||
| WAC4000-06 | WAF4000-06 | WAR4000-06 | WAL | 3/4" | 1/4" | 2.47 | Y40L | G46-10-02 | ||
| WAC5000-06 | WAF5000 | WAR5000 | WAL5000 | 5000 | 3/4" | 1/4" | 3.82 | Y60L | ||
| WAC5000-10 | WAF5000 | WAR5000 | WAL5000 | 5000 | 1" | 1/4" | 3.82 | Y60L | ||
| 型号 | 口径G | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| WAC2000 | 1/8"～1/4" | 6.8 | 30 | 50 | 24 | 5.5 | 8.5 | 5 | 22 | 23 | 50 | ||||
| WAC3000 | 1/4"～3/8" | 60.8 | 41 | 64 | 35 | 7 | 11 | 7 | 34.2 | 26 | 70.5 | ||||
| WAC4000 | 3/8"～1/2" | 238 | 191.5 | 41 | 70 | 65.5 | 50 | 84 | 40 | 9 | 13 | 7 | 42.2 | 33 | 88 |
| WAC4000－06 | 3/4" | 253 | 193 | 40.5 | 70 | 69.5 | 50 | 89 | 40 | 9 | 13 | 7 | 46.2 | 36 | 88 |
| WAC5000 | 3/4"～1" | 300 | 271.5 | 48 | 90 | 75.5 | 69.8 | 105 | 50 | 12 | 15 |
| 保证耐压力 | 1.5MPa |
| *高使用压力 | 1.0MPa |
| 环境及流体温度 | 5～60°C |
| 过滤度 | 25um |
| 建议用油 | 透平1号油ISOVG32 |
| 容器材料 | 聚碳酸脂 |
| 防护罩 | WAC2000（无）/WAC2500-5000（有） |
| 调压范围 | 0.05-0.85MPa |
| 阀型 | 带溢流型 |
