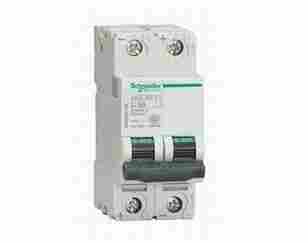

K 系列 断路器及漏电保护断路器
911503
DPNK2-K 1P+N 32A C 230V 6kA
911504
DPNK2-K 1P+N 40A C 230V 6kA
911508
C65N-K 1P 10A C 230V 6kA
911509
C65N-K 1P 16A C 230V 6kA
911510
C65N-K 1P 20A C 230V 6kA
MGN911515
DPNa-K C 10
MGN911516
DPNa-K C 16
MGN911517
DPNa-K C 20
MGN911522
DPNa vigi-K C 10 30mA
MGN911523
DPNa vigi-K C 16 30mA
MGN911524
DPNa vigi-K C 20 30mA
C120H 断路器
技术参数
标 准:
IEC 60898/GB 10963
脱扣曲线:
C/D
额定电压: AC 230/400V
额定电流:
63-125A
分断能力: 10kA
Reference
De
ion
订货号 说明
C120 H
19800 C120H 1P C 63A
19808 C120H 1P C 80A
19816 C120H 1P C 100A
19824 C120H 1P C 125A
19801 C120H 2P C 63A
19809 C120H 2P C 80A
19817 C120H 2P C 100A
19825 C120H 2P C 125A
19802 C120H 3P C 63A
19810 C120H 3P C 80A
19818 C120H 3P C 100A
19826 C120H 3P C 125A
19803 C120H 4P C 63A
19811 C120H 4P C 80A
19819 C120H 4P C 100A
19827 C120H 4P C 125A
19804 C120H 1P D 63A
19812 C120H 1P D 80A
19820 C120H 1P D 100A
19828 C120H 1P D 125A
19805 C120H 2P D 63A
19813 C120H 2P D 80A
19821 C120H 2P D 100A
19829 C120H 2P D 125A
19806 C120H 3P D 63A
19814 C120H 3P D 80A
19822 C120H 3P D 100A
19830 C120H 3P D 125A
19807 C120H 4P D 63A
19815 C120H 4P D 80A
19823 C120H 4P D 100A
19831 C120H 4P D 125A
C120L断路器
技术参数
标 准: IEC 60898/GB 10963
脱扣曲线: C/D
额定电压: AC 230/400V
额定电流: 63-125A
分断能力: 15kA
Reference Deion
订货号 说明
C120 L
19832 C120L 1P 63A C
19840 C120L 1P 80A C
19848 C120L 1P 100A C
19856 C120L 1P 125A C
19833 C120L 2P 63A C
19841 C120L 2P 80A C
19849 C120L 2P 100A C
19857 C120L 2P 125A C
19834 C120L 3P 63A C
19842 C120L 3P 80A C
19850 C120L 3P 100A C
19858 C120L 3P 125A C
19835 C120L 4P 63A C
19843 C120L 4P 80A C
19851 C120L 4P 100A C
19859 C120L 4P 125A C
19836 C120L 1P 63A D
19844 C120L 1P 80A D
19852 C120L 1P 100A D
19860 C120L 1P 125A D
19837 C120L 2P 63A D
19845 C120L 2P 80A D
19853 C120L 2P 100A D
19861 C120L 2P 125A D
19838 C120L 3P 63A D
19846 C120L 3P 80A D
19854 C120L 3P 100A D
19862 C120L 3P 125A D
19839 C120L 4P 63A D
19847 C120L 4P 80A D
19855 C120L 4P 100A D
19863 C120L 4P 125A D
Vigi C120电磁式漏电保护附件
技术参数
标 准: IEC 61009/GB 16917
额定电压: AC 230/400V
额定电流: ≤125A
额定剩余动作电流: 30/300/500/300 s mA/AC类
Reference Deion
订货号 说明
Vigi C120
18563 AC class 30mA 2P
18564 AC class 300mA 2P
18544 AC class 300mAs 2P
18566 AC class 30mA 3P
18567 AC class 300mA 3P
18568 AC class 500mA 3P
18546 AC class 300mAs 3P
18569 AC class 30mA 4P
18570 AC class 300mA 4P
18571 AC class 500mA 4P
18548 AC class 300mAs 4P
NG125H 断路器
技术参数
标 准: IEC 60947-2/GB 14048.2
脱扣曲线: C/D
*工作电压: AC 500V
额定电流: 10-80A
分断能力: 36kA
Reference Deion
订货号 说明
18705 NG125H C 10A 1P
18706 NG125H C 16A 1P
18707 NG125H C 20A 1P
18708 NG125H C 25A 1P
18709 NG125H C 32A 1P
18710 NG125H C 40A 1P
18711 NG125H C 50A 1P
18712 NG125H C 63A 1P
18713 NG125H C 80A 1P
18714 NG125H C 10A 2P
18715 NG125H C 16A 2P
18716 NG125H C 20A 2P
18717 NG125H C 25A 2P
18718 NG125H C 32A 2P
18719 NG125H C 40A 2P
18720 NG125H C 50A 2P
18721 NG125H C 63A 2P
18722 NG125H C 80A 2P
18723 NG125H C 10A 3P
18724 NG125H C 16A 3P
18725 NG125H C 20A 3P
18726 NG125H C 25A 3P
18727 NG125H C 32A 3P
18728 NG125H C 40A 3P
18729 NG125H C 50A 3P
18730 NG125H C 63A 3P
18731 NG125H C 80A 3P
18732 NG125H C 10A 4P
18733 NG125H C 16A 4P
18734 NG125H C 20A 4P
18735 NG125H C 25A 4P
18736 NG125H C 32A 4P
18737 NG125H C 40A 4P
18738 NG125H C 50A 4P
18739 NG125H C 63A 4P
18740 NG125H C 80A 4P
Reference Deion
订货号 说明
19350 NG125H D 10A 1P
19351 NG125H D 16A 1P
19352 NG125H D 20A 1P
19353 NG125H D 25A 1P
19354 NG125H D 32A 1P
19355 NG125H D 40A 1P
19356 NG125H D 50A 1P
19357 NG125H D 63A 1P
19358 NG125H D 80A 1P
19359 NG125H D 10A 2P
19360 NG125H D 16A 2P
19361 NG125H D 20A 2P
19362 NG125H D 25A 2P
19363 NG125H D 32A 2P
19364 NG125H D 40A 2P
19365 NG125H D 50A 2P
19366 NG125H D 63A 2P
19367 NG125H D 80A 2P
19368 NG125H D 10A 3P
19369 NG125H D 16A 3P
19370 NG125H D 20A 3P
19371 NG125H D 25A 3P
19372 NG125H D 32A 3P
19373 NG125H D 40A 3P
19374 NG125H D 50A 3P
19375 NG125H D 63A 3P
19376 NG125H D 80A 3P
19377 NG125H D 10A 4P
19378 NG125H D 16A 4P
19379 NG125H D 20A 4P
19380 NG125H D 25A 4P
19381 NG125H D 32A 4P
19382 NG125H D 40A 4P
19383 NG125H D 50A 4P
19384 NG125H D 63A 4P
19385 NG125H D 80A 4P
