示波器探头TCP0020

示波器探头TCP0020的产品介绍

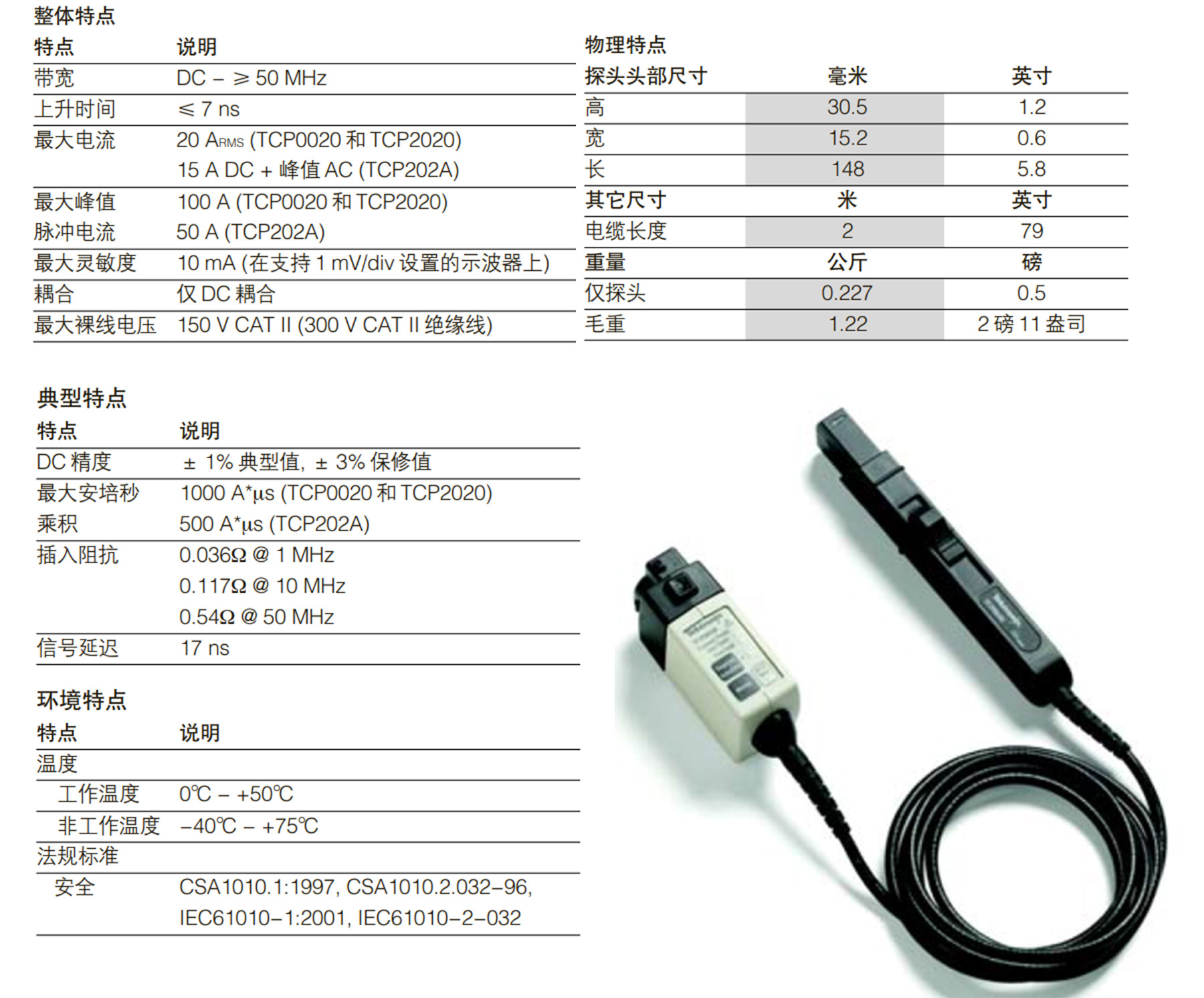

示波器探头TCP0020由深圳市新博恩电子仪器有限公司现货销售示波器探头TCP0020,TCP0020、TCP2020和TCP202A是简便易用的高性能AC/DC 电流探头家族，设计用于各种示波器。TCP0020 设计采用 TekVPITM 探头接口直接连接示波器，TCP202A 设计采用 TekProbeTM 探头接口直接连接示波器。TCP2020 设计用于带 有 BNC 输入及>100 k??输入端接的任何仪器。

这些AC/DC电流探头提供了足够的性能，可以支持50 MHz测 量系统带宽。TCP0020 和 TCP2020 提供了* 20 ARMS 的量 程，TCP202A 提供了* 15 A DC + 峰值 AC 的量程。这些 探头还提供了*低 10 m 的*的电流精度，这对满足当前极 具挑战性的电流测量需求至关重要。

Features & Benefits

• Easy-to-Use and Accurate AC/DC Current Measurements
• DC to >50 MHz Bandwidth
• Core Jaw Diameter of 5 mm (0.2 in.)
• Accurately Measures Current Levels as Low as 10 mA per Division
• High Accuracy with Typically Less than 1% DC Gain Error
• Split-core Construction allows Easy Circuit Connection
• Low Noise and DC Drift

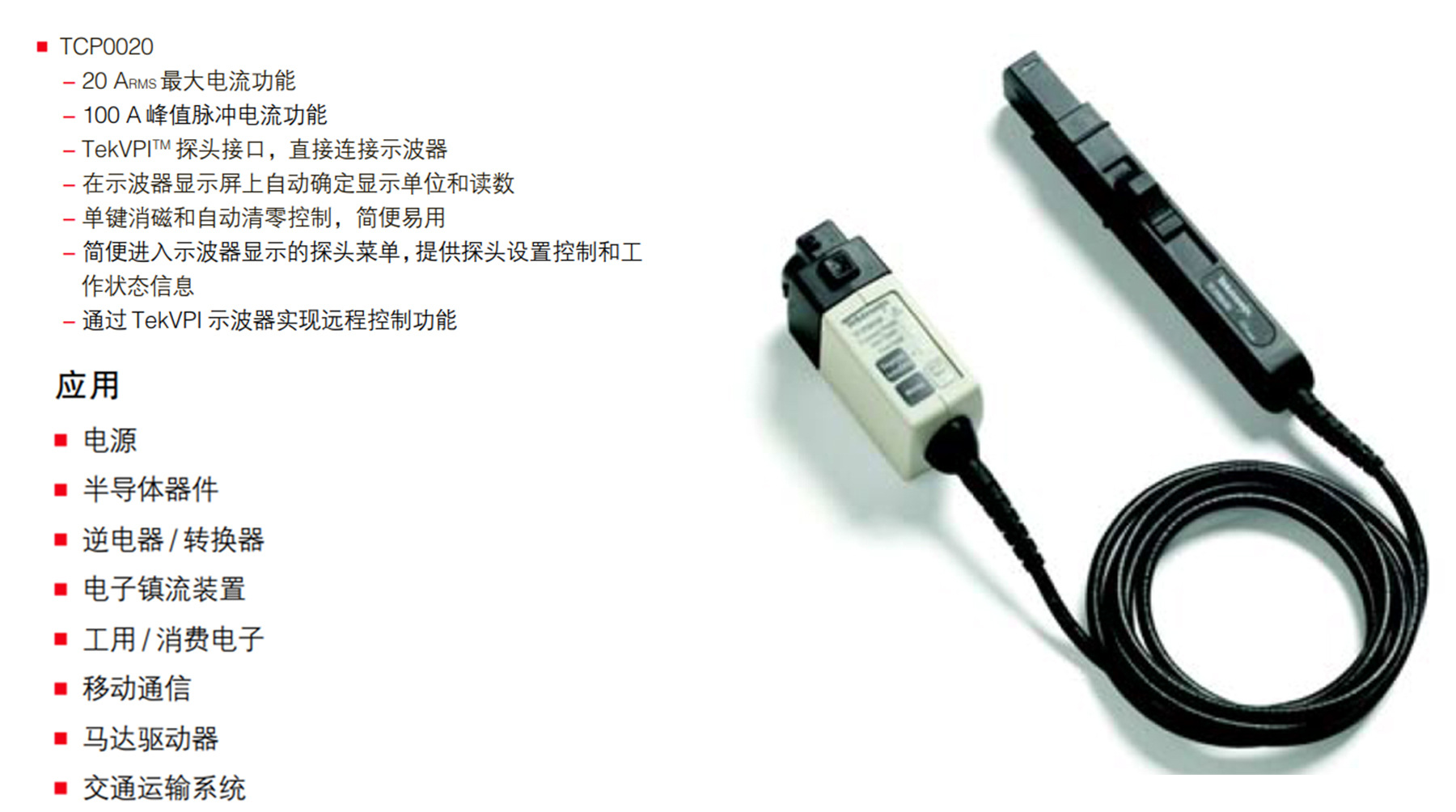

• TCP0020
• 20 ARMS Maximum Current Capability
• 100 A Peak Pulse Current Capability
• Connects Directly to Oscilloscopes with the TekVPI™ Probe Interface
• Provides Automatic Units Scaling and Readout on the Oscilloscope Display
• One-button Degauss and AutoZero Control for Ease of Use
• Easy Access to Scope-displayed Probe Menu for Probe Setup Control and Operating Status Information
• Remote Control Capability through TekVPI Oscilloscope
• TCP2020
• 20 ARMS Maximum Current Capability
• 100 A Peak Pulse Current Capability
• 10 mA/mV Sensitivity
• BNC Output Connects to Most Oscilloscopes and Other Measurement Equipment (>100 kΩ Termination Required)
• Degauss Button and Thumbwheel for DC Offset Adjustment
• Powered by an AC Adapter
• TCP202A
• 15 ADC + Peak AC Maximum Current Capability
• 50 A Peak Pulse Current Capability
• Connects Directly to Oscilloscopes with the TekProbe™ Interface
• Provides Automatic Units Scaling and Readout on the Oscilloscope Display
• Degauss Button and Thumbwheel for DC Offset Adjustment
• Safety Certified

Applications

• Power Supplies
• Semiconductor Devices
• Power Inverter/Converters
• Electronic Ballasts
• Industrial/Consumer Electronics
• Mobile Communications
• Motor Drives
• Transportation Systems

TCP0020, TCP2020, TCP202A

The TCP0020, TCP2020, and TCP202A are a family of high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.

These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range, while the TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.
