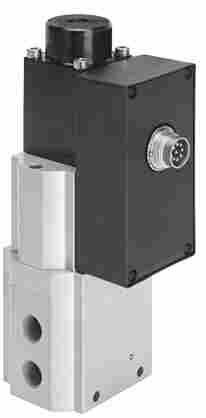

费斯托3位常闭比例减压阀,MPPES-3-1/8-6-010
安装类型 带通孔
气动连接, 气口 1 G1/8
气动连接, 气口 2 G1/8
气动连接, 气口 3 G1/8
外壳的材料信息 锻造铝合金
隔膜的材料信息 NBR
CE 符号 (参见符合的标准) 根据 EU-EMV 指导原则
耐腐蚀等级 CRC 2 – 中等腐蚀影响
介质温度 0 ... 60 °C
防护等级 IP65
环境温度 0 ... 50 °C
RCM Mark
产品重量 915 g
Valve terminal VTSA-ASI (555564)
Valve terminal VTSA-ASI-NPT (555565)
Valve terminal VTSA-F-ASI (555566)
Valve terminal VTSA-F-ASI-NPT (555567)
Valve terminal VTSA-FB (539217)
Valve terminal VTSA-FB-NPT (539218)
Valve terminal VTSA-F-FB (547965)
Valve terminal VTSA-F-FB-NPT (547966)
Valve terminal VTSA-F-MP (547963)
Valve terminal VTSA-F-MP-NPT (547964)
Valve terminal VTSA-MP (539215)
Valve terminal VTSA-MP-NPT (539216)
设计结构 直控式活塞调节器
短路强度 对于所有的电接口
安全操作指导 MPPES的安全位置
极性容错保护 对于所有的电接口
阀功能 3位常闭比例减压阀
压力控制范围 0 ... 6 bar
输入压力 1 7 ... 8 bar
大压力迟滞 0.01 bar
切换时间，关闭 280 ms
切换时间，打开 210 ms
工作电压范围 DC 18 ... 30 V
残余纹波 10 %
设定值/实际值 电压类型0 - 10 V
费斯托3位常闭比例减压阀,MPPES-3-1/8-6-010
AS-i module ASI-4DI3DO-M12X2-5POL-Z (542125)
AS-i module ASI-8DI-M8-3POL (542124)
Valve interface ASI-4DI2DO-2XMEB-Z (542127)
Valve interface ASI-4DI2DO-2XMF-Z (542126)
Valve interface ASI-4DI2DO-2XMZB9-Z (542128)
Electrical interface VABE-S6-1LF-C-A4-E (549042)
Electrical interface VABE-S6-1LF-C-A8-E (549043)
Multi-pin node VABE-S6-1LF-C-M1-R19 (543415)
Multi-pin node VABE-S6-1LT-C-M1-S37 (543414)
Multi-pin node VABE-S6-LT-C-S10-R5 (549047)
Multi-pin node VABE-S6-LT-C-S6-R5 (549046)
Valve terminal VTSA-ASI (555564)
Valve terminal VTSA-ASI-NPT (555565)
Valve terminal VTSA-F-ASI (555566)
Valve terminal VTSA-F-ASI-NPT (555567)
Valve terminal VTSA-F-MP (547963)
Valve terminal VTSA-F-MP-NPT (547964)
Valve terminal VTSA-MP (539215)
Valve terminal VTSA-MP-NPT (539216)
Valve terminal VTSA-F-ASI (555566)
Valve terminal VTSA-F-ASI-NPT (555567)
Valve terminal VTSA-F-FB (547965)
Valve terminal VTSA-F-FB-NPT (547966)
Valve terminal VTSA-F-MP (547963)
Valve terminal VTSA-F-MP-NPT (547964)
Manifold rail VABM-B6-E-G12-10-M1 (537621)
Manifold rail VABM-B6-E-G12-12-M1 (537622)
Manifold rail VABM-B6-E-G12-4-M1 (537618)
Manifold rail VABM-B6-E-G12-6-M1 (537619)
Manifold rail VABM-B6-E-G12-8-M1 (537620)
Manifold rail VABM-B6-E-N12-10 (570729)
Manifold rail VABM-B6-E-N12-10-M1 (568184)
Manifold rail VABM-B6-E-N12-2 (570725)
Manifold rail VABM-B6-E-N12-4 (570726)
Manifold rail VABM-B6-E-N12-4-M1 (568181)
Manifold rail VABM-B6-E-N12-6 (570727)
Manifold rail VABM-B6-E-N12-6-M1 (568182)
Manifold rail VABM-B6-E-N12-8 (570728)
Manifold rail VABM-B6-E-N12-8-M1 (568183)
Valve terminal VTUB (537662)
Manifold rail VABM-C8-12E-G14-10-M1 (557659)
Manifold rail VABM-C8-12E-G14-10-M1-L (1361869)
Manifold rail VABM-C8-12E-G14-12-M1 (557661)
Manifold rail VABM-C8-12E-G14-12-M1-L (1361870)
Manifold rail VABM-C8-12E-G14-14-M1 (557663)
Manifold rail VABM-C8-12E-G14-14-M1-L (1361871)
Manifold rail VABM-C8-12E-G14-16-M1 (557665)
Manifold rail VABM-C8-12E-G14-16-M1-L (1361873)
Manifold rail VABM-C8-12E-G14-18-M1 (557667)
Manifold rail VABM-C8-12E-G14-18-M1-L (1361874)
Manifold rail VABM-C8-12E-G14-20-M1 (557669)
Manifold rail VABM-C8-12E-G14-20-M1-L (1361875)
Manifold rail VABM-C8-12E-G14-24-M1 (557673)
Manifold rail VABM-C8-12E-G14-24-M1-L (1361876)
Manifold rail VABM-C8-12E-G14-28-M1 (557677)
Manifold rail VABM-C8-12E-G14-28-M1-L (1361877)
Manifold rail VABM-C8-12E-G14-2-M1 (557651)
Manifold rail VABM-C8-12E-G14-2-M1-L (1361863)
Manifold rail VABM-C8-12E-G14-32-M1 (557681)
Manifold rail VABM-C8-12E-G14-32-M1-L (1361878)
Manifold rail VABM-C8-12E-G14-35-M1 (557684)
Manifold rail VABM-C8-12E-G14-35-M1-L (1361879)
Manifold rail VABM-C8-12E-G14-4-M1 (557653)
Manifold rail VABM-C8-12E-G14-4-M1-L (1361865)
Manifold rail VABM-C8-12E-G14-6-M1 (557655)
Manifold rail VABM-C8-12E-G14-6-M1-L (1361867)
Manifold rail VABM-C8-12E-G14-8-M1 (557657)
Manifold rail VABM-C8-12E-G14-8-M1-L (1361868)
Valve terminal VTUB-12 (553983)
