FESTO摆动驱动器资料下载,DAPS-5760-090-R-F25
耐腐蚀等级 CRC 3 – 强腐蚀影响
额定工作压力以及 0°旋转角度时的扭矩 5,760 Nm
额定工作压力以及 50°摆角时的扭矩 2,880 Nm
额定工作压力以及 90°摆角时的扭矩 4,320 Nm
关于扭矩的注意事项 驱动器的运行扭矩，不可过ISO 5211中针对安装法兰和耦合装置所规定的大许用扭矩。
6 bar时，每循环 0?90?0 的空气消耗 266 l
产品重量 86,000 g
主轴连接 V55
气动连接 G3/8
材料备注 符合 RoHS
盖子的材料信息 锻造铝合金

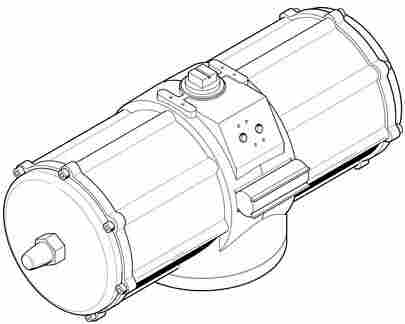

摆动驱动器DAPS-5760-090-R-F25
产品代号: 549672
双作用, Namur 阀, 非直接法兰安装方式
外壳的材料信息 锻造铝合金
螺钉的材料数据 高合金钢
驱动轴的材料信息 高合金钢
主轴的材料编号 1.4305
工作压力 1 ... 8.4 bar
额定工作气压 5.6 bar
ATEX 类气体 II 2G
燃爆防护型气体 c TX X
ATEX 类粉尘 II 2D
燃爆防护型粉尘 c TX X
符合防爆要求的环境温度 -20°C <= Ta <= +60°C
环境温度 -20 ... 80 °C
驱动器尺寸 5760
法兰孔的样式 F25
摆动角度 90 deg
0°时的终端位置调节范围 -5 ... 5 deg
90°时的终端位置调节范围 85 ... 95 deg
主轴连接深度 58 mm
连接件接口符合标准 ISO 5211
缓冲 无缓冲
装配位置 任意
工作模式 双作用
设计结构 Yoke 动力学
位置检测 无
关闭方向 向右关闭
阀的接口符合标准 VDI/VDE 3845 (NAMUR)
安全性能等级 (SIL) 高至SIL 2 高要求模式
产品可用于SRP/CS 直至低要求的SIL 2
