TX4-100
红外温度测量仪器 » 固定架红外测温仪/发射器 » OS550 Series - See the NEW OS550A Series
工业非接触式红外温度计/变送器，带本地显示屏和模拟输出
2年保修CEOmegaCare
Accuracy ±1% of Reading
Models with Temperature Ranges Measuring up to 2500°F (1370°C)
Current,Voltage or Millivolt Output
Laser Sight Optional
°C/°F Keypad Selectable
Local Backlit LCD Display Standard
Dual Display Indicates Current plus Min, Max, Average or Differential Temperatures on Most Models
Visual and Audible High/Low Alarm
Emissivity Adjustable from 0.1 to 1.00 in 0.01 steps via the Programmable Keypad
Fast 250 msec response time
Complete NEMA-4 System
RS-232 Communication
Safe and Easy to Install
产品描述
The OS550 has been superseded. Please refer to the OS550A for the newest model version.

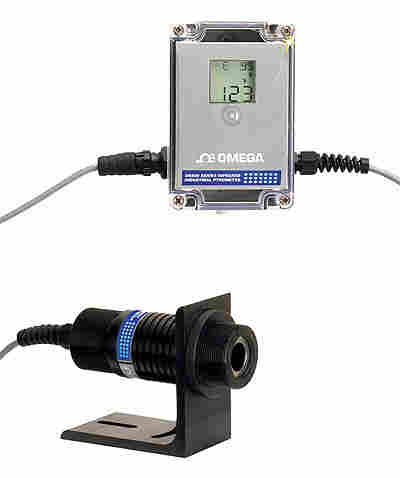

OMEGA’s OS550 Series industrial, high performance, economical thermometer/transmitter offers a wide choice of temperature ranges, optical patterns or fields of view and three outputs (1 mV/ degree, 4-20 mA, and 0-5 Vdc) to feed directly into panel meters, recorders, temperature/process controllers, dataloggers, data acquisition systems or other process instrumentation. Since the OS550 Series infrared thermometers do not use chopper motors or vibrator mechanisms, they can be mounted in any position and in hostile environments without suffering any loss in performance. This rugged design coupled with their relatively small dimensions make these sensors ideally suited for a wide variety of applications.
Example of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
For complete product specifications see the detailed data sheet in the related section below.
产品编号 产品描述
Accessories
OS550-AP Air purge collar
OS550-WC Air/water cooling jacket
OS550-MF Mounting
OS550-MB Right-angle mounting bracket
OS550-MN Mounting nut
OS550-LS Sighting viewer (laser) *
CAL-3-IR NIST Calibration Certification
PSS-12 12 Vdc Regulated Power Supply
PSU-93 Unregulated 16-24 Vdc Power Supply
OS550-AP
OS550-LS
OS550-LS/N
OS550-MB
OS550-MF
OS550-MN
OS550-WC
OS550A-PCAB-100
OS550A-PCAB-15
TX4-100
美国Omega TX4-100
