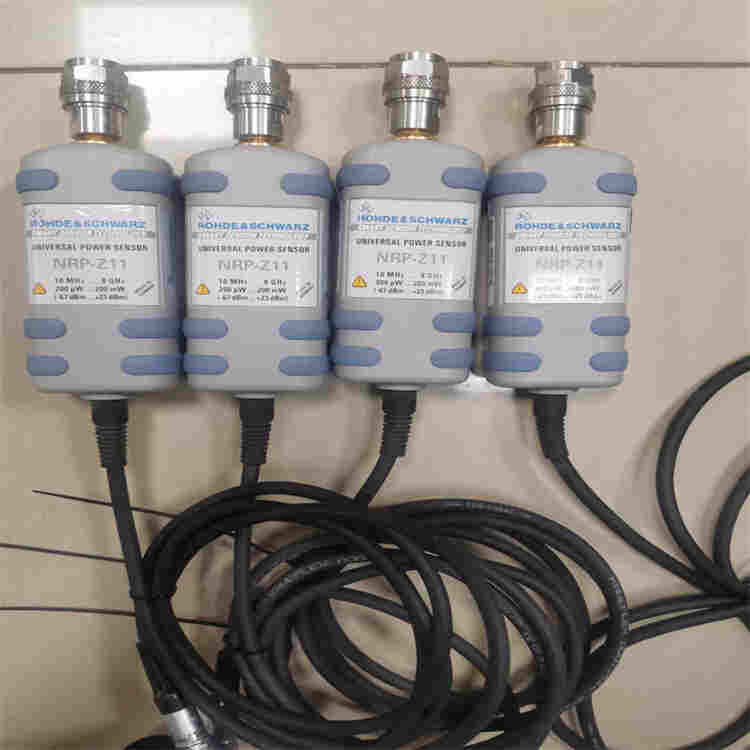

罗德施瓦茨NRP-Z11功率探头操作说明
USB时域分析和脉冲分析功率传感器:
NRP-Z81 频率范围:50MHz - 18 GHz 功率范围:-60 dBm to +20 dBm.
NRP-Z85 频率范围:50MHz - 40 GHz 功率范围:-60 dBm to +20 dBm.
NRP-Z86 频率范围:50MHz - 40 GHz 功率范围:-60 dBm to +20 dBm.
NRP-Z86.44 频率范围:50MHz - 44 GHz 功率范围:-60 dBm to +20 dBm.
功率探头模块:
NRP-Z27 频率范围:DC - 18 GHz 功率范围:-24 dBm to +26 dBm.
NRP-Z37 频率范围:DC - 26.5 GHz 功率范围:-24 dBm to +26 dBm.
电平控制探头:
NRP-Z28 频率范围:10MHz - 18 GHz 功率范围:-67 dBm to +20 dBm.
NRP-Z98 频率范围:9KHz - 6 GHz 功率范围:-67 dBm to +20 dBm.
EMC功率传感器:
NRP-Z91频率范围:9KHz - 6 GHz 功率范围:-57 dBm to +33dBm.
NRP-Z92频率范围:9KHz - 6 GHz 功率范围:-57 dBm to +33dBm.
大功率三路二极管功率传感器:
NRP18S-10频率范围:10MHz - 18 GHz 功率范围:-60 dBm to +33dBm.
NRP18S-20频率范围:10MHz - 18 GHz 功率范围:-50 dBm to +42dBm.
NRP18S-25频率范围:10MHz - 18 GHz 功率范围:-45 dBm to +45dBm.
三通道二极管功率探头:
NRP8S/NRP8SN频率范围:10MHz - 8 GHz 功率范围:-70 dBm to +23dBm.
NRP18S/NRP18SN频率范围:10MHz - 18 GHz 功率范围:-70 dBm to +23dBm.
NRP33S/NRP33SN频率范围:10MHz - 33 GHz 功率范围:-70 dBm to +23dBm.
NRP40S/NRP40SN频率范围:50MHz - 40 GHz 功率范围:-70 dBm to +20dBm.
NRP50S/NRP50SN频率范围:50MHz - 50 GHz 功率范围:-70 dBm to +20dBm.
EMC 应用而设计功率传感器:
NRP6A/AN频率范围:8KHz - 6 GHz 功率范围:-70 dBm to +23dBm.
NRP18A/AN频率范围:8KHz - 18 GHz 功率范围:-70 dBm to +23dBm.
热功率探头:
NRP18T频率范围:DC 至 18 GHz 功率范围:-35 dBm to +20dBm.
NRP33T频率范围:DC 至 33 GHz 功率范围:-35 dBm to +20dBm.
NRP40T频率范围:DC 至 40 GHz 功率范围:-35 dBm to +20dBm.
NRP50T频率范围:DC 至 50 GHz 功率范围:-35 dBm to +20dBm.
NRP67T频率范围:DC 至 67 GHz 功率范围:-35 dBm to +20dBm.
NRP90T频率范围:DC 至 90 GHz 功率范围:-35 dBm to +20dBm.
NRP110T频率范围:DC 至 110 GHz 功率范围:-35 dBm to +20dBm.
NRP18TN频率范围:DC 至 18 GHz 功率范围:-35 dBm to +20dBm.(LAN)
NRP33TN频率范围:DC 至 33 GHz 功率范围:-35 dBm to +20dBm.(LAN)
NRP40TN频率范围:DC 至 40 GHz 功率范围:-35 dBm to +20dBm.(LAN)
NRP50TN频率范围:DC 至 50 GHz 功率范围:-35 dBm to +20dBm.(LAN)
NRP67TN频率范围:DC 至 67 GHz 功率范围:-35 dBm to +20dBm.(LAN)
NRP90TN频率范围:DC 至 90 GHz 功率范围:-35 dBm to +20dBm.(LAN)
NRP75TGW频率范围:DC 至 75 GHz 功率范围:-35 dBm to +20dBm.
NRP90TGW频率范围:DC 至 90GHz 功率范围:-35 dBm to +20dBm.
NRP110TGW频率范围:DC 至 110 GHz 功率范围:-35 dBm to +20dBm.
