边墙式工厂用风机DWEX-450D4-0.25电源380V风量6500m3/h电量0.25KW
乐清市安宇防爆电气有限公司
销售经理：卓云（先生）
手机号/微信号：
公司座机：
公司Q Q: 2759418545
边墙式工厂用风机DWEX-450D4-0.25电源380V风量6500m3/h电量0.25KW参数
产品型号 | 风量m3/h | 静压Pa | 电压V | 频率Hz | 功率W | 电流A | 转速rpm | 电容μF |
BDWEX-250D4 | 1700m3/h | 50PA | 380 | 50 | 60W | 0.15 | 1420 | — |
BDWEX-250E4 | 1500m3/h | 50pa | 220 | 50 | 60W | 0.25 | 1350 | 2 |
BDWEX-300D4 | 1800m3/h | 50pa | 380 | 50 | 80W | 0.20 | 1400 | — |
BDWEX-300E4 | 1600m3/h | 50pa | 220 | 50 | 80W | 0.37 | 1380 | 3 |
BDWEX-350D4 | 2800m3/h | 50pa | 380 | 50 | 125W | 0.35 | 1380 | — |
BDWEX-350E4 | 2200m3/h | 50pa | 220 | 50 | 125W | 0.53 | 1360 | 4 |
BDWEX-400D4 | 3800m3/h | 45pa | 380 | 50 | 180W | 0.40 | 1400 | — |
BDWEX-400E4 | 3600m3/h | 50pa | 220 | 50 | 180W | 0.8 | 1400 | 6 |
BDWEX-450D4 | 6500m3/h | 50pa | 380 | 50 | 250W | 0.52 | 1350 | — |
BDWEX-450E4 | 6300m3/h | 50pa | 220 | 50 | 250W | 1.15 | 1360 | 8 |
BDWEX-500D4 | 7800m3/h | 50pa | 380 | 50 | 370W | 0.7 | 1350 | — |
BDWEX-500E4 | 7600m3/h | 50pa | 220 | 50 | 370W | 1.75 | 1200 | 12 |
BDWEX-550D4 | 9300m3/h | 50pa | 380 | 50 | 550WW | 1.2 | 1300 | — |
BDWEX-550E4 | 8300m3/h | 50pa | 220 | 50 | 550W | 2.1 | 1180 | 10 |
BDWEX-600D4 | 12500m3/h | 100pa | 380 | 50 | 750W | 1.6 | 1380 | — |
BDWEX-650D4 | 16500m3/h | 100pa | 380 | 50 | 1900W | 3.5 | 1350 | — |
BDWEX-700D6 | 13000m3/h | 50pa | 380 | 50 | 1000W | 2.3 | 920 | — |
BDWEX-750D6 | 16200m3/h | 50pa | 380 | 50 | 1200W | 3.2 | 910 | — |
BDWEX-800D6 | 23000m3/h | 75pa | 380 | 50 | 1400W | 3.4 | 940 | — |
BDWEX-900D6 | 25000m3/h | 75pa | 380 | 50 | 1600W | 3.2 | 940 | — |

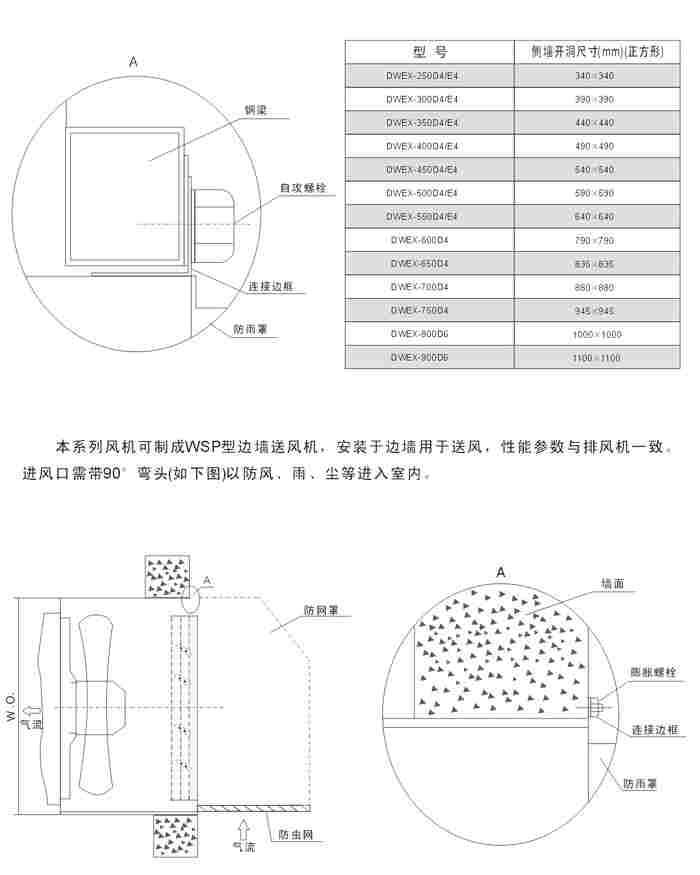

边墙式工厂用风机DWEX-450D4-0.25电源380V风量6500m3/h电量0.25KW外形尺寸
产品型号 | A | L1 | L2 | B | 产品型号 | 侧墙开洞尺寸mm （正方形） | |
BDWEX-250D4/E4 | 320 | 200 | 295 | 290 | BWEXD-250D4/E4 | 340×340 | |
BDWEX-300D4/E4 | 370 | 200 | 325 | 340 | BWEXD-300D4/E4 | 390×390 | |
BDWEX-350D4/E4 | 420 | 240 | 360 | 390 | BWEXD-350D4/E4 | 440×440 | |
BDWEX-400D4/E4 | 470 | 260 | 400 | 440 | BWEXD-400D4/E4 | 490×490 | |
BDWEX-450D4/E4 | 520 | 260 | 430 | 490 | BWEXD-450D4/E4 | 540×540 | |
BDWEX-500D4/E4 | 570 | 260 | 470 | 540 | BWEXD-500D4/E4 | 590×590 | |
BDWEX-550D4/E4 | 620 | 280 | 495 | 590 | BWEXD-550D4/E4 | 640×640 | |
BDWEX-600D4 | 765 | 400 | 590 | 735 | BWEXD-600D4 | 790×790 | |
BDWEX-650D4 | 810 | 450 | 615 | 780 | BWEXD-650D4 | 835×835 | |
BDWEX-700D6 | 855 | 460 | 635 | 825 | BWEXD-700D6 | 880×880 | |
BDWEX-800D6 | 972 | 500 | 705 | 945 | BWEXD-800D6 | 1000×1000 | |
BDWEX-900D6 | 1075 | 500 | 755 | 1045 | BWEXD-900D6 | 1100×1100 |
