HX94BCNPT
相对湿度测量仪器 » 湿度和湿度/温度变送器, 信号调节器 » HX94B

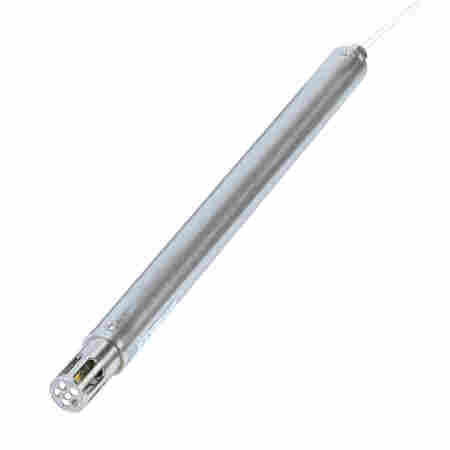

Relative Humidity/Ambient Temperature Transmitters
HX94B
RoHS Certified
Accurate to ±2.5% Relative Humidity and ±0.6°C (±1°F) Temperature
Two Separate Analog Outputs, Humidity and Temperature
Four Analog Outputs available, 4 to 20 mA, 0 to 1V, 0 to 5V, 0 to 10V
Stainless Steel NEMA 4 (IP66) Enclosure
Three Different Output Connection Styles Available
Includes Hardware for Wall and Duct Mounting
Removable Stainless Steel Sensor Cap
产品描述
The OMEGA® HX94B Series temperature/relative humidity transmitter provides a linearized and temperature compensated output signal of 4 to 20 mA, 0 to 1 Vdc, 0 to 5 Vdc or 0 to 10 Vdc depending upon the model selected for both temperature/relative humidity measurement. The output signals have been calibrated and scaled to 0 to 100°C for temperature and 0 to for relative humidity. The digital temperature and relative humidity sensor is protected by a stainless steel cap that is easily removed for cleaning. The NEMA 4 stainless steel enclosure and cable entry connection provides weather tight protection. The stainless steel enclosure terminates to a 6 feet shielded cable. The cable end is either stripped leads or terminates to a 4-pin connector.
Specifications
Temperature
Measuring Range: 0 to 100°C (32°F to 212°F)
Accuracy: ±0.6°C from 0 to 50°C (32 to 122°F), ±1.25°C from 50 to 100°C (122 to 212°F)
Repeatability: ±0.2°C (0.4°F)
Response Time: 5 seconds minimum, 30 seconds maximum
Sample Rate: 1 sample every 4 seconds
Relative Humidity
Measuring Range: 0 to RH
Accuracy: ±2.5 % from 20 to 80% RH, ±3.5% from 5 to 20% and 80 to 95% RH, ±4% from 0 to 5% and 95 to RH
Hysteresis: ±1%RH
Repeatability: ±0.1%RH
Response Time: 8 seconds typical
Sample Rate: 1 sample every 4 seconds
Operating Temperature Range: 0 to 100°C (32 to 212°F)
Analog Outputs for Temperature and Humidity: 4 to 20 mA, 0 to 1V, 0 to 5V, 0 to 10V
Input Power Supply: 9 to 30 Vdc @ 100 mA: 4 to 20 mA, 0 to 1V, 0 to 5V output, 12 to 30 Vdc @ 100 mA: 0 to 10V output
Max Current Loop Resistance: Ω = [(V supply - 4V)/0.02A)] -50; 200Ω @ 9V supply or 1250Ω @ 30V supply
Max Load Resistance: 1.25K (for all voltage outputs)
Sensor Type: Digital sensor
Enclosure Housing: 316 stainless steel, NEMA 4; non-NPT version includes IP68-rated cable gland
Electrical Connections:
HX94B**W, HX94B**NPT: 1.8 m (6') 4 conductor PTFE shielded cable with stripped leads termination
HX94B**: 1.8 m (6') 4 conductor PTFE shielded cable with a 4-pin connector termination; a 4-pin mating connector is included that accepts 18 to 26 AWG wire
Dimensions: 258 L x ø19 mm OD (10.15 x 0.75")
Weight: 200 g (7 oz) with mounting kit
注: Comes complete with mating connector (models HX94BC, HX94BV0, HX94BV1, HX94BV2 only), removable stainless steel cap, removable duct flange, wall mounting kit, and quick start manual.
产品编号 产品描述
HX94BC Relative humidity/temperature transmitter (4 to 20 mA output) with 4-pin connector
HX94BV0 Relative humidity/temperature transmitter (0 to 1 Vdc output) with 4-pin connector
HX94BV1 Relative humidity/temperature transmitter (0 to 5 Vdc output) with 4-pin connector
HX94BV2 Relative humidity/temperature transmitter (0 to 10 Vdc output) with 4-pin connector
HX94BCW Relative humidity/temperature transmitter (4 to 20 mA output) with 1.8 m (6') lead wires
HX94BV0W Relative humidity/temperature transmitter (0 to 1 Vdc output) with 1.8 m (6') lead wires
HX94BV1W Relative humidity/temperature transmitter (0 to 5 Vdc output) with 1.8 m (6') lead wires
HX94BV2W Relative humidity/temperature transmitter (0 to 10 Vdc output) with 1.8 m (6') lead wires
HX94BCNPT Relative humidity/temperature transmitter (4 to 20 mA output) with ½" male NPT fitting and 1.8 m (6') lead wires
HX94BV0NPT Relative humidity/temperature transmitter (0 to 1 Vdc output) with ½" male NPT fitting and 1.8 m (6') lead wires
HX94BV1NPT Relative humidity/temperature transmitter (0 to 5 Vdc output) with ½" male NPT fitting and 1.8 m (6') lead wires
HX94BV2NPT Relative humidity/temperature transmitter (0 to 10 Vdc output) with ½" male NPT fitting and 1.8 m (6') lead wires
