OS36-01-J-50F
温度 » 红外温度测量仪器 » 红外热电偶 » OS36-APC

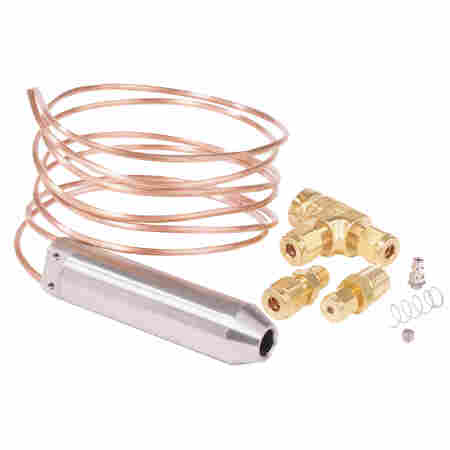

Cooling Jacket Kit for OS36 and OS36-2 Infrared Thermocouples
OS36-APC
Seamless Copper Monotube Cooling Coil
Complete Equipment for Air Cooling and/or Water Cooling
Air Purge Included
Super-Efficient Design for Low Air or Low Water Use
Water Cooling to 540°C (1000°F) with as Little as 0.05 gpm (190 cc/min)
产品描述
Extraordinarily efficient in design, the OS36-APC needs water flow rate of only 0.05 gpm (190 cc/min.) to protect an infrared thermocouple at 540°C (1000°F). This convenient and inexpensive kit makes it possible to use either the OS36 or OS36-2 with air, water or both for service in harsh environments. Measuring only 25 x 100 mm (4" x 1") overall, the OS36-APC is small enough to fit into tight areas to closely monitor process temperatures up close (in the optimum position). It can withstand the harshest environments with its all stainless steel housing.
产品编号 产品描述
OS36-APC Cooling jacket for OS36 and OS36-2 Series Infrared t/c
OS36-GMK Gooseneck mounting kit
OS36-MB2 Stainless steel mounting bracket for OS36-5, OS36-10, OS37-10, OS38-10, OS37-100 and OS38-100
产品型号
OS36-01-E-140F
OS36-01-E-180F
OS36-01-E-240F
OS36-01-E-240F-12FT
OS36-01-E-50F
OS36-01-E-80F
OS36-01-E-98.6F
OS36-01-J-140F
OS36-01-J-140F-OSTW
OS36-01-J-140F-SMPW
OS36-01-J-180F
OS36-01-J-180F-OSTW
OS36-01-J-180F-SMPW
OS36-01-J-240F
OS36-01-J-240F-50FT
OS36-01-J-240F-SMPW
OS36-01-J-280F
OS36-01-J-280F-12 FT
OS36-01-J-280F-OSTW
OS36-01-J-280F-SMPW
OS36-01-J-340F
OS36-01-J-440F
OS36-01-J-50F
OS36-01-J-50F-SMPW
OS36-01-J-80F
OS36-01-J-80F-SMPW
OS36-01-J-98.6F
OS36-01-K-140F
OS36-01-K-140F-OSTW
OS36-01-K-140F-SMPW
OS36-01-K-180F
OS36-01-K-180F-OSTW
OS36-01-K-180F-SMPW
OS36-01-K-240F
OS36-01-K-240F-OSTW
OS36-01-K-240F-SMPW
OS36-01-K-280F
OS36-01-K-280F-GMP
OS36-01-K-280F-SMPW
OS36-01-K-340F
OS36-01-K-340F-SMPW
OS36-01-K-440F
OS36-01-K-440F-SMP
OS36-01-K-440F-SMPW
OS36-01-K-50F
OS36-01-K-50F-SMPW
OS36-01-K-80F
OS36-01-K-80F-GMP
OS36-01-K-80F-OSTW
OS36-01-K-80F-SMPW
OS36-01-K-98.6F
OS36-01-K-98.6F-GMP
OS36-01-K-98.6F-SMPW
OS36-01-T-140F
OS36-01-T-180F
OS36-01-T-180F-OSTW
OS36-01-T-180F-SMP
OS36-01-T-240F
OS36-01-T-280F
OS36-01-T-340F
OS36-01-T-440F
OS36-01-T-50F
OS36-01-T-50F-OSTW
OS36-01-T-80F
OS36-01-T-80F-GMP
OS36-01-T-80F-OSTW
OS36-01-T-98.6F
OS36-10-K-140F
OS36-10-K-140F-10FT
OS36-10-K-140F-GMP
OS36-01-J-50F
OS36-01-J-50F
