RD3020-02
温度 » 记录器 » Y-X图表记录仪 » RD3020 Series
High Performance X-Y Recorders Discontinued Product
1年保修
Fast Pen Response, Slewing Speed of 2200 mm/sec (86.6 in/sec) in the Y-Axis, 2000 mm/sec (78.7 in/sec) in the X-Axis
High Acceleration, 7.6 G in the Y-Axis and 5.1 G in the X-Axis (One-Pen Model)
±0.2% Accuracy (RD3023/24), ±0.25% Accuracy (RD3025) 50 µV/cm Max Sensitivity
50 µV/cm Max Sensitivity
Trouble-Free Electrostatic er Hold Down with Back-Lighted LED for Accurate er Alignment
10 Scales of Calibrated Offset (Std), 16 Speeds of Time Base (Standard on RD3023/24, Optional for RD3025)
Remote Control of Sweep Start and Reset, and Pen Lift by External Contact or TTL Level Signals
产品描述

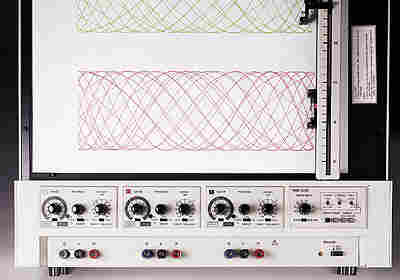

The RD3023/3024/3025 Series recorders are fast, high-performance X-Y recorders, available in either 1- or 2-pen models. The RD3023/3024 are size A3 X-Y recorders, and the RD3025 is an A4 X-Y recorder. These recorders offer high slewing speed and high acceleration. The slewing speed and acceleration of the 1-pen model in the Y-axis is 2200 mm/s (86.6 in/sec) 7.6 G, and 2000 mm/s (78.7 in/sec) 5.1 G in the X-axis (2-pen model is 7.0 G in the Y-axis and 4.5 G in the X-axis).
Excellent phase and frequency characteristics ensure precision recording of fast-changing signals. For optimal convenience, these recorders come with easy-to-use, felt-tip pen cartridges, a 10-position offset input dial, 16 speeds of internal time
The arrangement of controls on the front panel is neat and logical, including convenient servo ON/OFF polarity reversal switches, and preamplifiers separated from the input terminals for safety input wiring. The noise performance of these recorders is excellent, eliminating the low-pass filter switch.
SPECIFICATIONS
Drive System: Automatic null-balancing DC servo mechanism
Writing Area (Effective Recording Span):
RD3023/24: X-axis 381 mm (15"), Y-axis 254 mm (10")
RD3025: X-axis 254 mm (10"), Y-axis 180 mm (71⁄8")
Number of Pens:
RD3023-1/24-1/25-1: 1-pen
RD3023-2/24-2/25-2: 2-pen
Writing System: Ink writing using disposable felt-tip pen cartridges
Ink Colors: Red for 1st pen, green for 2nd pen
Basic Accuracy: ±0.2% (RD3023/24); ±0.25% (RD3025) of effective recording span (including non-linearity and deadband) at 23 ±5°C (73 ±9°F) on 50 mV/cm range
Error Between Ranges: Less than ±0.1% of pen deflection
Deadband: Less than 0.1% of effective recording span
Slewing Speed (Nominal): X-axis 2000 mm/s, Y-axis 2200 mm/s
Acceleration (Nominal):
One-pen models: X-axis 5.1 G, Y-axis 7.6 G
Two-pen models: X-axis 4.5 G, Y-axis 7.0 G
Pen Lift: All pens simultaneously lifted or lowered by PEN UP-DOWN switch on front panel, or by an external contact or TTL level signal
Chart er:
RD3023/24: A3-size graph er
RD3025: A4-size graph er
er Hold-Down: Electrostatic er hold-down with LED spot er alignment
Type of Input: Front (RD3023/25) or rear (RD3024) input, floating, guarded and shielded (polarity reversal switch on front panel)
Input Ranges: 50 µV/cm; 0.1, 0.25, 0.5, 1, 2.5, 5, 10, 25, 50 mV/cm; 0.1, 0.25, 0.5, 1, 2.5, 5 V/cm (16 calibrated ranges plus continuous vernier between ranges)
Zero Set: Adjustable to any point on the writing area
Input Impedance: Approx 1 MΩ constant on all input ranges
Maximum Source Resistance: 10 kΩ
Zero Stability (Nominal): ±(1.5 µV ±0.02% of effective recording span)/°C Maximum Allowable Input Voltage
(Continuous): 50 Vdc on 50 µV/cm to 50 mV/cm ranges, or 250 Vdc on 0.1 V/cm to 5 V/cm ranges
Maximum Common Mode Voltage:
RD3023/25: 250 Vrms AC, or 350 Vdc
RD3024: 130 Vrms AC, or 180 Vdc
Common Mode Rejection: More than 140 dB at power line frequency or at DC
Normal Mode Rejection: More than 50 dB
Offset Input: Selectable to ±20, 40, 60, 80, 100 cm (±7.87, 15.7, 23.6, 31.5, 39.4 in) (10 ranges) or 0 (OFF) by frontpanel dial
Accuracy of Offset Input: ±0.2% of offset setting range Temperature Drift of Offset Input: ±100 ppm/°C
Time Base (Standard for RD3023/24,Optional for RD3025): Sweep rates 0.25, 0.5, 1, 2.5, 5, 10, 25, 50 s/cm and min/cm (1 cm = 0.3937 in) (accuracy ±0.5%); pens automatically lifted after sweep or reset; trial sweep available with pens lifted
Operating Position: Horizontal, vertical or inclined
Operating Temperature Range: 5 to 40°C (41 to 104°F)
Humidity Range: 40 to 80% relative humidity
Dielectric Strength: 1500 Vac (RD3023/25) or 1000 Vac (RD3024) for 1 minute between power line and case, and between input-guard terminals and case
Insulation Resistance: More than 100 MΩ at 500 Vdc between power line and case, and between input-guard terminals and case
Power Requirements: 100, 115, 200 or 230 Vac (must be specified), for both 50 and 60 Hz
Power Consumption (Approx):
RD3023/24-1: 210 VA max, 70 VA min
RD3023/24-2: 250 VA max, 80 VA min
RD3025-1: 180 VA max, 40 VA min
RD3025-2: 210 VA max, 50 VA min
Dimensions:
RD3023/24: 441 x 482 x 136 mm (17.4 x 19 x 5.4")
RD3025: 299 x 413 x 152 mm (113.4 x 161.4 x 6")
Weight:
RD3023/24-1: 17 kg (37.45 lb)
RD3023/24-2: 18 kg (39.6 lb)
RD3025-1: 13 kg (28.6 lb)
RD3025-2: 14 kg (30.8 lb)
产品编号 产品描述
RD3025-RP er, A4 size*, 100 sheets
RD3020-RP er, A3 size*, 100 sheets
RD3020-02 3 green pens (for channel 2)
RD3020-01 3 red pens (for channel 1)
