LDP6-CDC1C
大显示屏仪表
LDP63000
大显示屏仪表
Large 101 mm (4") LED Display Readable to 180'
Various Input Types Available
Alarms, Analog Outputs, and Communication
Custom Units Label with Backlight
Programmable User Inputs
Universal AC Powered
NEMA 4 (IP65)
Field Installable Output Cards (Optional)

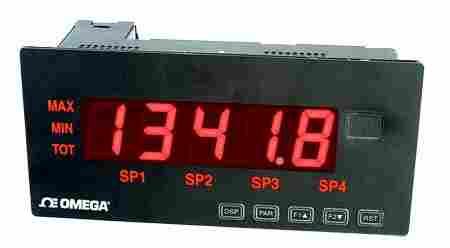

The LDP63100 Series is a versatile display that can increase productivity by offering the plant floor or production area a large visual display of their current status. Whether your measurement needs are for temperature, voltage, current or process information, the LDP63100 can satisfy your requirements. The LDP63100 accepts various analog inputs which allow the unit to adapt to most any application. Additional plug-in option cards add alarms, analog outputs, and communication/ bus capabilities, making the LDP63100 an “intelligent” panel meter. The unit has a large display, designed to be remotely mounted, therefore the unit does not have a programming keypad. Unit programming can be accomplished through the use of external switches that can be wired via the terminal block; a minimum of 3 switches is required. An optional programming remote option provides a 10' interconnecting cable and programming box. The remote buttons make programming the display easy.
注释: Sofware is free. Download from omega.com
Comes with complete operator’s manual.
Note: Adding option cards—meters can be fitted with up to 3 optional plug-in cards, however, only 1 card from each function type can be installed at a time. The function types include setpoint alarms, analog output and communications. The cards can be installed initially or at a later date. Each optional plug-in card is shipped with installation and programming instructions.
产品型号/产品描述
Display Meter Only, No Outputs
LDP63100-T Large display meter, temperature inputs, 85 to 250 Vac power
LDP63100-E Large display meter, process Inputs, 85 to 250 Vac power
LDP63100-DC Large display meter, universal DC inputs, 85 to 250 Vac power
LDP63100-AC Large display meter, true RMS AC voltage/current inputs, 85 to 250 Vac power
Optional Plug-in Output Cards (Field Installable)
Setpoint Alarms (Only 1 Alarm Card Can Be Installed Into Base Meter)
LDP6-CDS10 Dual setpoint relay output card
LDP6-CDS20 Quad setpoint relay output card
LDP6-CDS30 Quad setpoint sinking open collector output card
LDP6-CDS40 Quad setpoint sourcing open collector output card
Analog Output
LDP6-CDL10 Analog output card
Communications (Only 1 Communications Card Can Be Installed Into Base Meter)*
LDP6-CDC10 RS485 serial communications output card with terminal block
LDP6-CDC1C Extended RS485 serial communications output card with dual RJ11 connector
LDP6-CDC20 RS232 serial communications output card with terminal block
LDP6-CDC2C Extended RS232 serial communications output card with 9-pin D connector
LDP6-CDC40 MODBUS communications card
LDP6-CDC4C Extended MODBUS communications card with dual RJ11 connector
Accessories (Field Installable)
LDP6-PGM Programming remote for LDP63100 with 10' cable
LDP6-ENC12 NEMA 4 (IP65) enclosure
LDP631-SHR Shroud
LDP6-EN/SH NEMA 4 (IP65) enclosure and shroud
